DC6-36V 300mA NPN NO 4mm Noncontact Detection Inductive Proximity Sensor Switch

Shop All Unique-Bargains Products | Visit Unique Bargains Store

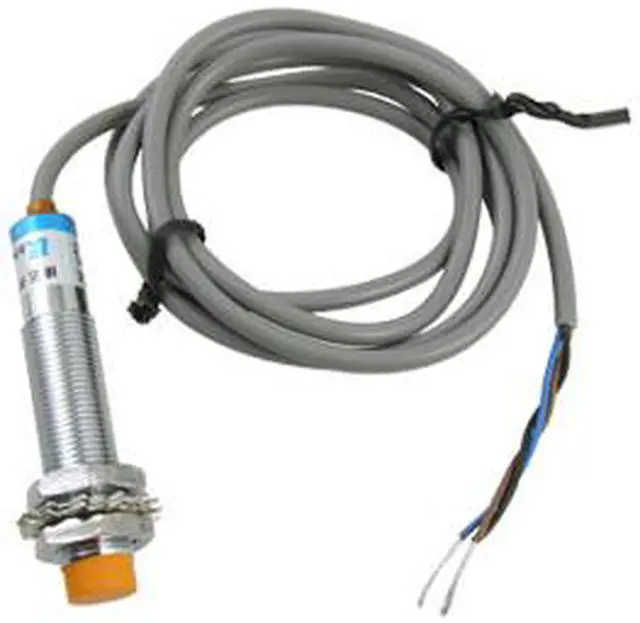

DC6-36V 300mA NPN NO 4mm Noncontact Detection Inductive Proximity Sensor Switch

Product Name : Inductive Proximity Switch;Model : LJ12A3-4-Z-BX;Wire Type : 3 Wire Type (Black, Brown, Blue);Switch Appearance Type : Cylinder Type
Theory : Inductive Sensor;Output Type : NPN NO(Normal Open);Thread Diameter : 11.8mm/0.46";Head Diameter : 10.4mm/0.41"
Detecting Distance : 4mm(+/-10%);Supply Voltage : DC 6-36V;Current Output : 300mA;Response Frequency : 150Hz
Detect Object : Iron;Operating Temperature : -25C to +55C (Non-freezing Condition);Size : 6.2 x 2cm/2.4'' x 0.8'' (L*Max. Dia);Cable Length : 110cm/43.3"
External Material : Plastic, Alloy;Net Weight : 44g;Color : Silver Tone, Yellow, Gray;Package Content : 1 x Inductive Proximity Switch

Overview

Specs

Reviews

It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching. When proximity switch is close to some target object, it will send out control signal.It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect.
