AUTENS Digital Multimeter DC 6.5-100V 0-100A LCD Display Ammeter Voltmeter Multimeter Volt Watt Power Energy Meter with 100A 75mV Shunt
- 4-in-1 DC Multimeter - with 1.0 grade measuring accuracy, it combines Voltage, Current, Power and Energy measurement in one combo, super compact and lightweight that can be portable and easily used
- Unique Voltage Alarm Function- the backlight and voltage value will flash simultaneously if the testing voltage is beyond alarm threshold (6-90V factory alarm value), and it can be set if needed
- Data Storage Design - it is designed to automatically storage the last testing data when suddenly powered off and the energy value can be reset by a short press after long pressing the function button for seconds

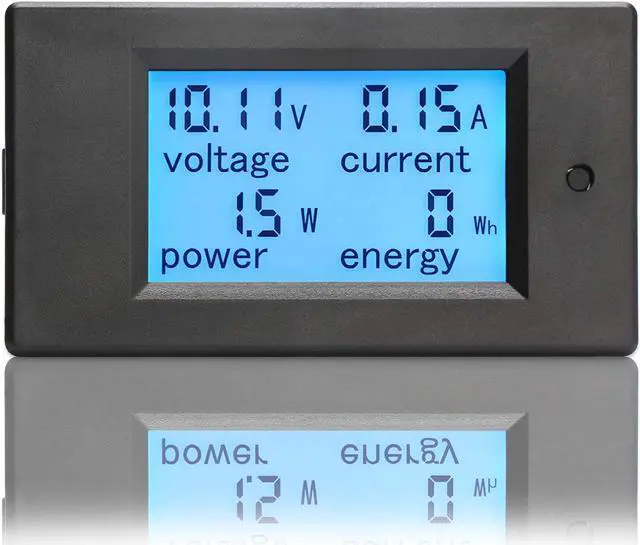

- Super Large Digital Display - 51x30mm easy reading LCD screen, clearly displays all testing figures at the same time, while the recessed button used to control the backlight, reset energy value, set voltage alarm threshold and choose measuring range
+
+
Overview
Specs
Reviews
AUTENS 4-in-1 DC Multimeter

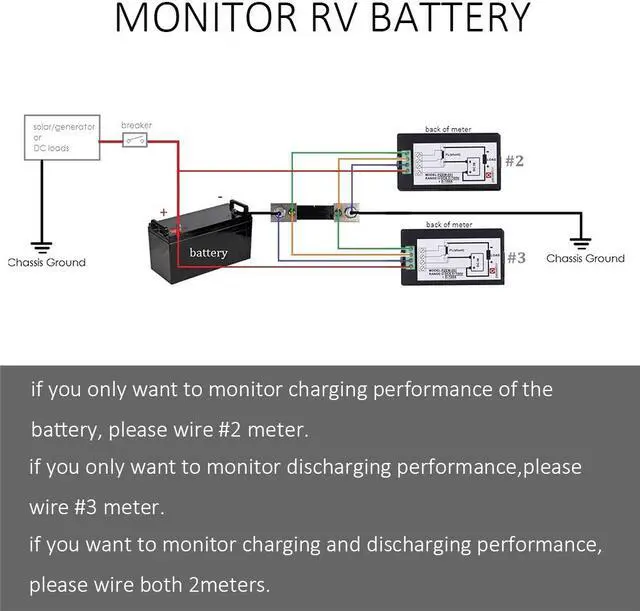

AUTENS DC multimeter is able to measure voltage, current, power and energy of most electrical devices (100A max.), which features high accuracy, low power consumption and easy reading large display. It also functions beyond voltage alarm, energy value reset, data storage, backlight control and measuring range option, suitable used for RV battery, voltage regulator, device detection and replacing various pointer-type electric meters.
Specification
Working Voltage: 6.5-100V/DC
Power Rating: 100A/10000W
Measuring Accuracy: 1.0 grade
Power Consumption: 0.2W
Measuring Speed: 2 times/s
Net Weight: 190g/0.42lb/6.70oz
Materials: LCD display + PC shell
Meter Dimensions: 9.0x5.0x2.4cm/3.5x2.0x0.9 in
Shunt Dimensions: 10.5x3.0x2.2cm/4.1x1.2x0.9 in
Display format:
1. Power: 0-10KW Test Range, within 1KW, 0.0-999.9W; 1KW and above, 1000-9999W
2. Energy: 0-9999KWh Test Range, within 10KWh, 0-9999Wh; 10KWh and above, 10-9999KWh
3. Voltage: 6.5-100V, it shows 6.50-99.99V
4. Current: 0-100A, it shows 0.00-99.99A
Notices:

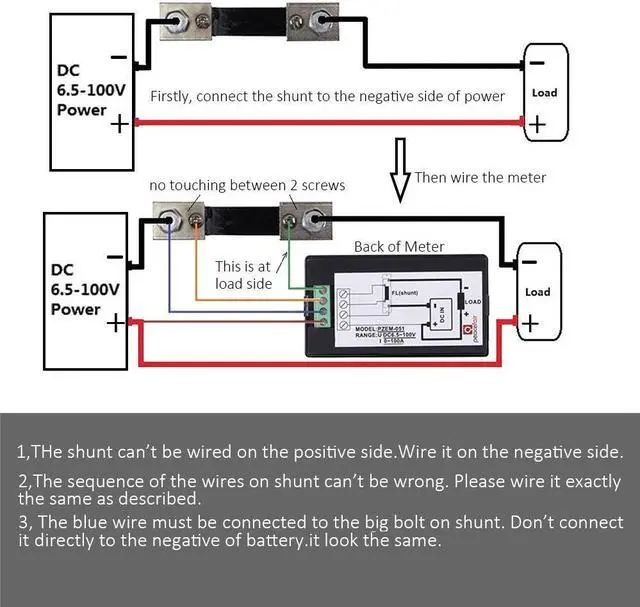

1. Wiring order cannot be wrong.
2. This meter is suitable for indoor use ONLY.
3. Applied load should not exceed the rated power or current.
4. "Zero current" and "All 888s display" are mostly caused by wrong wiring.
5. Need a pointing tool to press the function button to prevent accidental touch.

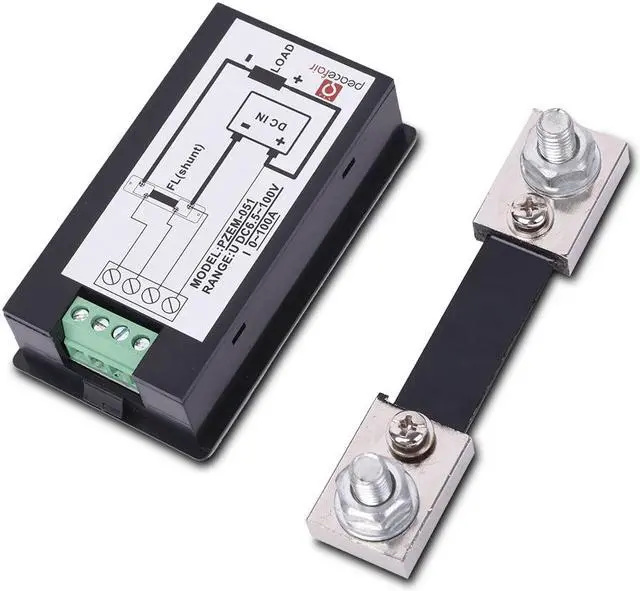

Package Included:
1x DC Digital Multimeter
1x 100A Current Shunt
AUTENS DC multimeter is able to measure voltage, current, power and energy of most electrical devices (100A max.), which features high accuracy, low power consumption and easy reading large display. It also functions beyond voltage alarm, energy value reset, data storage, backlight control and measuring range option, suitable used for RV battery, voltage regulator, device detection and replacing various pointer-type electric meters.
Specification
Working Voltage: 6.5-100V/DC
Power Rating: 100A/10000W
Measuring Accuracy: 1.0 grade
Power Consumption: 0.2W
Measuring Speed: 2 times/s
Net Weight: 190g/0.42lb/6.70oz
Materials: LCD display + PC shell
Meter Dimensions: 9.0x5.0x2.4cm/3.5x2.0x0.9 in
Shunt Dimensions: 10.5x3.0x2.2cm/4.1x1.2x0.9 in
Display format:
1. Power: 0-10KW Test Range, within 1KW, 0.0-999.9W; 1KW and above, 1000-9999W
2. Energy: 0-9999KWh Test Range, within 10KWh, 0-9999Wh; 10KWh and above, 10-9999KWh
3. Voltage: 6.5-100V, it shows 6.50-99.99V
4. Current: 0-100A, it shows 0.00-99.99A
Notices:
1. Wiring order cannot be wrong.
2. This meter is suitable for indoor use ONLY.
3. Applied load should not exceed the rated power or current.
4. "Zero current" and "All 888s display" are mostly caused by wrong wiring.
5. Need a pointing tool to press the function button to prevent accidental touch.
Package Included:
1x DC Digital Multimeter
1x 100A Current Shunt
