AUTENS AC 80-260V 100A Digital Current Voltage Power Energy Analyzer Meter Ammeter Voltmeter with Open-Close Current Transformer Split Core CT

This meter can only be used with one-phase AC power. And it can only measure the active power(real power). It doesn't show Apparent power. For more information about the difference, please search AC POWER on wikipedia.

Main Specifications:

Working voltage: 80 ~ 260VAC
Working frequency: 50/60Hz
Measuring Accuracy: 1%
Power Consumption: 0.2W
Measurement speed: 2 times/s
Store data when power off.
The blue backlight can be turned on/off manually

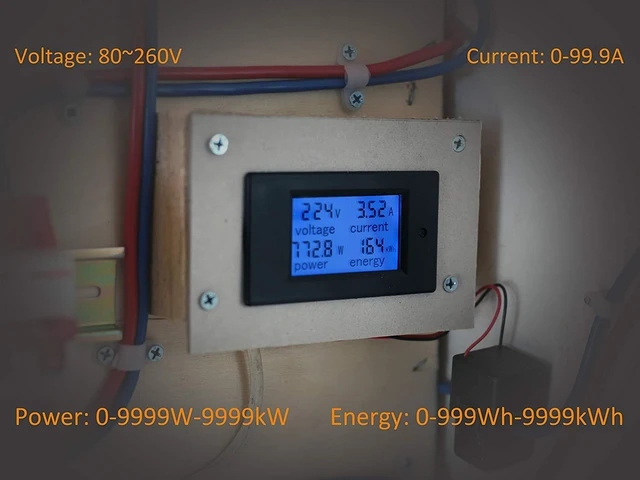

Test Range:

1. Power test range: 0~22kW
2. Energy test range: 0~9999kWh
3. Voltage test range: 80~260V(single-phase)
4. Current test range: 0~ 100A

Cautions

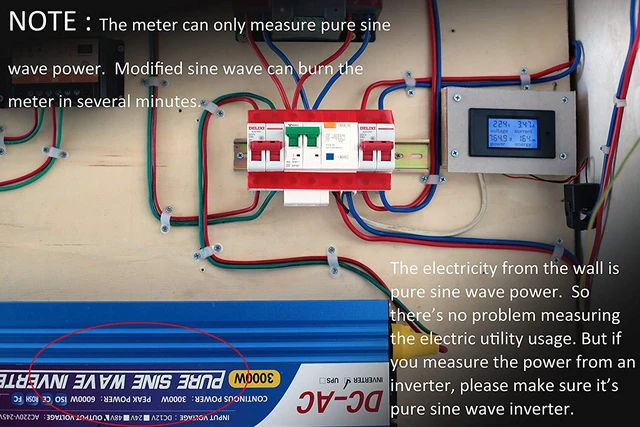

1. Please make sure the AC input is Pure Sine Wave.(Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converterd from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave. This is very importatnt.
2. Applied load should not exceed the rated power.

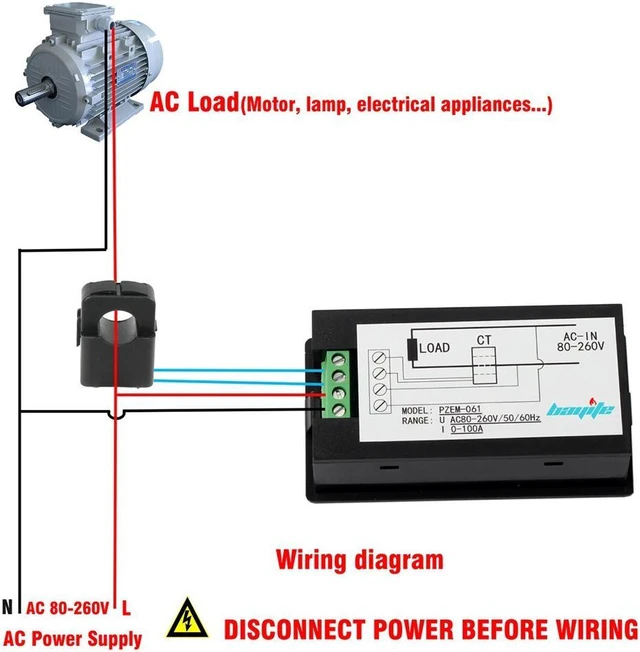

3. Wiring order can not be wrong.
4. This module is suitable for indoor applications, please do not use outdoors.

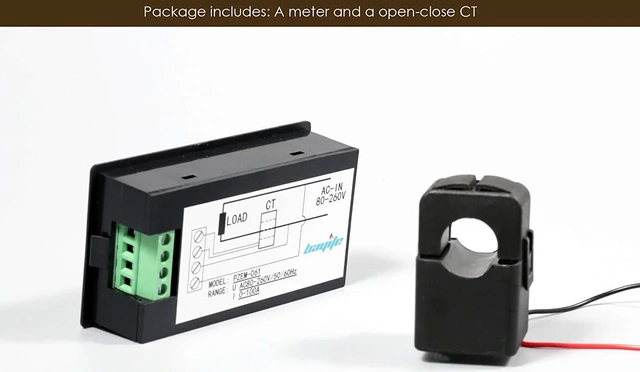

Package includes:
1x AC Power Multimeter

Warranty:
1-year free replacement or full refund without return.
If the item you have received is defective in any way, please message us for free replacement or a full refund without return.
