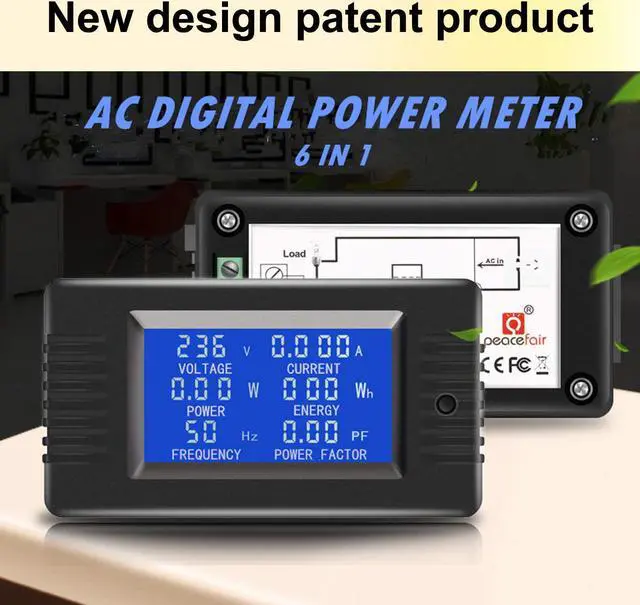

AUTENS AC Digital Meter AC 80-260V 100A Current Voltage Power Energy Panel Monitor (AC 100A Meter with Coil CT)

Features:

1. Electrical parameter measurement function: Voltage, Current, Active Power, Energy, Frequency, Power Factor.

2. Overload alarm function: backlight and power are flashing to alarm if it is over power alarm threshold.

3. Power alarm threshold preset function: alarm value can be set by youself.

4. Backlight on/off function: short press the key to turn on or off the backlight, backlight has memory function.

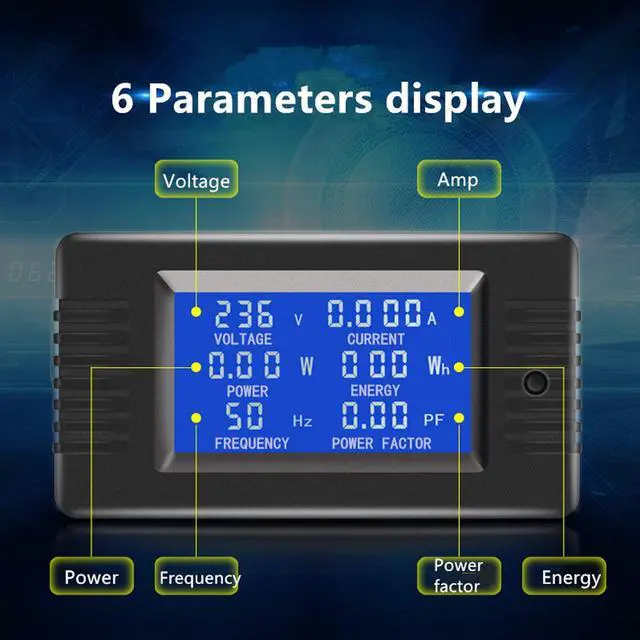

5. Large-screen LCD: it can display six parameters clearly at the same time.

Measuring Range:

Voltage: 80~260VAC

Current: 0~100A

Power: 0~22000W

Energy: 0~999kWh

Frequency: 45~65Hz

Power Factor: 0~1PF

Specification Parameters:

Working Voltage: 80 ~ 260VAC

Voltage Test: 80 ~ 260VAC

Rated Power: 100A/22000W

Operating Frequency: 45/65Hz

Operating Temperature Range: 14?~140?/-10?~60?

Measurement Accuracy: 1%

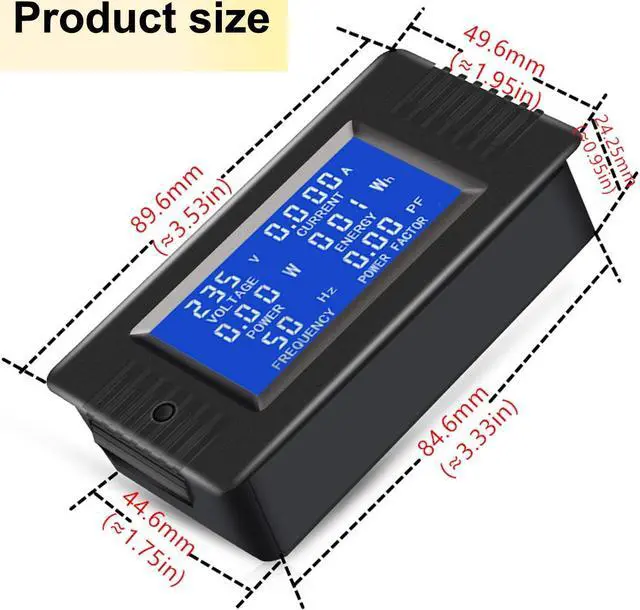

Dimension: 90x49.6x25mm/3.54x1.95x0.98 inch

Screen size: 51x30mm/2x1.18 inch

Note:

1. Please make sure the AC input is Pure Sine Wave. (Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converted from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave.

2. Applied load should not exceed the rated power.

3. Wiring order cannot be wrong.

4. This meter is used for single-phase power with one hot line and one neutral line. If you want to measure the circuit with 2 hot lines, you will need 2 meters, one for each line.

5. This module is suitable for indoor applications, please do not use outdoors.

Package:

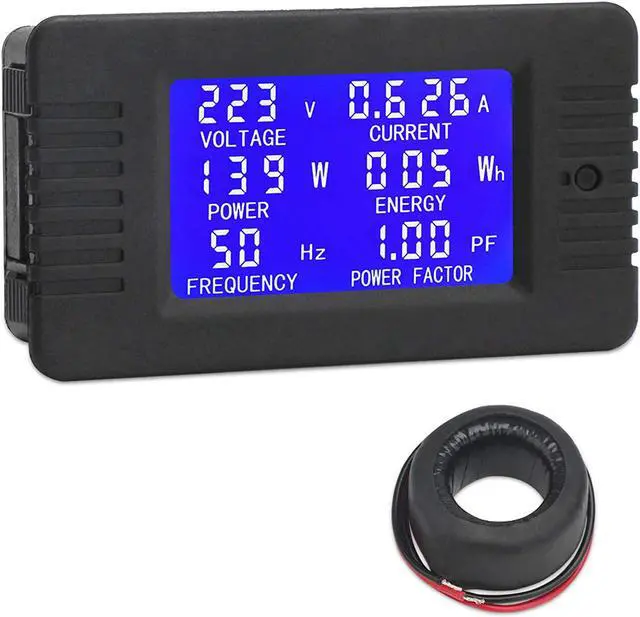

1x AC Digital Meter

1x 100A Coil Current Transformer
