    AUTENS DC Battery Monitor Meter with LCD Display,0-200V 0-300A Voltage Current Power Energy Impedance Resistance Capacity Multimeter Ammeter Voltmeter Digital Tester with 300A Shunt

    Be the first to review this product...

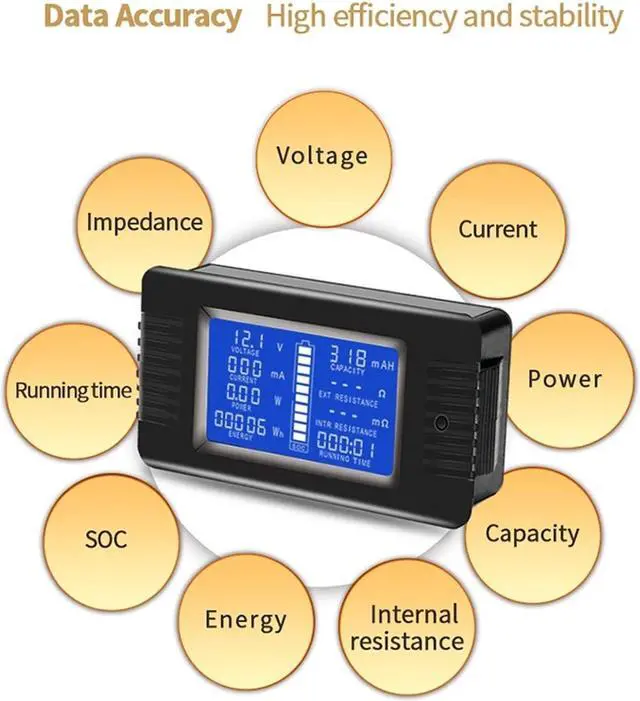

    • DC Multi-function Battery Tester. This tester has 9 functions, mainly used to test all kind's of battery's voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, running time, and display the measurement data through the LCD full display figure.
    • Applied to solar system/industrial assembly line/Automobile/RV etc, all kinds of batteries, pipeline testing, dc electrical appliances.
    • Note: the wiring order should not be wrong, the load should not exceed the rated power, the module is suitable for indoor use, not outdoor use.
    • Voltage range 0-200V(<8V requires external power supply). Current range 0-300A(use external shunt, can matched with 50A, 100A, 200A, 300A four kinds of shunt). Power range 0-60000W. Impedance range 0-1000O. Internal resistance range 0-999mO. Capacity range 0-1000AH. SOC displayed by the battery symbol, totally 10 grids, each grid represents 10% of electricity.
    +
    +
    Overview
    Specs
    Reviews

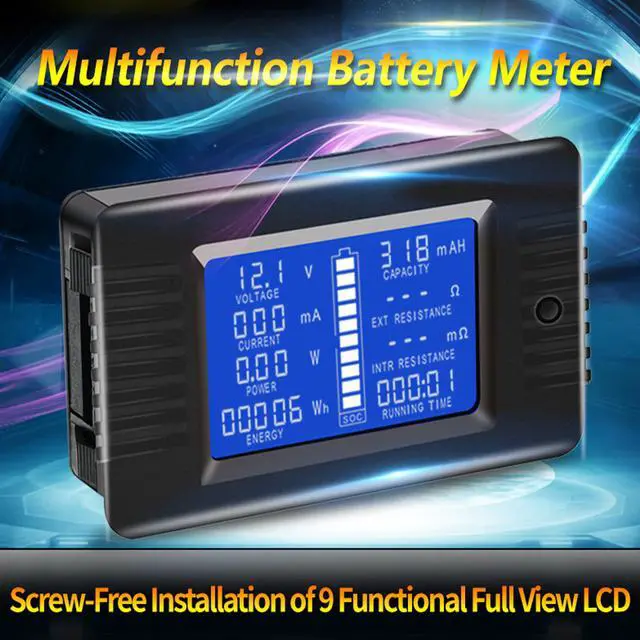

    AUTENS Multifunction Battery Monitor Meter

    Voltage


    Measure range: 0-200V
    Display: <10V, display 9.99V; <100V, display 99.9V; =100V, display 199V
    Min.
    Resolution: 0.01V
    Start test voltage: 0.05V
    Accuracy: 1%

    Current


    Measure range: 0-300A
    Display: <1A, display 999mA; <10A, display 9.99A; <100A, display 99.9A; =100A, display 199A
    Min.
    Resolution: 1mA
    Start test current: 20mA
    Accuracy: 1%

    Power


    Measure range: 0-60000W
    Display: <10W, display 9.99W; <100W, display 99.9W; <1000W, display 999W; <10000W, display 9.99kW; =10000W, display 19.9kW
    Min.
    Resolution: 0.01W
    Start test power: 0.2W
    Accuracy: 1%


    Impedance: Impedance=voltage/current

    Measure range: 0-1000O
    Display: <100O, display 99.9O; =100O, display 999O
    When over the range or current is 0 displayed "---".
    Min.
    Resolution: 0.1O
    Accuracy: 1%

    Running time


    Range: 0-999 hr (no load no time)


    Display:
    0:00: 00- 999:59

    Notice

    1. This module is suitable for indoor, please do not use outdoor

    2. Applied load should not exceed the rated voltage, current.

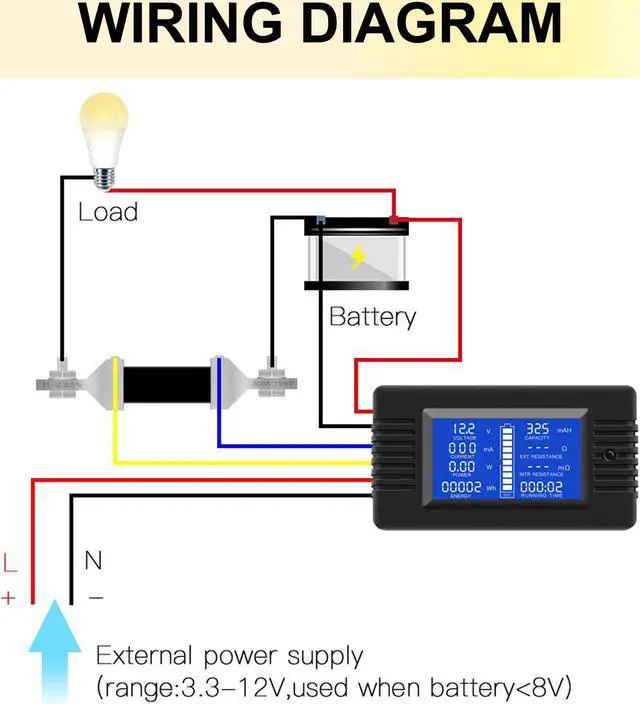

    3. Wiring order can't be wrong

    Package

    1 * Battery Monitor Meter

    1 * DC 300A Shunt

    6 * Wire

    1 * Instruction manual
