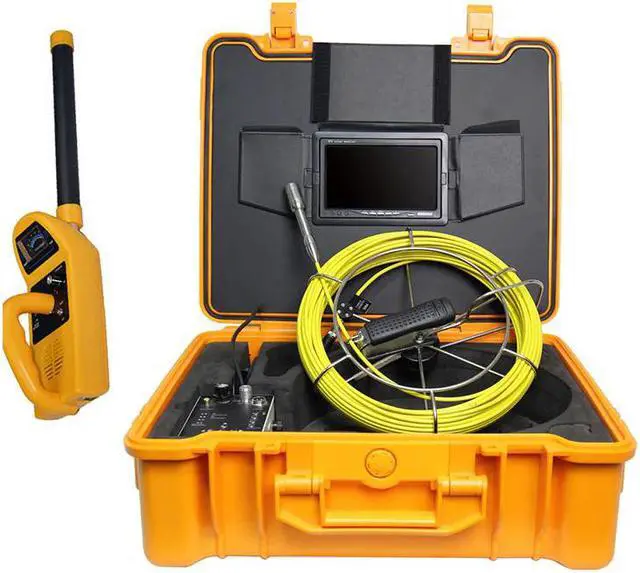

Drain Sewer Inspection Camera System 512Hz Transmitter Locator DVR Recording Camera 512hz FM Receiver 50Meter Cable

line camera(w/512Hz transmitter) +50m cable+DVR+ABS Case

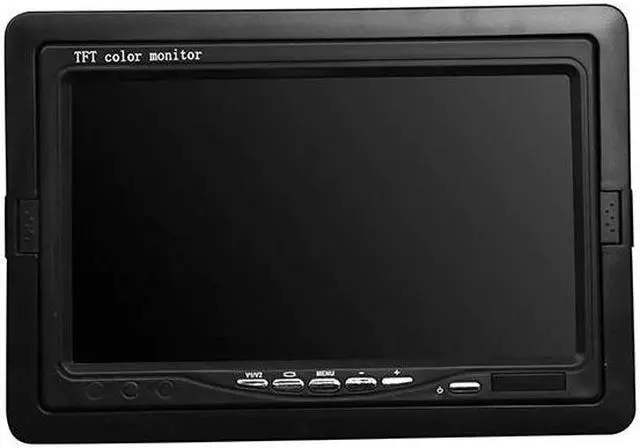

DISPLAY: 7 INCH Color LCD

Color SYSTEM: PAL/NTSC

Resolution: CMOS 600TVL

Camera Head: Stainless Steel 304

VIDEO: 1 Camera INPUT/1 VIDEO OUTPUT

POWER Adaptor: AC 110V-240V

WORKING TEMPERATURE: From -10 Degree to 50 Degree

Water Proof Grade: IP68

CAMERA: COLOR CMOS

Cable Length: 50M

POWER CONSUMPTION(W): 14W

NIGHT VISIBILITY: 12 WHITE LED 3M UNDER WATER

VIEWING ANGLE(Degree): 120Degree

Frequency: 512HZ

Distance: Up to15 foot

Modulation: FM

Tone type: Beeping or Continuous

Camera Head: Stainless Steel 304

VIEWING ANGLE(Degree): 120Degree

Size: 22.5*60MM

Range(cast iron): Up to 10 foot

Range(non-metallic): Up to 15 foot

Minimum line size: 1

Minimum P-Trap size: 2

Thread: Metric 15mm/Pitch 1 mm

512Hz Transmitter

Stainless steel camera head

Camera size:23mmx120mm

Front size: 45mm

Camera case material:stainless steel house stainless steel 304

Camera glass material:sapphir glass

Sensor size:1/4 inch

Total Pixels:PAL:720X576 NTSC: 720X480

View angle:120

Camera light:12PCS white LEDS

Special gold point touch connector

Waterproof:IP68

Camera work current:100MA

Camara power supply:DC 12V

LEDS ADJUASTABLE

Working temperature:-10-50

DVR Control Box

Now offer newest model DVR Box(supports USB stick)

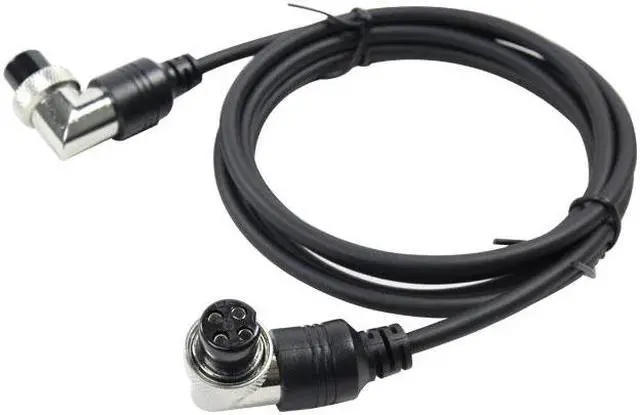

Durable strong cable

Military Lever ABS Suitcase( 2colors:Black/Yellow )

512Hz Receiver

This receiver is standard 512Hz Receiver.

Supports all the 512Hz devices . Default color:black
