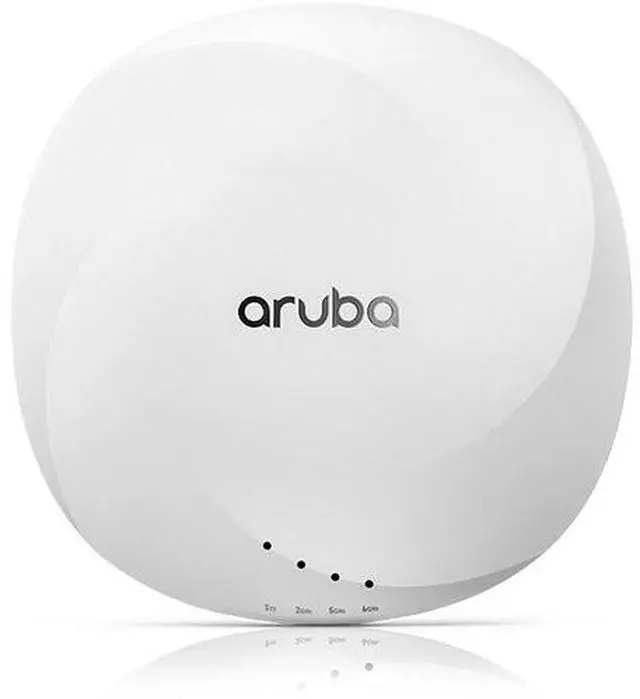

Aruba R7J38A AP-655 Tri Band 802.11ax 7.80 Gbit/s Wireless Access Point

General InformationManufacturer: Hewlett Packard EnterpriseManufacturer
Part Number: R7J38AManufacturer
Website Address:
http: //www. hpe.
comBrand Name: ArubaProduct
Series: 650Product
Model: AP-655Product
Name: AP-655
Wireless Access PointMarketing Information: Flagship offering with the performance to meet growing enterprise needs with Wi-Fi 6EBy leveraging the 6 GHz band, Aruba 650 Series Campus APs delivers peak performance and far greater capacity than previous generations of Wi-Fi. With up to 1200 MHz of new channels, capacity is nearly tripled - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 650 Series includes ultra tri-band filtering to minimize channel interference and dual configurable 5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. MORE CAPACITY AND WIDER CHANNELS
The 650 Series APs are designed to take advantage of the 6GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. The three 4x4 MIMO radios of the platform deliver a combined peak datarate of up to 7.8G bps. Advantages of 6GHzWi-Fi 6E provides up to 1200MHz in the 6GHz band for higher throughput and improved application performance. With up to seven 160MHz channels, Wi-Fi 6E can better support lowlatency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6GHz band so there is no interference or slowdowns due to legacy devices. Device class supportFor operation in the 6GHz band, the 650 Series APs are part of the low power indoor (LPI) device class. This fixed indooronly class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs. LESS INTERFERENCE650 Series Access Points include Aruba's ultra tri-band filtering, which enables enterprises to take advantage of the entire 5GHz and 6GHz bands without experiencing interference, while operating on any channel in either band concurrently.

Since there is only 50MHz between 5GHz and the 6GHz, without advanced filtering, enterprises would likely experience problems between the bands and would therefore be limited in the number of channels available. By applying advanced filtering capabilities, enterprises can take full use of available spectrum without creating coverage gaps or islands. BUSINESS CONTINUITY
The Series 650 APs provide high availability with two HPE Smart Rate ethernet ports for hitless failover for both data and power. Configurable to 1, 2.5, or 5 Gbps, these dual ports provide business continuity for mission critical applications.
Product Type: Wireless Access PointTechnical InformationWireless
LAN Standard: 802.11 axBluetooth
Standard: Bluetooth 5Network
Band: Tri
BandFrequency Band: 2.40 GHz5 GHz6 GHzWireless
Transmission Speed: 7.80
Gbit/sMIMO Technology: YesBeamforming
Technology: YesData
Encryption: YesEncryption
Standard: WPAWPA3WPA2-MPSKWPA2WPA3-ENT
Interfaces/PortsEthernet Technology: 2.5 Gigabit Ethernet5 Gigabit EthernetNumber of
Network (RJ-45) Ports: 2PoE
PD Port:
YesUSB: YesManagement
Port: YesPower
DescriptionPower Consumption: 42.50
WPhysical CharacteristicsForm Factor: Ceiling MountableAntenna
Form Factor:
InternalHeight: 2.4"W
idth: 10.2"D
epth: 10.2"W
eight (Approximate): 3.97 lb
