#Please refer to the official website for detailed specifications#
#The product is shipped from Taiwan, the plug is Taiwan plug, please prepare the adapter yourself#
Designed exclusively for Xbox for the ultimate gaming experience
Exclusively supports Xbox 1440p @120Hz output specification
Supports up to 240Hz refresh rate, 4.2 ms ultra-low input delay, and no image afterimage
4, 000 ANSI lumens, true 4K HDR resolution
Harman Kardon professionally adjusts the shocking sound effects, the ultimate sound quality and the perfect picture
1.3 x optical zoom, side projection and USB-C connection make installation more flexible and convenient
Can project up to 300-inch large screen, immersive audio-visual experience
Specification information
Projection system: 0.47" 4K-UHD
Original resolution: 3840x2160
Brightness: 4000 (ANSI lumens)
Contrast ratio (ultra power saving mode): 12000:1
Display colors: 1.07 billion colors
Light source type: 240W UHP Lamp
Light source life in normal mode (hours): 4000
Light source life in Eco mode (hours): 20000
Lens: F= 1.94 - 2.12, f=12- 15.6 mm
Projection offset: 120%+/-6%
Throw ratio: 1.13 - 1.47
Optical zoom: 1.3 x
Digital zoom: 0.8 x- 2.0 x
Image size: 30"-300"
Projection distance: 0.75 m- 9.76 m
(100"@ 2.50 m)
Keystone correction: H: +/-40°, V: +/-40°
Noise standard (normal): 33dB
Noise standard (Eco): 28dB
Input lag: 4.2 ms
Supported resolutions: VGA (640 x 480) to 4K (3840 x 2160)
HDTV compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal frequency: 15K-135KHz
Vertical scan rate: 23-240Hz

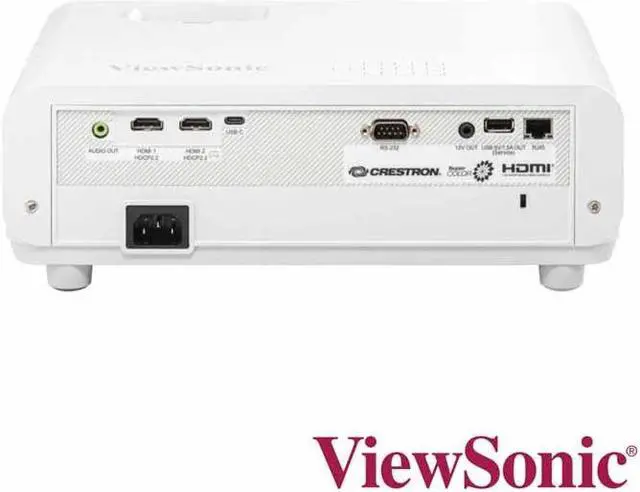

enter
HDMI: 2
(HDMI 2.0, HDCP 1.4 / 2.2 )
USB Type C: 1 (5V/2A)
output
Audio output (
3.5 mm): 1
Speaker: 10W Cube
USB Type A (power supply): 1 (5V/ 1.5A )
12V Trigger (
3.5 mm): 1
Adjustment options
RS232 (DB 9-pin male transmission line): 1
RJ45 (LAN network control): 1
USB Type A (service port): 1
(share with USB A Output)
other
Power supply voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power consumption: Normal: 310W
Standard: <0.5W
Operating temperature: 0~40
Carton: Kraft carton
Net weight: 3.0 kg
Total weight: 3.9 kg
Appearance dimensions (width x depth x height, including
adjustable base): 312x222x108mm
Packaging size: 415x168x297mm
Menu languages: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, Traditional Chinese, Simplified Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Indian, Arabic, Vietnamese, Greek, 24 languages in total
Manual language: English, Traditional Chinese, Indonesian, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, 20 languages in total
Standard accessories
Power cord: 1
USB-C transmission cable: 1 (1m)
Remote control: 1
(w/ backlit)
Quick Start Guide: Yes
