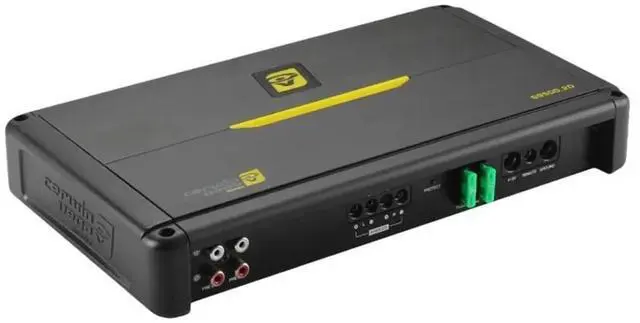

Cerwin Vega S9500.2D Stroker 500W RMS Class-D Digital 2 Channel Amplifier

STROKER PRO series amplifiers deliver BIG power, BIG performance, BIG everything! You know the old saying. Go BIG or Go Home! STROKER PRO amplifiers are powerful beasts that can drive and push the most inefficient speakers and subwoofers available in todays market and brings out their fullest performance capabilities to dramatic levels of high excursion, clean, and distortion-free sound! Massive aluminum heatsinks provide for superior thermal heat dissipation while robust 1/0 gauge power connections provide the efficient high current transfer. An ideal power choice for SPL and extreme sound systems, STROKER PRO amplifiers were built for this calling!

Specifications

:

Stroker Series Class D 2 ohms Stable 2-Channel Amplifier
RMS Power Rating:
4 ohms: 200 watts x 2 channel
2 ohms: 250 watts x 2 channel
Bridged: 500 watts x 2 channel @ 4 ohms
Total RMS power output: 500 watts
LED Power/Protect Light
Lighted LED logo
Wired bass level remote control included
Bass remote can be disassembled and installed in-dash
Speaker-level (high-level) inputs
Handles HI and LO level input up to 12V
1 pair of pre-amp outputs
Signal sensing remote turn-on
Input configuration switch on 4 and 5-channel amps
3-way protection circuitry (thermal, overload, and speaker short protection)
Compact size with single-sided connections
Surface mount component technology with 4-layer PCB
Input sensitivity:
Low level: 0.2 mV - 10 volts
High level: Yes up to 25W RMS
Frequency Response: 10 - 35000 Hz
Total Harmonic Distortion (THD): 0.05 %
Signal to Noise Ratio: - 98.9 dB
Variable high-pass filter: 35 - 35000 Hz
Variable low-pass filter: 35 - 35000 Hz
Fuse Rating: 50A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions (L x W x H): 11.81" x 7.25" x 2.0"
