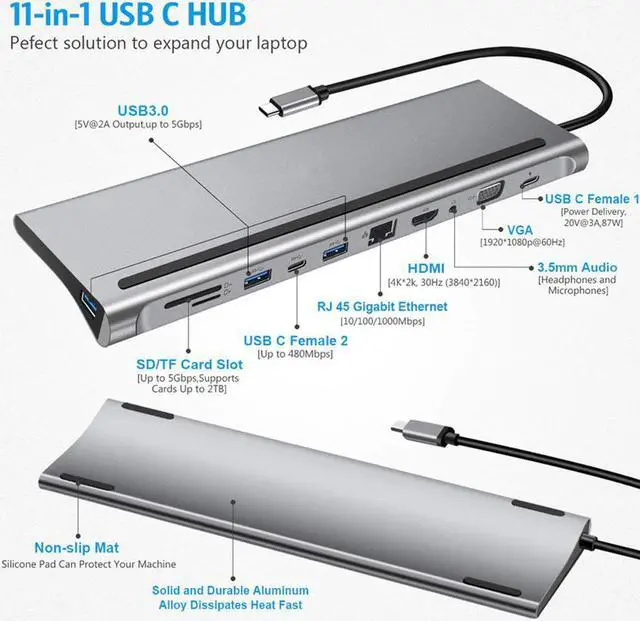

1. Support USB Type-C DisplayPort Alt Mode.,
2. Standard USB-C interface supports positive and negative insertion,

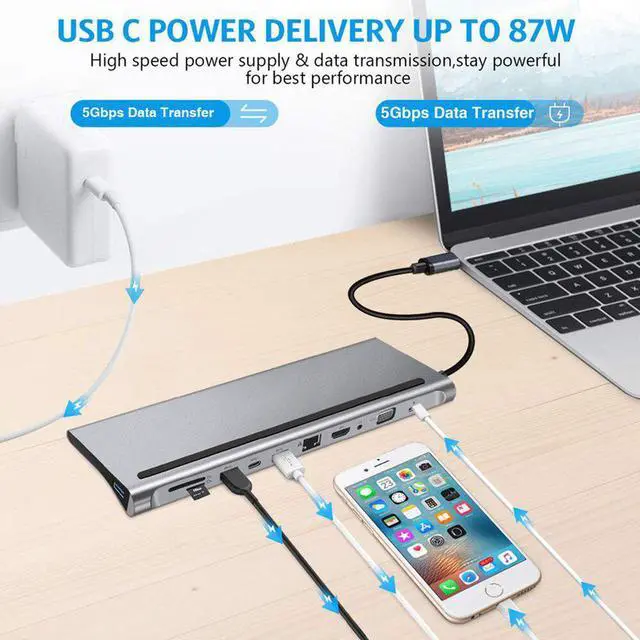

3. Support PD charging function power up to 60W (5~20V/3A Only charging) MAX.
4. The port uses black rubber core + nickel-plated shell
1. Adopt standard USB-A interface,
2. Comply with USB3.0 standard 5Gbps transmission,
3. Support reading and writing , U disk, card reader, keyboard, mouse, mole hard disk, solid state hard disk, digital camera, etc.
4. USB3.0 single port output power 4.5W (5V/0.9A) supports charging mole phones and other devices.
5. Adopt blue rubber core + nickel-plated shell.
1. Adopt standard TF card slot, support Micro (T-Flash)
2. Adopt USB3.0 standard theory to transmit : 5Gbps.
1. Adopt standard card slot, support SDHC, SDXC.
2. Adopt USB3.0 standard theory to transmit : 5Gbps.
1. Adopt standard HDMI-socket interface
2. Support audio and video transmission, video up to 4K*2K/30Hz and backward compatible
3. Using black rubber core + nickel-plated shell
4. HDMI1.4
1. Support analog signal video transmission, video support 1920*1080/60Hz, 1920*1080K/30Hz and backward compatible
1. RJ45 port adopts imported RTL8153 chip and supports 10M/100M/1000M network transmission.
1. Adopt four headphone jacks with microphone,
2. Conform to the standard (CTIA).
3. Normally, CTIA headphones are white circles.
4. Mic audio recording and playback support 48K and 44.1K sampling rate.
