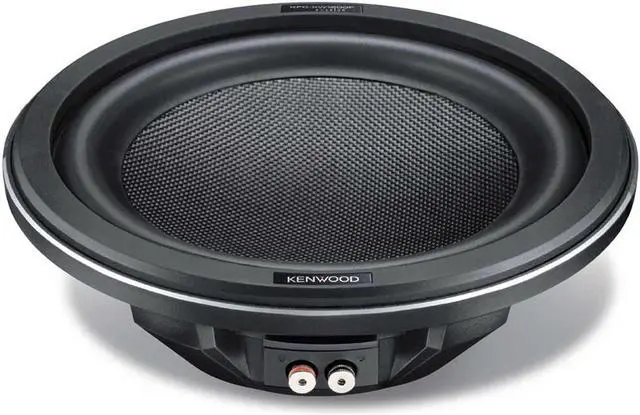

Kenwood eXcelon KFC-XW1200F 12 Shallow-Mount Subwoofer

The Kenwood eXcelon KFC-XW1200F 12 subwoofer produces serious bass output in the confined areas of your compact car or truck. And this shallow-mount sub measures less than 4 deep, so you can get creative with your installation.

The carbon-glass fiber cone employs a honeycomb pattern to deliver quick response in hard conditions without flexing. The beefed-up rubber surround maintains control over the cone, minimizing distortion caused by resonance. A die-cast aluminum basket offers a rock-solid housing with plenty of venting to keep the heat down. The silver-plated push terminals offer convenient connections and provide excellent signal transfer.

KFC-XW1200F Features
Flat Subwoofer: The Kenwood eXcelon flat subwoofer design is approximately 40% slimmer in height than a standard subwoofer. This makes them ideal for installation in the tightest of spaces such as behind or under the seat of a pickup truck.

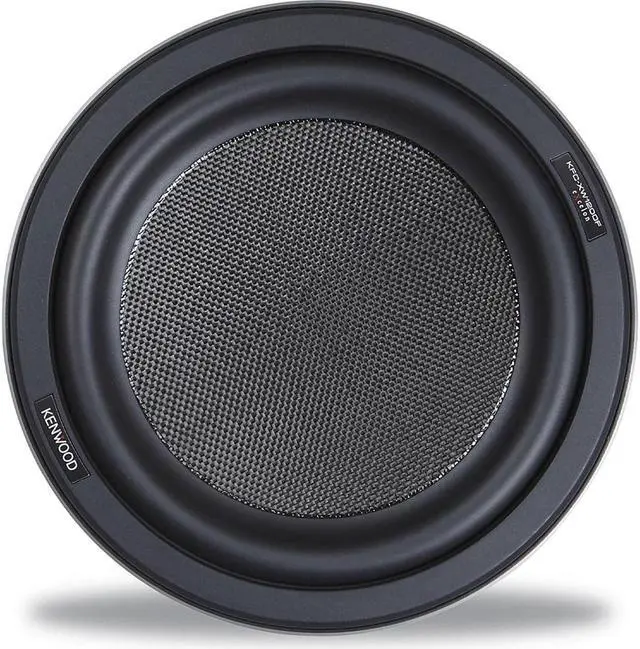

Carbon-Glass Fiber Cone: The eXcelon flat woofer uses a carbon-glass fiber honeycomb cone which allows the woofer to be efficient and durable at the same time.

Rubber Surround: The Kenwood woofer features a smooth linear rubber surround for added durability and increased excursion resulting in exceptional deep bass response.

Super Linear Spider: The flat woofer utilizes a super linear spider for maximum control over the woofers linear motion to improve overall sound quality.

Heat Transfer System: The Kenwood woofer features an advanced Heat Transfer System designed specifically for its slim-design to provide proper ventilation to keep the woofer cool.

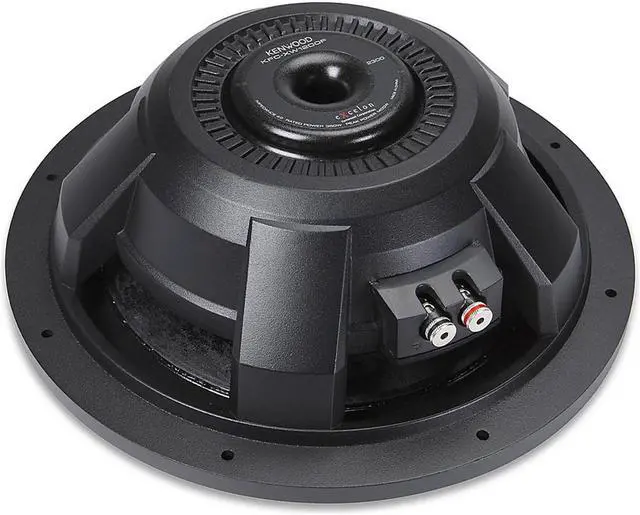

Aluminum-Cast Basket: The woofer is housed in a cast-aluminum basket for increased rigidity and long-lasting reliability.

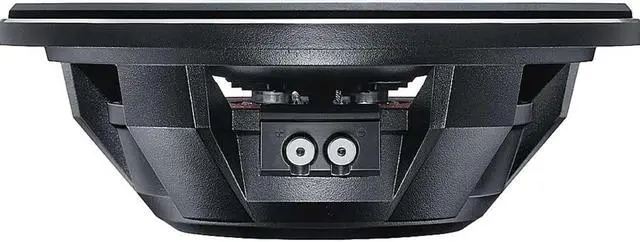

Spring Terminals: The flat woofer utilizes a pair of silver-plated spring terminals on one side of the woofer for connection to your amplifiers speaker wiring. The spring terminals will accept up to 10 AWG speaker wire.

Concealing Ring: The eXcelon woofer comes supplied with a removable, rubber concealing ring used to hide the woofers mounting screws for a neat and professional looking installation. The concealing ring increases the top mounting height to 1.

KFC-XW1200F Enclosure Compatibility
Sealed Box Volume: The sealed box size recommended by Kenwood is 0.8 cu/ft.

Vented Box Volume: The vented box size recommended by Kenwood range is 0.8 cu/ft. One 3 diameter x 14 long port should be used with a 0.8 cu/ft enclosure.
