Weastlinks M.2-THREE M2 2280 Solid State Hard Disk Heat Sink with 6010 Fan SSD Radiator PCI-E 4.0/5.0 Aluminum Heatsink Cooling Thermal Pad
- Quantity:2 Pcs,Color: Black.
- Cooling method: Active Cooling.
- Rated voltage: DC12V.Rated current: 0.08A.
- Fan speed: 3000RPM.
- Size: 74.5*24.5(35.5)*82mm.
+
+
Overview
Specs
Reviews
Features:

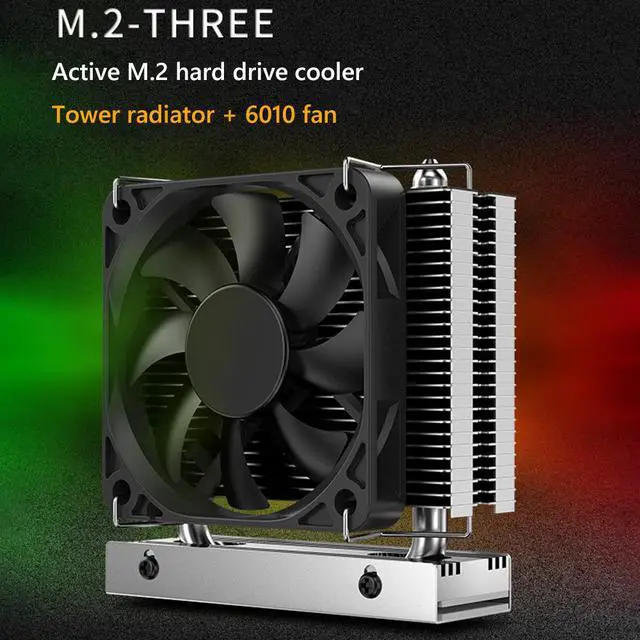

The overall size of the M.2-Three is 74.5 x 35.5 x 82 mm, and the volume is not large. It is equipped with a 6010 fan provided by Nine Sharks and has a net weight of 113g.
M.2-Three provides three installation methods, one is passive cooling without fan, the width will be reduced to 24.5mm, the other two are active cooling with fan installed, you can choose one of the two sides of the single tower.

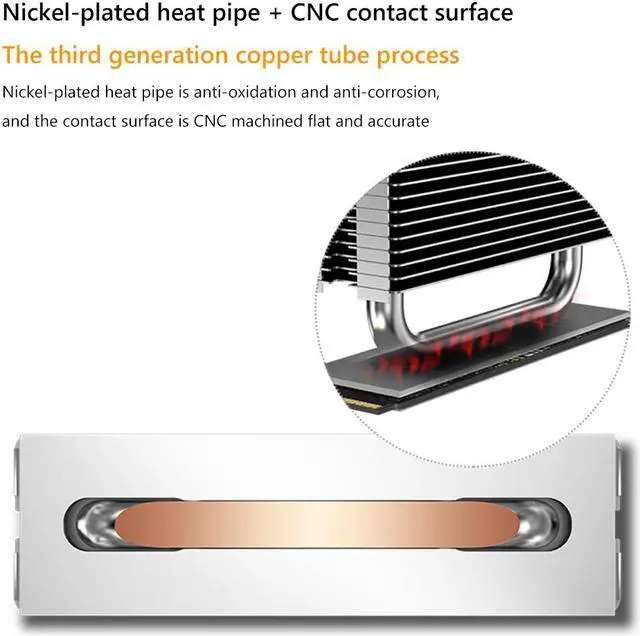

M.2-Three adopts the third-generation nickel-plated heat pipe, CNC contact surface and through-fin process, and uses a stainless steel bracket to fix it.

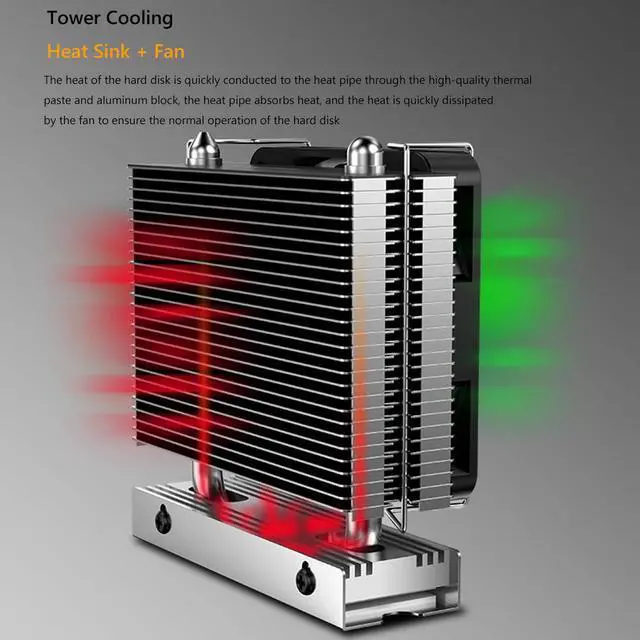

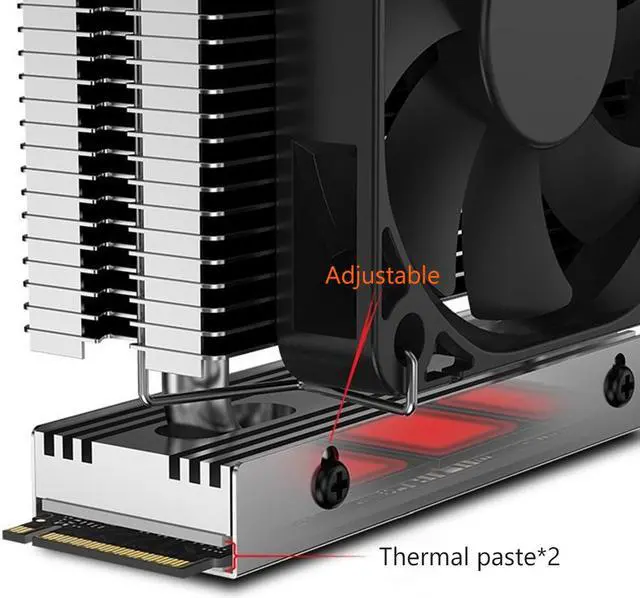

The heat of M.2 SSD is transferred to the heat pipe through thermal paste and aluminum block, and then dispersed to 27 through the heat pipe.
The heat of M.2 SSD is transferred to the heat pipe through thermal paste and aluminum block, and then dispersed to 27 through the heat pipe.
The fins are then quickly exhausted by the fan to ensure the stable operation of the M.2 SSD. The 6010 fan paired with the M.2-Three is 60mm in size, with a rotational speed of 3000±10% RPM, a maximum air volume of 14 CFM, a maximum air pressure of 1.33 mmH2O, and a noise of 25.4 dBA.
According to the test data provided by the experiment, when combined with Samsung 980 Pro, the cooling effect is obvious.
M.2-Three is an air-cooled heatsink specially designed for PCIe 4.0/5.0 M.2 2280 SSD.
Specification:
Model: M.2-Three.
Color: Black.
Cooling method: Active Cooling.
Rated voltage: DC12V.
Rated current: 0.08A.
Input power: 0.96W.
Fan speed: 3000RPM.
Maximum air volume: 14CFM.
Maximum wind pressure: 1.33mmH2O.
Noise level: 25.4dBA(MAX).
Application: 2280 Solid State Drive.
Size: 74.5*24.5(35.5)*82mm.
Net weight: 113g.
Installation method:

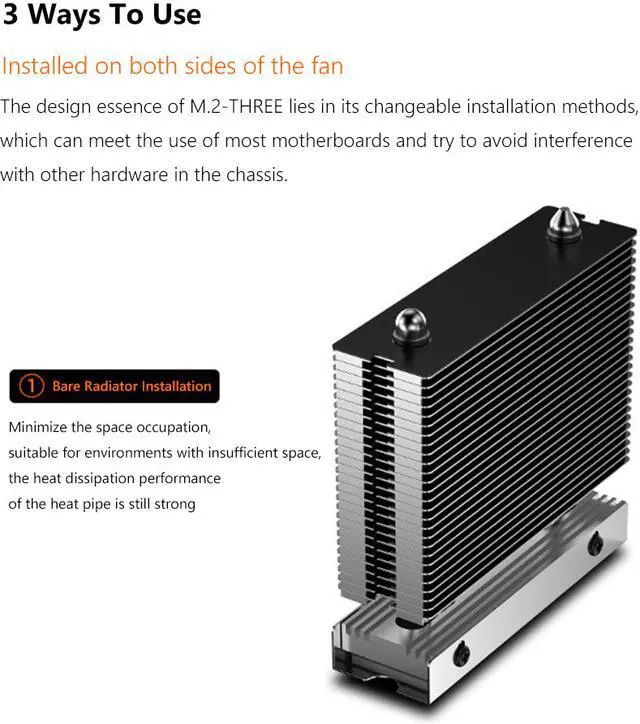

1. Bare radiator installation. Minimize space occupation, suitable for environments with insufficient space, and the heat dissipation performance of the heat pipe is still strong;

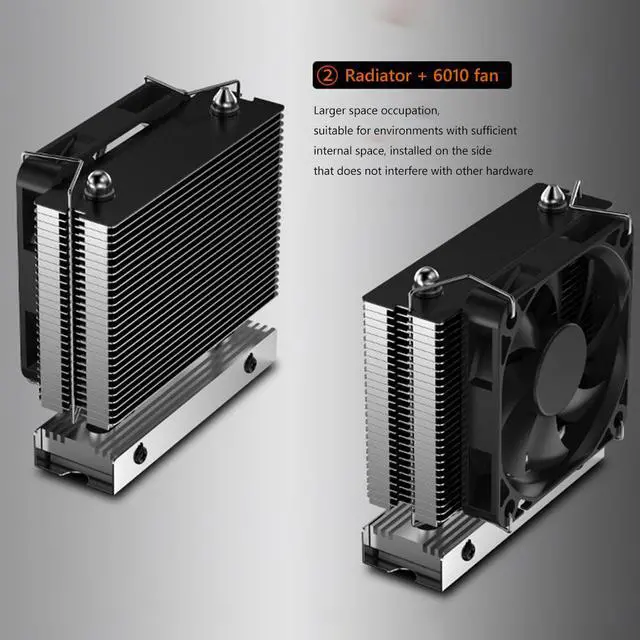

2. Radiator + 6010 fan. Large space occupation, suitable for environments with sufficient internal space, installed on the side that does not interfere with other hardware.
Packing List:
1 x Solid State Hard Disk Heat Sink
The overall size of the M.2-Three is 74.5 x 35.5 x 82 mm, and the volume is not large. It is equipped with a 6010 fan provided by Nine Sharks and has a net weight of 113g.
M.2-Three provides three installation methods, one is passive cooling without fan, the width will be reduced to 24.5mm, the other two are active cooling with fan installed, you can choose one of the two sides of the single tower.
M.2-Three adopts the third-generation nickel-plated heat pipe, CNC contact surface and through-fin process, and uses a stainless steel bracket to fix it.
The heat of M.2 SSD is transferred to the heat pipe through thermal paste and aluminum block, and then dispersed to 27 through the heat pipe.
The heat of M.2 SSD is transferred to the heat pipe through thermal paste and aluminum block, and then dispersed to 27 through the heat pipe.
The fins are then quickly exhausted by the fan to ensure the stable operation of the M.2 SSD. The 6010 fan paired with the M.2-Three is 60mm in size, with a rotational speed of 3000±10% RPM, a maximum air volume of 14 CFM, a maximum air pressure of 1.33 mmH2O, and a noise of 25.4 dBA.
According to the test data provided by the experiment, when combined with Samsung 980 Pro, the cooling effect is obvious.
M.2-Three is an air-cooled heatsink specially designed for PCIe 4.0/5.0 M.2 2280 SSD.
Specification:
Model: M.2-Three.
Color: Black.
Cooling method: Active Cooling.
Rated voltage: DC12V.
Rated current: 0.08A.
Input power: 0.96W.
Fan speed: 3000RPM.
Maximum air volume: 14CFM.
Maximum wind pressure: 1.33mmH2O.
Noise level: 25.4dBA(MAX).
Application: 2280 Solid State Drive.
Size: 74.5*24.5(35.5)*82mm.
Net weight: 113g.
Installation method:
1. Bare radiator installation. Minimize space occupation, suitable for environments with insufficient space, and the heat dissipation performance of the heat pipe is still strong;
2. Radiator + 6010 fan. Large space occupation, suitable for environments with sufficient internal space, installed on the side that does not interfere with other hardware.
Packing List:
1 x Solid State Hard Disk Heat Sink
