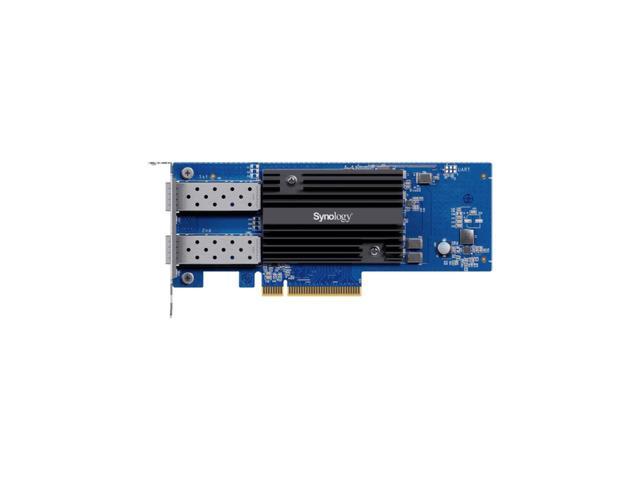

Synology E10G30-F2 Dual-port 10GbE SFP+ PCIe 3.0 x8 add-in card for Synology systems

• Host Bus Interface: PCIe 3.0 x8
• Bracket Height: Low Profile and Full Height
• Operating Temperature: 0 C to 40 C (32 F to 104 F)
• Storage Temperature: -20 C to 60 C (-5 F to 140 F)
• Relative Humidity: 5% to 95% RH

Network:

• IEEE Specification Compliance:
• IEEE 802.3ad Link Aggregation
• IEEE 802.3ae 10Gbps Ethernet
• Data Transfer Rates: 10 Gbps
• Supported Features:
• TCP Segmentation Offload (TSO)
• Receive Side Scaling (RSS)
• Generic Segmentation Offload (GSO)
• 1.5 - 9 KB Jumbo Frame
• TCP/UDP Checksum Offload
• Transmit side scaling (TSS)
• SR-IOV
• Large receive offload (LRO)

Compatibility

• Applied Models:
• FS series: FS6400, FS3600, FS3410, FS3400, FS2500
• HD series: HD6500
• SA series: SA6400, SA3610, SA3600, SA3410, SA3400D, SA3400, SA3200D
• UC series: UC3400, UC3200
• 23 series: RS2423RP+, RS2423+, DS1823xs+
• 22 series: RS822RP+, RS822+, DS3622xs+, DS2422+
• 21 series: RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+
• 20 series: RS820RP+, RS820+
• 19 series: RS1619xs+, DS2419+II, DS2419+, DS1819+
• 18 series: RS3618xs, RS2818RP+, RS2418RP+, RS2418+
• 17 series: RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs
• Size (Height x Width x Depth): 69 mm x 168 mm x 17.3 mm
