2.4G/5.8G 1200M Dual-band Gigabit USB 3.0 Wireless Network Card WIFI Signal Receiver Transmitter

2.4G/5.8G 1200M Dual-band Gigabit USB 3.0 Wireless Network Card WIFI Signal Receiver Transmitter Wifi Adapter for Windows 7/8/10 Mac OS



Description:

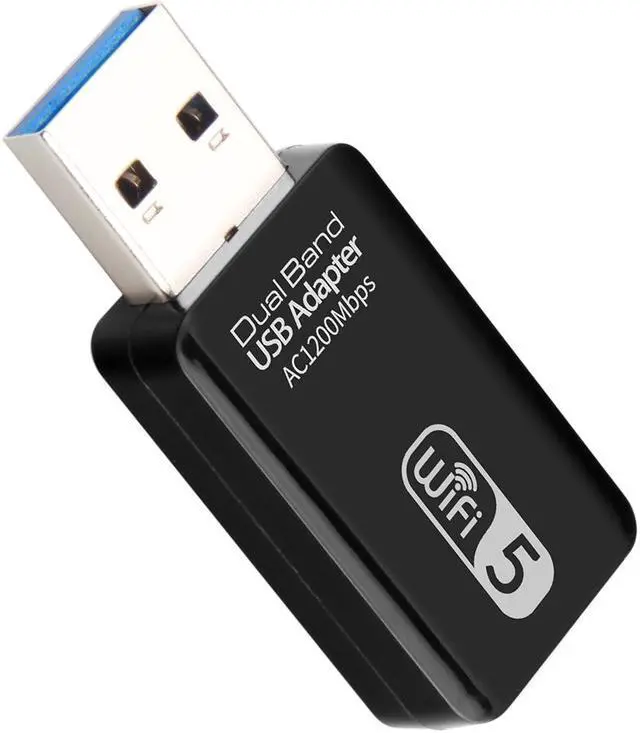

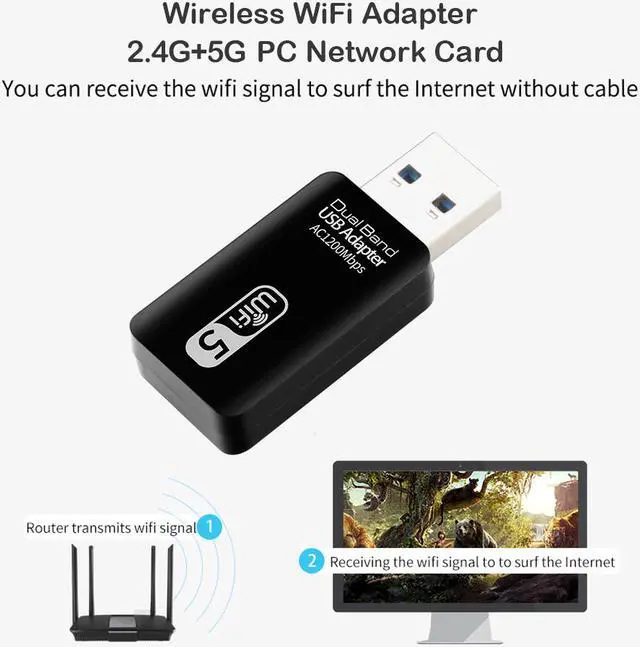

WD-4601AC dual-band wireless USB network card is suitable for wireless connection of desktop PCs and other devices, and can provide a convenient and fast way of wireless Internet access.

The network card supports automatic detection function and can automatically adjust the speed.

Comply with IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.11e, IEEE 802.11i, IEEE 802.11ac standards.

Wireless transmission rate: 2.4G frequency band can be as high as 300Mbps; 5G frequency band can be as high as 866Mbps.

Support WPA, WPA2 security mechanism, support TKIP, AES, WEP encryption, can provide security for wireless network connection.



Feature:

Support 802.11ac standard-next generation Wi-Fi.

Backward compatible with 802.11 a/b/g/n products.

802.11ac super high speed AC1200 (866 + 300Mbps) wireless speed.

The highest speed is 5GHz 866Mbps or 2.4GHz 300Mbps.

Dual-band connection provides high-definition video streaming and games without delay.

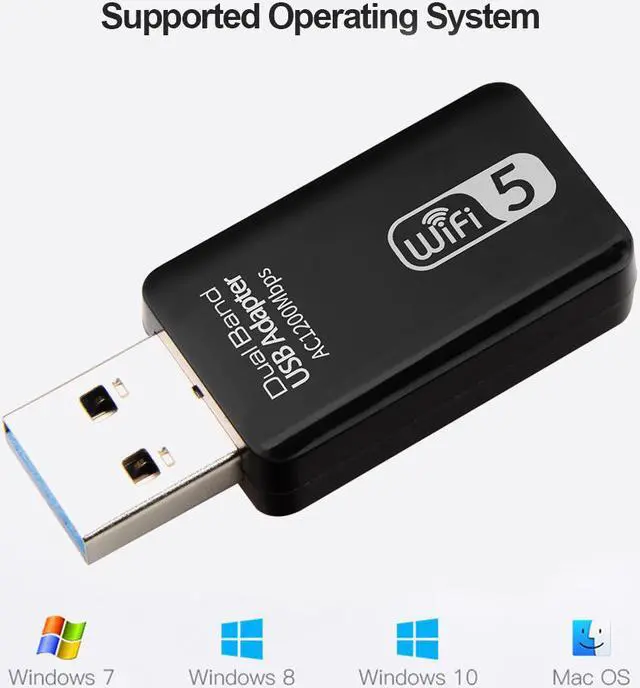

Support for Windows 10/8/7/XP 32/64bit, MAC OS, Linux.



Specification:

Wireless Standard: IEEE 802.11ac IEEE 802.11a IEEE 802.11b/g/n

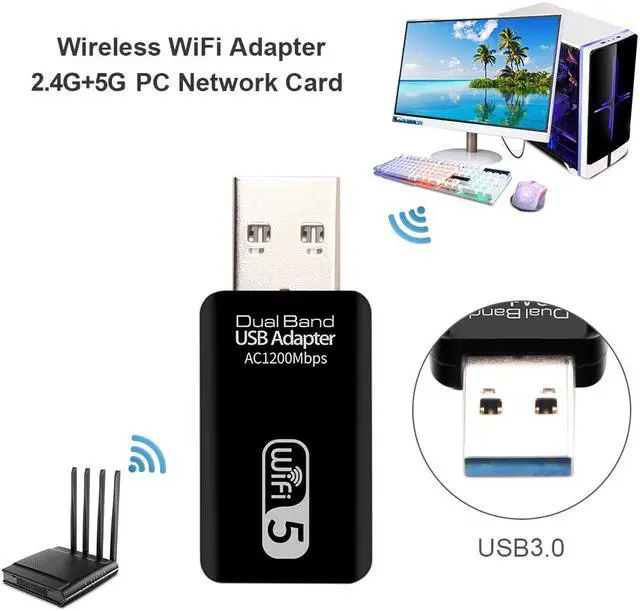

Host Interface: USB 3.0

Frequency Range:

2.4GHz~2.4835 GHz

5.12GHz~5.825GHz

Wireless Speed:

802.11ac: Up to 866Mbps

802.11n: Up to 300Mbps

802.11g: 6/9/12/18/24/36/48/54Mbps

802.11b: 1/2/5.5/11Mbps

Work Channel Number:

1~14 (2.4G)

36~165 (5G)

Spread Spectrum: DSSS

Modulation Type: OFDM / CCK / 16-QAM / 64-QAM

Working Power: 20dBm (Maximum EIRP)

Sensitivity:

11n: -68dBm at 300M; -68dBm at 108M

11g: -69dBm at 54M

11b: -85dBm at 11M

11ac: -59dBm at 866M

Supported Operating Systems: for 32/64bit Win XP, Vista, Win7, Win8, Win8.1, Win10; Linux; MacOS10.9-Mac10.13;

Chipset: for Realtek8812BU

LED Light: Status

Antenna Type: 2 X 2dBi Built-In Antenna (2T2R)

Working Temperature: 0?-40?

Storage Temperature: -40?-70?

Working Humidity: 10%-90% Non-Condensing

Storage Humidity: 5%-90% Non-Condensing



Note:

1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

2. Please allow 1-3mm measuring deviation due to manual measurement.
