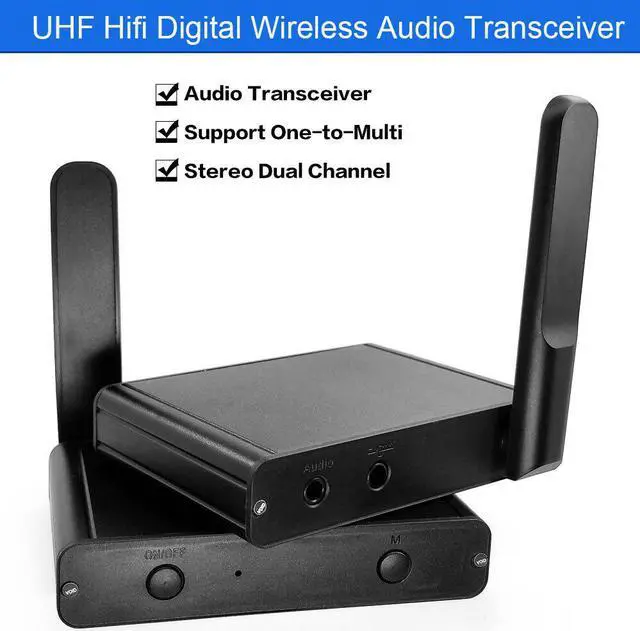

Hifi Digital Wireless Audio Adapter Music Sound Wireless Transmitter Receiver Transceiver With 3.5mm Audio Cable For Ipad

Hifi Digital Wireless Audio Adapter Music Sound Wireless Transmitter Receiver Transceiver With 3.5mm Audio Cable For Ipad

Transmitter function description

   Transmitting antenna:  The wireless signal is sent by this antenna.

   Power button:  Press and hold for 2 seconds to turn it on, Press and hold for 2 seconds to turn it off.

   Status indicator light:  This Red indicator light is always on after power on.

   Pairing button:  The transmitter and receiver are paired and completed in the factory, and the normal application does not need to be re-paired.

In some cases, if the transmitter and receiver need to be re-paired, they all need to press the pairing button for 2-3 seconds after booting up. The Red status indicator light of transmitter will flashing. When the pairing is successful, The Green signal indicator light of receiver will flash three times in succession, It will automatically exit the pairing state and get into the normal receiving mode.

If more than one Receiver is needed, The transmitter needs to be in pairing mode until all receivers have been paired, All other receivers will be paired one by one in the same way. When all the receivers have been paired successfully, Turn off and reboot the Transmitter,

Tips: Please do not press and hold the pairing button for a long time. It is recommended to press and hold the pairing button for 2-3 seconds to release the hand. Excessive pressing time may cause misoperation.

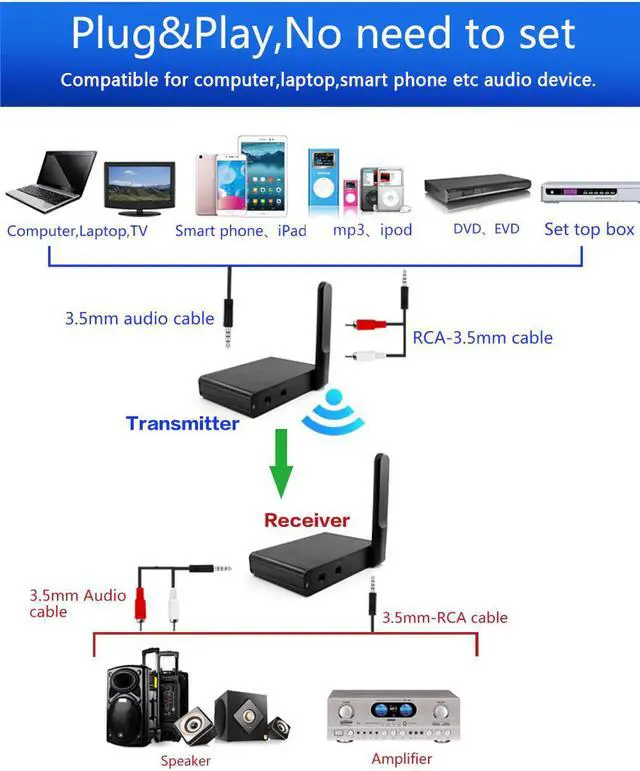

   Audio input port: Plug the audio extension cable into this port and connect it to the audio device output port through the audio extension cable.

   Power input port:  5V supply voltage, powered by 5V 1A power adapter.

Receiver function description
