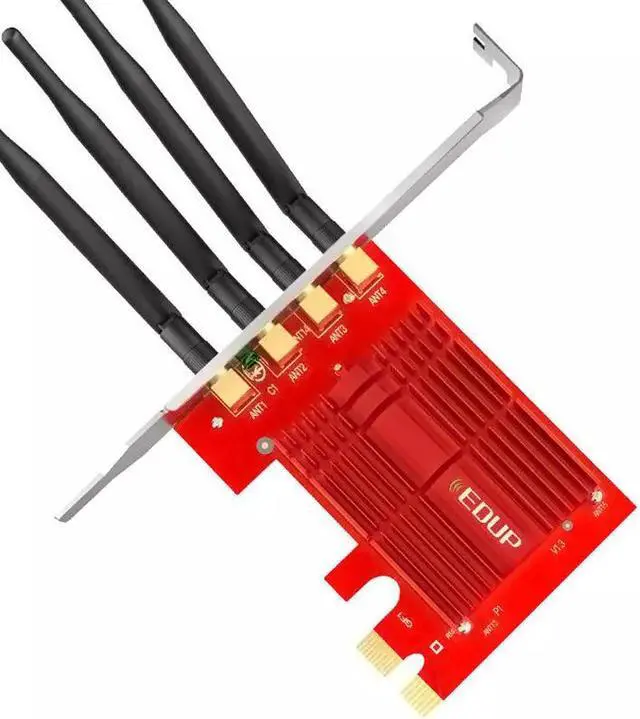

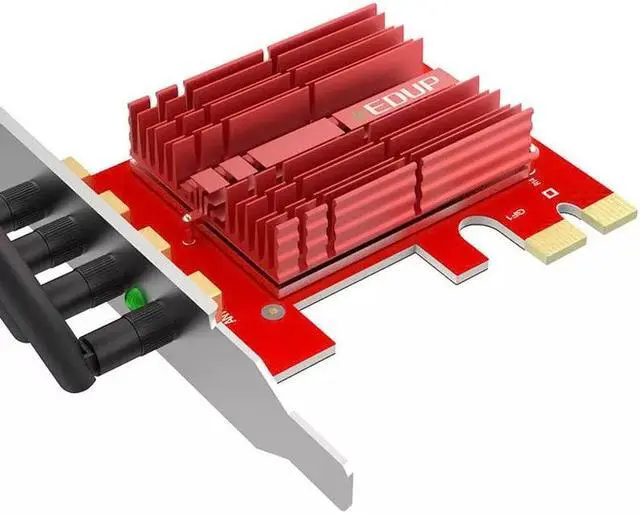

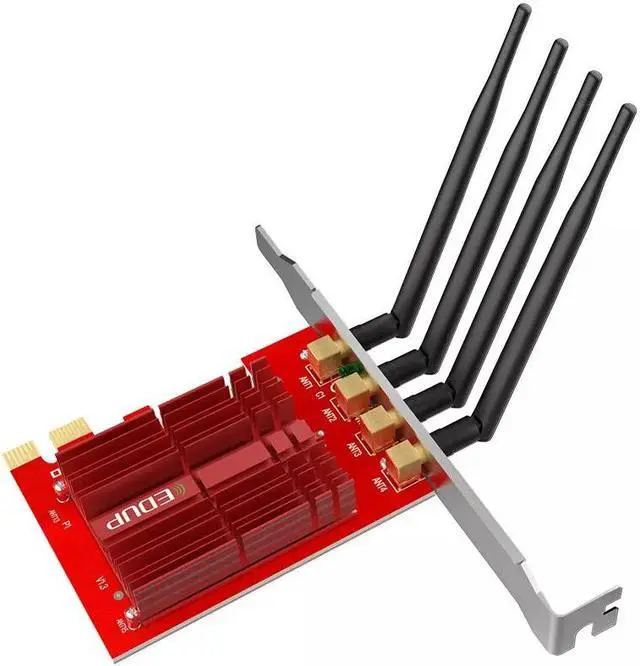

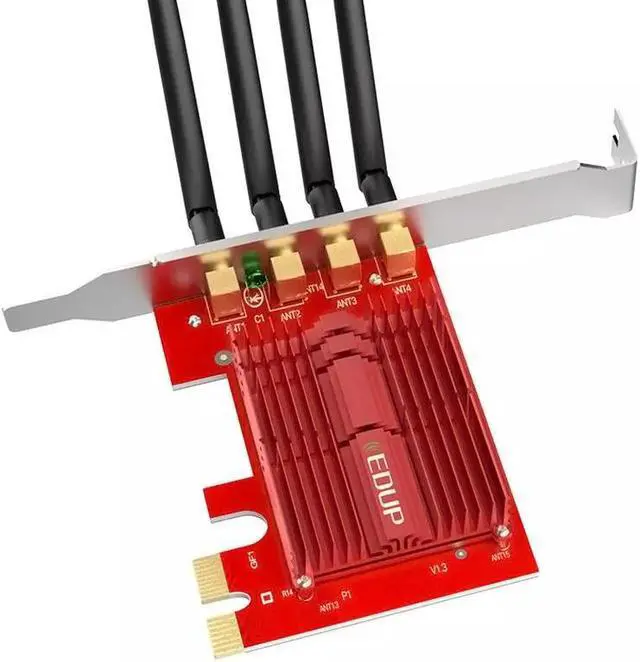

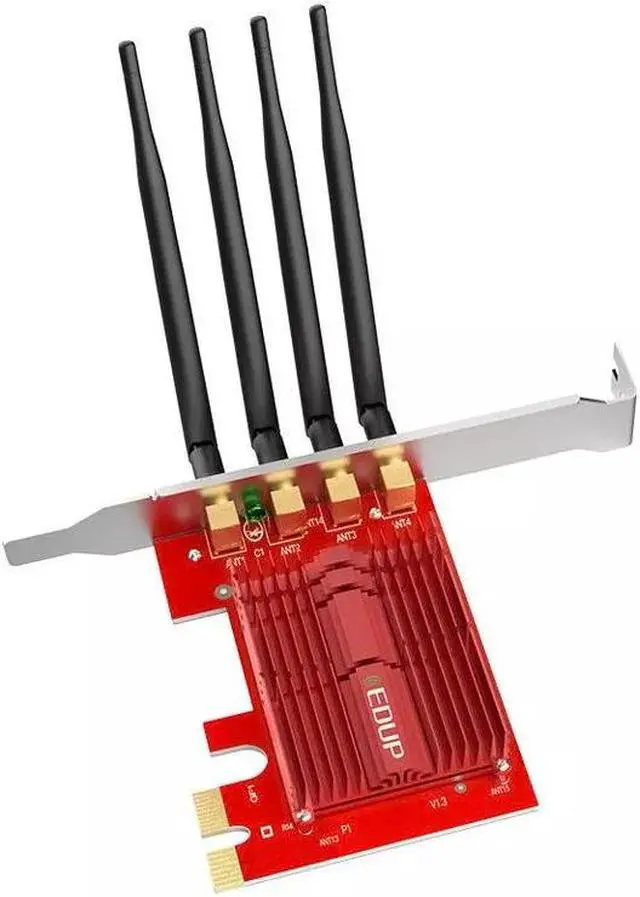

PCI-E AC1900 WiFi Adapter Dual Band 2.4G 5G Wireless AC 1900 PCI Express Card

PCI-E Dual Band 11AC 1900Mbps Wireless WiFi Card with 4 of 5dBi Antennas

The WiFi card is a highly integrated and cost-effective Wireless Adapter that provides PCI Express interface, and full compliance with IEEE 802.11 ac and IEEE 802.11 a/b/g/n standards. Wireless transmission rates can reach up to 1900Mbps. Using the Wireless Desktop PCI-E Adapter not only can you connect your desktop computer to a high-speed Wi-Fi network and experience faster files transmission and high-speed Internet browsing from further distances across your home than that in previous-generation Wireless n technology, but also you can enjoy high performance wireless viewing HD multimedia and real-time online war game when the PCI-E Adapter work in 11ac 5G mode.

This Desktop PCI-E Adapter is the best choice for the desktop computer users who want to enjoy a better wireless performance and high-speed Wi-Fi network.

Complies with IEEE 802.11 ac IEEE 802.11 n/a/b/g standards
Supports PCI-E 1.1 x1 bus
2.4G /5G dual frequency optional, 5Ghz band rate up to 1300Mbps, 2.4G hz band rate up to 600Mbps
Supports Cisco CCX
Supports multiple BSSID
4 x 5dBi dual band removable Omni directional antennas
Support Operating System Windows 7/ 8.1 /10

Specifications

:
Chipset: RTL8814AE
Standards:
IEEE 802.11 ac, IEEE 802.11 n, IEEE 802.11 b, IEEE 802.11 g, IEEE 802.11 a
PCI Bus: PCI Express x1
Sensitivity @PER:
5G 11ac
VHT80M MCS9: -55dBm @10% PER
HT40M MCS7: -65dBm @10% PER
HT20M MCS7: -68dBm @10% PER

2.4G 11N
HT40M MCS7: -65dBm @10% PER
HT20M MCS7: -68dBm @10% PER
OFDM 54M: -70dBm@10% PER

11b 11M: -81dBm@8% PER

Transmit Power: 20dBm(Max. )
Antenna: 4 x 5dBi dual band removable unidirectional antennas

Transmission Rate:
2.4G up to 600Mbps
5G up to 1300Mbps

Operating System:
Microsoft Windows 7 32/64, Windows 10 32/64

LED: Link/Act
Environment:
Operating Temperature: 0~45
Storage Temperature: -40~70
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~95% non-condensing

Package Included:
1 x PCI-E Dual Bank AC1900 WiFi Card
1 x Driver CD
