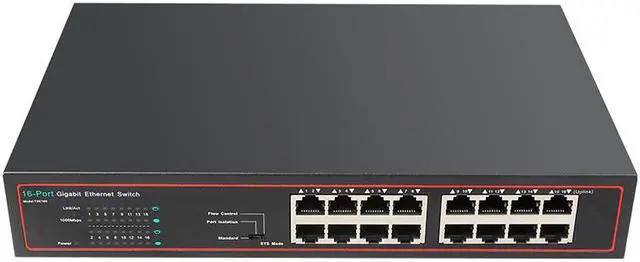

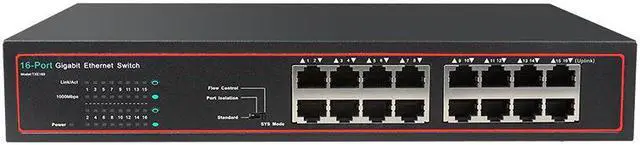

Weastlinks Gigabit Network Switch 16 Port 10/100/1000Mbps Fast Ethernet Switch with Realtek chip lan switch 1000M
- Port number:16 ports Fast ethernet switch.
- Data rate:10/100/1000Mbps.
- Interface:16 10/100/1000Mbps RJ45 ports, Auto negotiation/Auto MDI/MDIX.
- Power supply:AC power: 100-240VAC, 50/60Hz.
- LED:Power, 1000Mbps, Link/Act.
+
+
Overview
Specs
Reviews
Features:
Port number:16 ports Fast ethernet switch
Data rate:10/100/1000Mbps
Interface:16 10/100/1000Mbps RJ45 ports, Auto negotiation/Auto MDI/MDIX
Dimension:270*180*44MM
Standards & Protecols:IEEE 802i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Forwarding mode:Store and Forward
Network Media:10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T:UTP category 5, 5e or above cable (maximum 100m)
Power supply:AC power: 100-240VAC, 50/60Hz
LED:Power, 1000Mbps, Link/Act
Switching capacity:32Gbps
Maximum Power Consumption(220V/50Hz):9.26W
Environment
Operating Temperature: 0°C~40°C(32°F~104°F)
Storage temperature: -40°C~70°C(-40°F~158°F)
Operating humidity: 10%~90%RH non-condensing
Storage humidity: 5%~90%RH non-condensing
Package Included:
1 x 16 ports Fast ethernet switch
Port number:16 ports Fast ethernet switch
Data rate:10/100/1000Mbps
Interface:16 10/100/1000Mbps RJ45 ports, Auto negotiation/Auto MDI/MDIX
Dimension:270*180*44MM
Standards & Protecols:IEEE 802i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Forwarding mode:Store and Forward
Network Media:10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T:UTP category 5, 5e or above cable (maximum 100m)
Power supply:AC power: 100-240VAC, 50/60Hz
LED:Power, 1000Mbps, Link/Act
Switching capacity:32Gbps
Maximum Power Consumption(220V/50Hz):9.26W
Environment
Operating Temperature: 0°C~40°C(32°F~104°F)
Storage temperature: -40°C~70°C(-40°F~158°F)
Operating humidity: 10%~90%RH non-condensing
Storage humidity: 5%~90%RH non-condensing
Package Included:
1 x 16 ports Fast ethernet switch
