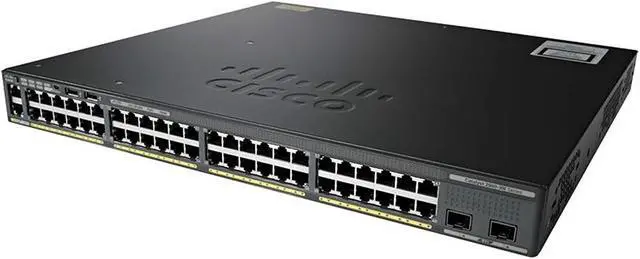

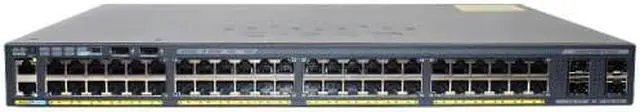

WS-C2960X-48FPS-L Switch GigE PoE 740W, 4 x 1G SFP, LAN Base

Enclosure type

Rack-mountable - 1U

Ports

48 x 10/100/1000 + 4 x 1G SFP

Network management Interface

10/100 Mbps Ethernet (RJ-45)

Available PoE Power

740W

Forwarding bandwidth (Gbps)

108Gbps

Maximum stacking number

8

Stack Bandwidth

80 G

Forwarding Performance

107.1M pps

Switching bandwidth

216Gbps

Maximum active VLANs

1023

MAC Address Table Size

16K (default)

CPU

APM86392 600MHz dual core

RAM

256 MB

Flash Memory

64 MB

Status Indicators

Per-port status: Link integrity, disabled, activity, speed, and full duplex
System status: System, RPS, Stack link status, link duplex, PoE, and link speed

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Stacking cable

Optional

Power Redundancy

Option (PWR-RPS2300)

Voltage range (Auto)

110V-240V

Power Consumption Operational

0.89KVA

Miscellaneous

Width

17.5 Inches ( 44.5 cm)

Depth

14.5 Inches ( 36.8 cm)

Height

1.75 Inches ( 4.5 cm)

Weight

12.9 lb ( 5.8 Kg)

Package Weight

23.48 lb ( 10.65 Kg)

Rack Mounting Kit

optional

MTBF in hours

232, 610

Compliant Standards

IEEE 802.1D Spanning Tree Protocol
IEEE 802.1 p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1 s
IEEE 802.1 w
IEEE 802.1X
IEEE 802.1 ab (LLDP)
IEEE 802.3 ad
IEEE 802.3 af and IEEE 802.3 at
IEEE 802.3 ah (100BASE-X single/multimode fiber only)
IEEE 802.3 x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

IEEE 802.3 10BASE-T
IEEE 802.3 u 100BASE-TX
IEEE 802.3 ab 1000BASE-T
IEEE 802.3 z 1000BASE-X
RMON I and II standards
SNMP v1, v2c, and v3
IEEE 802.3 az
IEEE 802.1 ax
