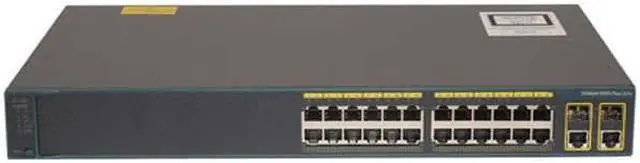

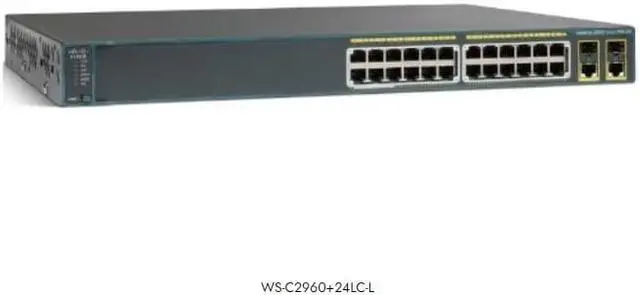

WS-C2960+24LC-L 2960 Plus Switch 2960 plus 24 Port 10/100 (8 PoE) + 2 T/SFP LAN Base

WS-C2960+24LC-L Specification
Configurations

10/100 Ethernet Interfaces

24

Uplink Interfaces

2 (SFP or 1000BASE-T)

IOS Software Feature Set

LAN Base

Available PoE Power

123W (8 ports up to 15.4W )

Hardware

Flash memory

64 MB

DRAM

128 MB

Performance and Scalability

Forwarding bandwidth

16 Gbps

Maximum active VLA
Ns

255

VLAN IDs available

4K

Maximum transmission unit (MTU) - L3 packet

9000 bytes

Jumbo frame - Ethernet frame

9018 bytes

Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second

6.5

Mechanical

Dimensions (H x W x D)

1.73 x 17.70 x 13.07 in ( 4.4 x 45.0 x 33.2 cm)

Weight

10 lb ( 4.5 Kg)

Package Weight

20.26 lb ( 9.19 Kg)

Environmental Ranges

Operating temperature up to 5000 ft (1500 m)

23º to 113ºF

(-5º to 45ºC)

Operating temperature up to 10, 000 ft (3000 m)

23º to 104ºF

(-5º to 40ºC)

Short-term exception at sea level*

23º to 131ºF

(-5º to 55ºC)

Short-term exception up to 5000 feet (1500 m) *

23º to 122ºF

(-5º to 50ºC)

Short-term exception up to 10, 000 feet (3000 m) *

23º to 113ºF

(-5º to 45ºC)

Short-term exception up to 13, 000 feet (4000 m) *

23º to 104ºF

(-5º to 40ºC)

Storage temperature up to 15, 000 feet (4573 m)

23º to 158ºF

(-25º to 70ºC)

Operating altitude

Up to 10, 000 Feet

(Up to 3, 000 Meters)

Storage altitude

Up to 13, 000 Feet

(Up to 4, 000 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing

Sound Pressure, dBA

Typical,
LpAm: 43

Maximum,
LpAD: 46

Sound Power, dbA

Typical,
LwA: 53

Maximum,
LwAD: 56

MTBF in thousands of hours

498

Connectors and Interfaces

Ethernet Interfaces

10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling
100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs

Per-port status: Link integrity, disabled, activity, speed, and full duplex
System status, Port Status, PoE, RPS, link duplex, and link speed
Console

console cables:

CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45
Power

The internal power supply is an auto-ranging unit and supports input voltages between 100 and 240V AC.
Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
The RPS connector offers connection for an optional RPS 2300 that uses AC input and supplies DC output to the switch.
Only the RPS 2300 (model PWR-RPS2300) should be attached to the redundant-power-system receptacle.
Management and Standards Support

Management

BRIDGE-MIB
-CABLE-DIAG-MIB
CDP-MIB
CLUSTER-MIB
-CONFIG-COPY-MIB
-CONFIG-MAN-MIB
DHCP-SNOOPING-MIB
-ENTITY-VENDORTYPE-OID-MIB
ENVMON-MIB
-ERR-DISABLE-MIB
-FLASH-MIB
FTP-CLIENT-MIB
IGMP-FILTER-MIB
IMAGE-MIB
-IP-STAT-MIB
-LAG-MIB
MAC-NOTIFICATION-MIB
MEMORY-POOL-MIB
PAGP-MIB
-PING-MIB
-POE-EXTENSIONS-MIB
PORT-QOS-MIB
PORT-SECURITY-MIB
PORT-STORM-CONTROL-MIB
-PRODUCTS-MIB
-PROCESS-MIB
RTTMON-MIB
SMI-MIB
-STP-EXTENSIONS-MIB
-SYSLOG-MIB
-TC-MIB
TCP-MIB
UDLDP-MIB
VLAN-IFTABLE
RELATIONSHIP-MIB
VLAN-MEMBERSHIP-MIB
VTP-MIB
ENTITY-MIB
ETHERLIKE-MIB
IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
IF-MIB
INET-ADDRESS-MIB
OLD-CHASSIS-MIB
OLD-FLASH-MIB
OLD-INTERFACES-MIB
OLD-IP-MIB
OLD-SYS-MIB
OLD-TCP-MIB
OLD-TS-MIB
RFC1213-MIB
RMON-MIB
RMON2-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNM
Pv2-MIB
TCP-MIB
UDP-MIB
ePM MIB
Standards

IEEE 802.1D Spanning Tree Protocol
IEEE 802.1 p CoS Prioritization
IEEE 802.1Q VLAN
IEEE 802.1 s
IEEE 802.1 w
IEEE 802.1X
IEEE 802.1 ab (LLDP)
IEEE 802.3 ad
IEEE 802.3 af
IEEE 802.3 ah (100BASE-X single/multimode fiber only)
IEEE 802.3 x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.3 10BASE-T
IEEE 802.3 u 100BASE-TX
IEEE 802.3 ab 1000BASE-T
IEEE 802.3 z 1000BASE-X
RMON I and II standards
SNMP v1, v2c, and v3
RFC compliance

RFC 768 - UDP
RFC 783 - TFTP
RFC 791 - IP
RFC 792 - ICMP
RFC 793 - TCP
RFC 826 - ARP
RFC 854 - Telnet
RFC 951 - Bootstrap Protocol (BOOTP)
RFC 959 - FTP
RFC 1112 - IP Multicast and IGMP
RFC 1157 - SNMP v1
RFC 1166 - IP Addresses
RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery
RFC 1305 - NTP
RFC 1492 - TACACS+
RFC 1493 - Bridge MIB
RFC 1542 - BOOTP extensions
RFC 1643 - Ethernet Interface MIB
RFC 1757 - RMON
RFC 1901 - SNMP v2C
RFC 1902-1907 - SNMP v2
RFC 1981 - Path MTU Discovery for IPv6
FRC 2068 - HTTP
RFC 2131 - DHCP
RFC 2138 - RADIUS
RFC 2233 - IF MIB v3
RFC 2373 - IPv6 Aggregatable Addrs
RFC 2460 - IPv6
RFC 2461 - IPv6 Neighbor Discovery
RFC 2462 - IPv6 Autoconfiguration
RFC 2463 - ICMP IPv6
RFC 2474 - Differentiated Services (DiffServ) Precedence
RFC 2597 - Assured Forwarding
RFC 2598 - Expedited Forwarding
RFC 2571 - SNMP Management
RFC 3046 - DHCP Relay Agent Information Option
RFC 3376 - IGMP v3
RFC 3580 - 802.1X RADIUS
Voltage and Power Ratings

Voltage (Autoranging)

100 to 240 VAC

Current (Amperes)

1.4 - 0.8

Frequency

50 to 60Hz

Power Rating (kVA)

0.16

DC Input Voltages (RPS Input)

2A at 12V (3A at -52V)

Power Consumption

0% traffic: 25.9

10% traffic: 25.7

100% traffic: 26.1

ATIS weighted average: 25.8
