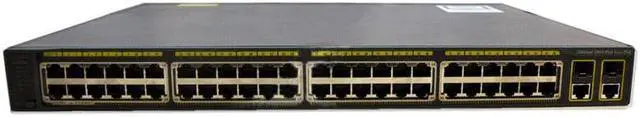

WS-C2960+48PST-L 2960 Plus Switch 2960 Plus 48 10/100 PoE + 2 1000BT +2 SFP LAN Base

WS-C2960+48PST-L Specification
Configurations

10/100 Ethernet Interfaces

48

Uplink Interfaces

2 SFP and 2 1000BASE-T

IOS Software Feature Set

LAN Base

Available PoE Power

370W (24 ports up to 15.4W )

Hardware

Flash memory

64 MB

DRAM

128 MB

Performance and Scalability

Forwarding bandwidth

16 Gbps

Maximum active VLANs

255

VLAN IDs available

4K

Maximum transmission unit (MTU) - L3 packet

9000 bytes

Jumbo frame - Ethernet frame

9018 bytes

Forwarding Rate: 64-Byte L3 Packets, Millions of packets per second

13.1

Mechanical

Dimensions (H x W x D)

1.73 x 17.70 x 13.07 in ( 4.4 x 45.0 x 33.2 cm)

Weight

12 lb ( 5.4K g)

Package Weight

20.26 lb ( 9.19 Kg)

Environmental Ranges

Operating temperature up to 5000 ft (1500 m)

23º to 113ºF

(-5º to 45ºC)

Operating temperature up to 10, 000 ft (3000 m)

23º to 104ºF

(-5º to 40ºC)

Short-term exception at sea level*

23º to 131ºF

(-5º to 55ºC)

Short-term exception up to 5000 feet (1500 m) *

23º to 122ºF

(-5º to 50ºC)

Short-term exception up to 10, 000 feet (3000 m) *

23º to 113ºF

(-5º to 45ºC)

Short-term exception up to 13, 000 feet (4000 m) *

23º to 104ºF

(-5º to 40ºC)

Storage temperature up to 15, 000 feet (4573 m)

23º to 158ºF

(-25º to 70ºC)

Operating altitude

Up to 10, 000 Feet

(Up to 3, 000 Meters)

Storage altitude

Up to 13, 000 Feet

(Up to 4, 000 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing

Sound Pressure, dBA

Typical,
LpAm: 41

Maximum,
LpAD: 44

Sound Power, dbA

Typical,
LwA: 51

Maximum,
LwAD: 54

MTBF in thousands of hours

312
