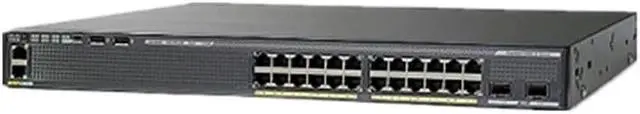

WS-C2960XR-24TS-I 2960-XR Switch 2960-XR 24 GigE, 4 x 1G SFP, IP Lite
- Product Code
- WS-C2960XR-24TS-I
- Enclosure Type
- Rack-mountable - 1U
- Feature Set
- IP Lite
- Uplink Interfaces
- 4 x 1G SFP
- Ports
- 24 x 10/10/1000 Ethernet Gigabit ports
- Forwarding Bandwidth
- 108Gbps
- Maximum stacking number
- 8
- Stack bandwidth
- 80G
- Switching Bandwidth
- 216Gbps
- RAM
- 512MB
- Flash Memory
- 128MB
- Dimensions
- 44.5 cm x 40.8 cm x 4.45 cm
- Package Weight
- 17.49 Kg
+
+
Overview
Specs
Reviews
WS-C2960XR-24TS-I Specification
Enclosure type
Rack-mountable - 1U
Ports
24 x 10/100/1000 + 4 x 1G SFP
Network management Interface
10/100 Mbps Ethernet (RJ-45)
Available PoE Power
None
Forwarding bandwidth (Gbps)
108Gbps
Maximum stacking number
8
Stack Bandwidth
80G
Forwarding Performance
71.4M pps
Switching bandwidth
216Gbps
Maximum active VLANs
1023
MAC Address Table Size
16K (default)
CPU
APM86392 600MHz dual core
RAM
512 MB
Flash Memory
128 MB
Status Indicators
Per-port status: Link integrity, disabled, activity, speed, and full duplex
System status: System, RPS, Stack link status, link duplex, and link speed
Expansion / Connectivity
Console ports
USB (Type-B), Ethernet (RJ-45)
Expansion Slot (s)
1 FlexStack-Plus slot and 1 power redundant slot
Stack Modules
C2960X-STACK
Stacking cable
CAB-STK-E- 0.5M FlexStack-Plus stacking cable with a 0.5 m length
CAB-STK-E-1M FlexStack-Plus stacking cable with a 1.0 m length
CAB-STK-E-3M FlexStack-Plus stacking cable with a 3.0 m length
Power supply
PWR-C2-250WAC
Power Device
Power supply - redundant - plug-in module
Power Redundancy
optional
Voltage range (Auto)
110V-240V
Power Consumption Operational
0.038 kVA
Miscellaneous
Width
17.5 Inches ( 44.5 cm)
Depth
16 Inches ( 40.8 cm)
Height
1.75 Inches ( 4.45 cm)
Weight
13.0 Pounds ( 5.9K g)
Package Weight
38.56 Pounds ( 17.49 Kg)
Rack Mounting Kit
Optional
MTBF in hours
557, 320
Enclosure type
Rack-mountable - 1U
Ports
24 x 10/100/1000 + 4 x 1G SFP
Network management Interface
10/100 Mbps Ethernet (RJ-45)
Available PoE Power
None
Forwarding bandwidth (Gbps)
108Gbps
Maximum stacking number
8
Stack Bandwidth
80G
Forwarding Performance
71.4M pps
Switching bandwidth
216Gbps
Maximum active VLANs
1023
MAC Address Table Size
16K (default)
CPU
APM86392 600MHz dual core
RAM
512 MB
Flash Memory
128 MB
Status Indicators
Per-port status: Link integrity, disabled, activity, speed, and full duplex
System status: System, RPS, Stack link status, link duplex, and link speed
Expansion / Connectivity
Console ports
USB (Type-B), Ethernet (RJ-45)
Expansion Slot (s)
1 FlexStack-Plus slot and 1 power redundant slot
Stack Modules
C2960X-STACK
Stacking cable
CAB-STK-E- 0.5M FlexStack-Plus stacking cable with a 0.5 m length
CAB-STK-E-1M FlexStack-Plus stacking cable with a 1.0 m length
CAB-STK-E-3M FlexStack-Plus stacking cable with a 3.0 m length
Power supply
PWR-C2-250WAC
Power Device
Power supply - redundant - plug-in module
Power Redundancy
optional
Voltage range (Auto)
110V-240V
Power Consumption Operational
0.038 kVA
Miscellaneous
Width
17.5 Inches ( 44.5 cm)
Depth
16 Inches ( 40.8 cm)
Height
1.75 Inches ( 4.45 cm)
Weight
13.0 Pounds ( 5.9K g)
Package Weight
38.56 Pounds ( 17.49 Kg)
Rack Mounting Kit
Optional
MTBF in hours
557, 320
