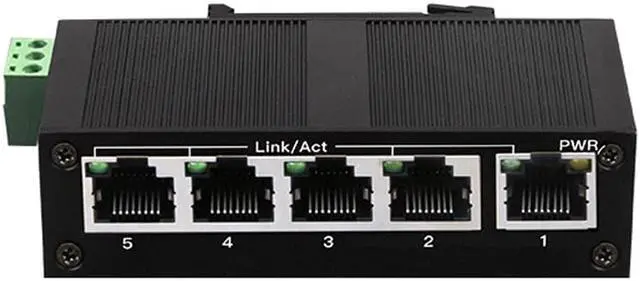

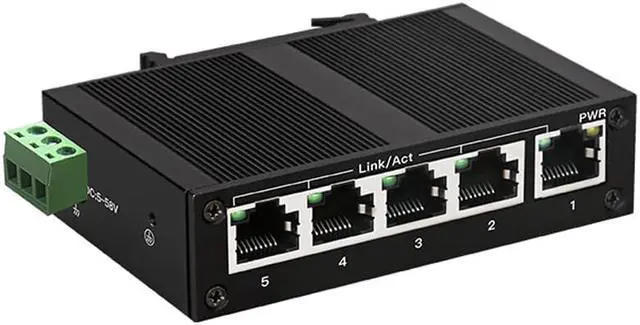

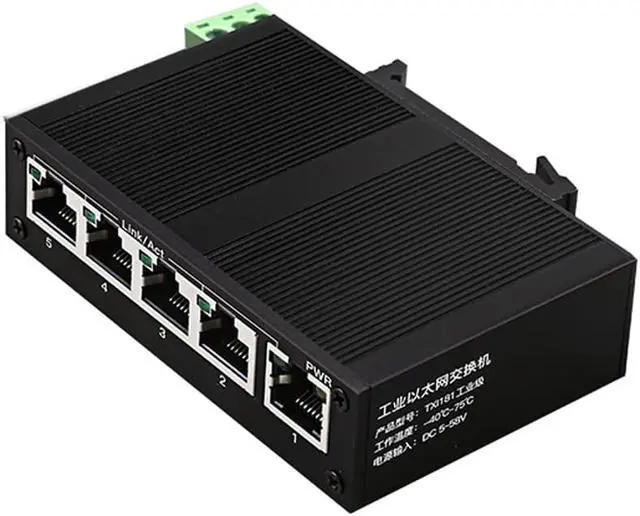

    Industrial Grade Fast Ethernet Network Switch 5-Port 10Mbps/100Mbps RJ45 Unmanaged Network Splitter Switch with DIN Rail IP40 Protective Metal Shell

    Be the first to review this product...
    • Chip:IP175GI
    • Supported standards and protocols:IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802. 3x.IEEE802. 3az
    • Interface:5 x 10/100Mbps adaptive RJ45 ports (Auto MDI/MDIX)
    • Network Media.
    • 10Base-T:Category 3 or higher UTP
    • 100Base-TX:Category 5 CTP and above
    • Transmission mode:store-and-forward
    • MAC address capacity:1K
    • Switching capacity:1Gbps
    • Packet forwarding rate:744Kpps
    • Indicator Light
    • Per Unit:Power (yellow)
    • Per port:Link/Act (green)
    • Power supply:DC:5-58V
    • Power consumption:Max: 0.7K
    • Dimension (LXHXH):96*61*25. 3mm
    • Use environment.
    • Operating temperature:-40°C-75"
    • Storage temperature:-40°C-75°C
    • Operating humidity:10%-90% RH non-condensing
    • Storage humidity:5%-90% RH non-condensing
    +
    +
    Overview
    Specs
    Reviews


    Chip:IP175GI

    Supported standards and protocols:IEEE802.3, IEEE802.3i, IEEE 802.3u, IEEE802. 3x.IEEE802. 3az

    Interface:5 x 10/100Mbps adaptive RJ45 ports (Auto MDI/MDIX)

    Network Media.

    10Base-T:Category 3 or higher UTP

    100Base-TX:Category 5 CTP and above

    Transmission mode:store-and-forward

    MAC address capacity:1K

    Switching capacity:1Gbps

    Packet forwarding rate:744Kpps



    Indicator Light

    Per Unit:Power (yellow)

    Per port:Link/Act (green)

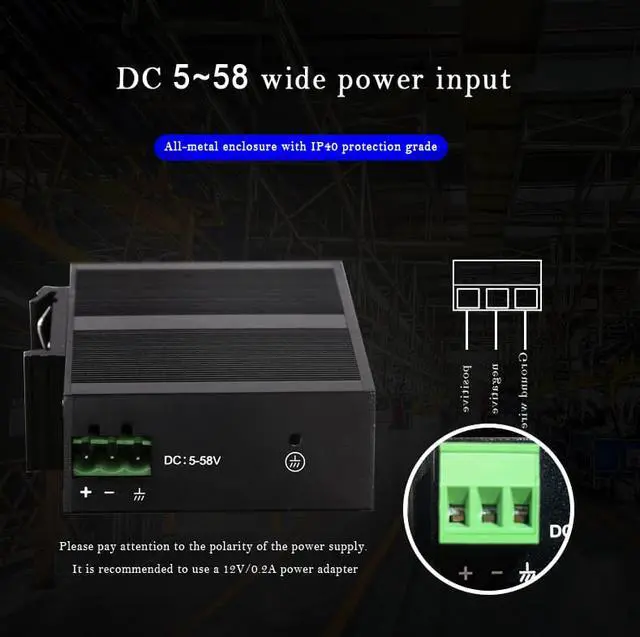

    Power supply:DC:5-58V

    Power consumption:Max: 0.7K

    Dimension (LXHXH):96*61*25. 3mm



    Use environment.

    Operating temperature:-40°C-75"

    Storage temperature:-40°C-75°C

    Operating humidity:10%-90% RH non-condensing

    Storage humidity:5%-90% RH non-condensing
