PCI-E 1X to 2 Ports Internal USB 3.0 19Pin 20Pin Header for Front Panel,USB 3.0 5Gbps to PCIe Expansion Card Adapter with High & Low Profile Bracket for Desktop Computer Motherboard
- PCIe x1 to Dual USB 3.0 19Pin Internal Headers Expansion Card
- For USB Front Panel, Internal Card Reader,USB Hub Expansion

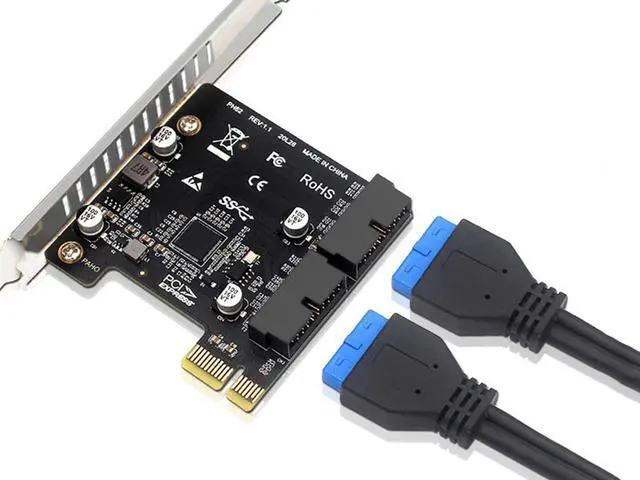

- The TWO 19Pin USB 3.0 Headers will extend to Desktop PCs Front Panel 4X USB-A Ports
- Supports USB 3.0 5Gbps Data Transfer and 5V1A Power Supply

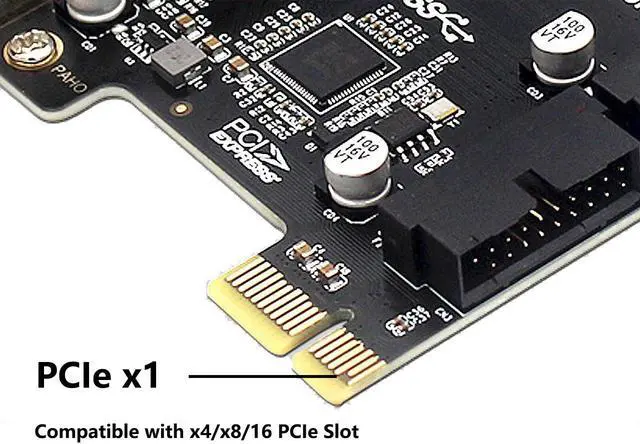

- PCIe X1 interface is requested, will works on PCIe X1, X2, X4, X8, X16 slot,
- Does not work on PCI slot!
+
+
Overview
Specs
Reviews
Feature
This is a PCIE X1 interface to 2X 5Gbps 19Pin USB 3.0 header expansion card.
The 2X 19Pin USB 3.0 header will extend to Desktop PCs front panel 4X USB-A ports. Users will add 4X 5Gbps max USB-A ports on Desktop PCs for large data transfers. Will light up 4X USB 3.0 devices which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, gaming pad, smartphone, tablet, and more USB-A interface devices.
Compatible with USB 3.0 Specification.Allow each 5Gbps USB-A port supports 5Gbps data transfer speed and 5V1A power supply
Based on PCIE 2.0 standard, will compatible with PCIE x2,x4,x8,x16 slot

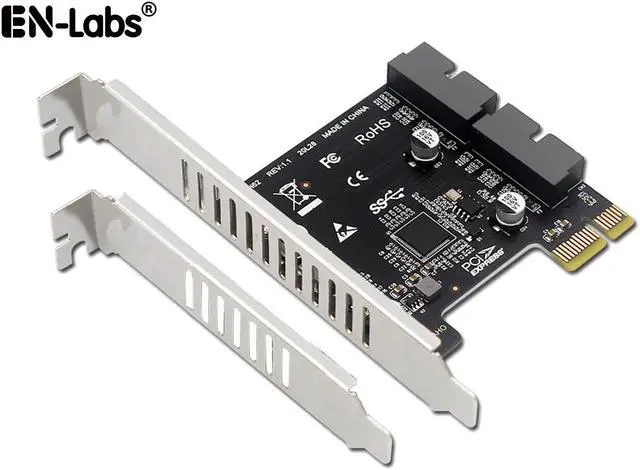

High-profile and low-profile brackets are including
Based on VL805 5Gbps USB 3.0 host controller, will compatible with AMD, and Intel hardware platform Desktop PCs.
Driver free for Win 8, Win 10 and Win 11. Extra driver is need for Win XP ,Win Vista and Win7
Note:
This is PCIe expansion card, does not support PCI .
One free PCIe x1 Slot on motherboard is request,compatible with PCIE x2,x4,x8,x16 slot
Does not support Limux System
Must install driver on Windows 7 (32/64bit) and previous systems
This is a PCIE X1 interface to 2X 5Gbps 19Pin USB 3.0 header expansion card.
The 2X 19Pin USB 3.0 header will extend to Desktop PCs front panel 4X USB-A ports. Users will add 4X 5Gbps max USB-A ports on Desktop PCs for large data transfers. Will light up 4X USB 3.0 devices which including USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, gaming pad, smartphone, tablet, and more USB-A interface devices.
Compatible with USB 3.0 Specification.Allow each 5Gbps USB-A port supports 5Gbps data transfer speed and 5V1A power supply
Based on PCIE 2.0 standard, will compatible with PCIE x2,x4,x8,x16 slot
High-profile and low-profile brackets are including
Based on VL805 5Gbps USB 3.0 host controller, will compatible with AMD, and Intel hardware platform Desktop PCs.
Driver free for Win 8, Win 10 and Win 11. Extra driver is need for Win XP ,Win Vista and Win7
Note:
This is PCIe expansion card, does not support PCI .
One free PCIe x1 Slot on motherboard is request,compatible with PCIE x2,x4,x8,x16 slot
Does not support Limux System
Must install driver on Windows 7 (32/64bit) and previous systems
