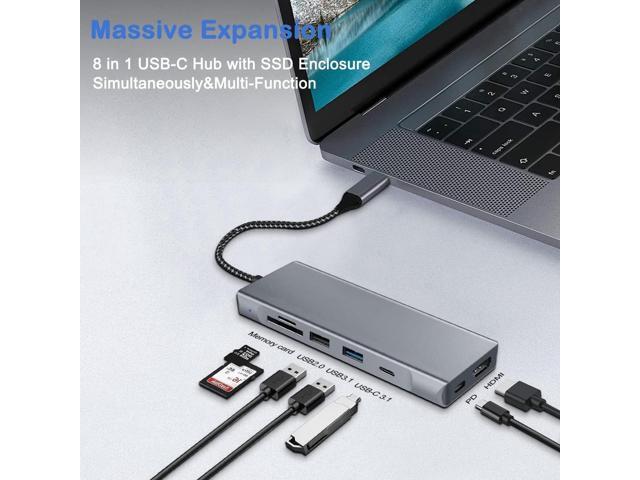

USB-C Hub with M.2 NVMe/SATA SSD Enclosure, 8 in 1 USB C Hub Adapter Fits PCIe 3.0 NVMe M.2 SSD, 2.5-inch SATA HDD with 4K HDMI, 10Gbps USB-C 3.1 & USB 3.1, USB 2.0, SD/Micro SD, 100W PD for Laptops

Note:

1. SSD enclosure is for M. 2 NVME/NGFF (SATA) M Key& (M+B) Key SSD. Applicable to sizes 2242/2260/2280 SSD.

2. NOT Compatible with M. 2 PCIe AHCI SSDs, M. 2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and non-M. 2 form factor SSDs.

3. Brand new SSD drive should be partition and format it first under disk management, then it can be used normally, otherwise it cannot be used.

4. USB C 3.1 Gen 2 10Gbps to M. 2 NVME PCIe & USB C 3.1 Gen 2 6Gbps to M. 2 SATA PCIe. 5. TF and SD slot can not use at the same time. 6. 100W PD charging port is for charging only, not for data transmission.

7. USB-C 3.1 Port is for data transmission only. 8. To protect your SSD, It is not recommended to insert and remove the SSD multiple times. 10. Before use, please confirm the PC devices USB-C port can be support fully function transmission(audio/video, data PowerDeliver etc).

11. To enable HDMI funciton, your laptop and phone USB C port need to support DP (Video) output Protocol.

Important Notes

1. If you have inserted a new NVMe card into the device, it may need to be initialized before it can be used. You can do this by opening the Disk Management utility in Windows and following the instructions to initialize the disk.

2. If the NVMe card was previously used and worked properly, you may need to press and hold the button on the device for a longer period, around 7-8 seconds, to enable the card.

3. If the NVMe card is not recognized at all, it is possible that the issue could be related to the lack of partitioning on the new drive. Please check if the NVMe card has been partitioned before using it in the enclosure.

4. To use the device, press the button on the device for about 1 second to turn it on and for 5 seconds to turn it off. The white light indicates that the device is working, while the blue light indicates that the device is in the off state.
