Specification:
Access Control Keypad:
Card Type: EM-ID card
Frequency: 125Khz
Read Speed:
Reading Range: 0-10mm
Input Voltage: DC 12V
Operating Current:
Access Mode: cards, passwords, cards+passwords
Size: 120 * 76 * 28mm/4.7 * 3.0 * 1.1in
Power Supply:
Input Voltage: AC 110-240V (Worldwide voltage)
Input Frequency: 50-60Hz
Output Voltage: DC 12V/3A
Adjustable Locking Delay: 0~15s
Size: 120 * 95 * 38mm/4.7 * 3.7 * 1.5in
Keyfobs:
Operation Frequency: 125KHz
Reading distance: 3~10cm / 1.18-3.94in
Each keyfob has an unique ID number. Read only and not rewritable

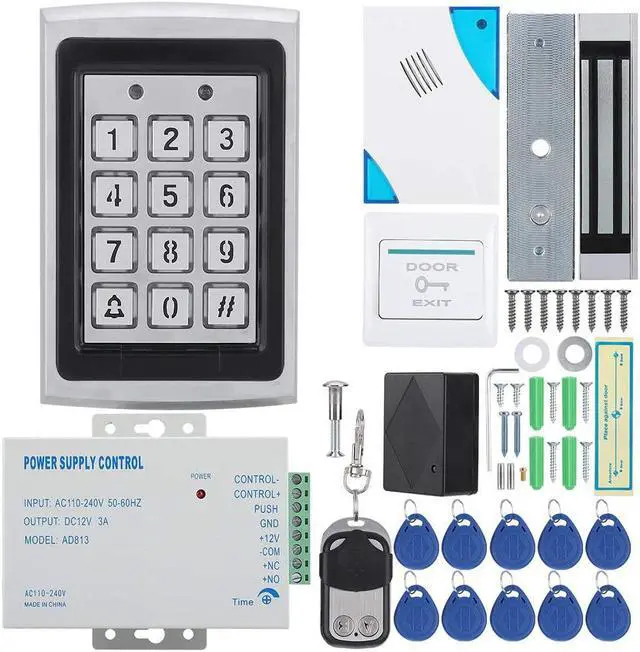

Package list:
1 * Access Keypad
1 * Power Supply
1 * 180kg Magnetic Lock
1 * Dingdong Doorbell
1 * Remote Control
10 * Keyfobs
1 * Exit Button
3 * User Manual
1 * Package Mounting Hardware Kit
