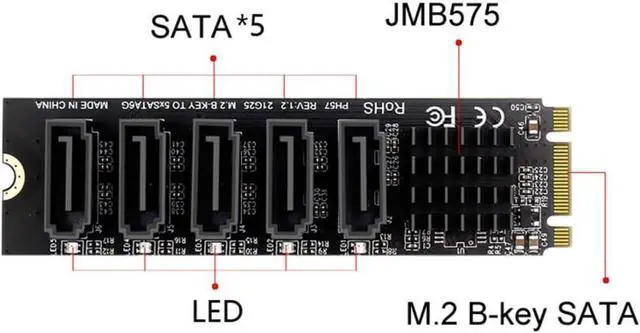

M.2 B+M-Key SATA to 5 SATA 3.0 Port Multiplier Extension Card Adapter for Motherboard SATA Hard Drive Port Extension JMB575 Chipset

1)
Note: The motherboard must support PM port replication mode to recognize 5 hard disks. If it does not support PM function, it cannot recognize 5 hard disks.
2) Note: The NGFF slot must support the SATA protocol, otherwise it cannot be recognized.
3) JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.
4) With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port or a 5 to 1 port SATA 6Gbps Port.
5) JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor.
