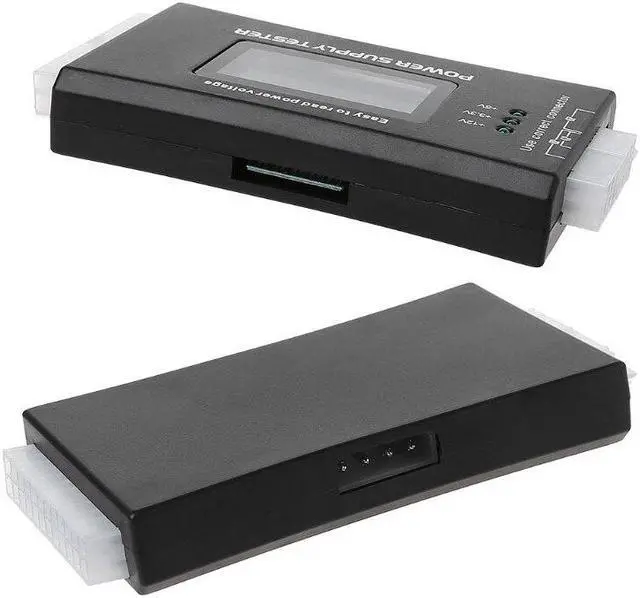

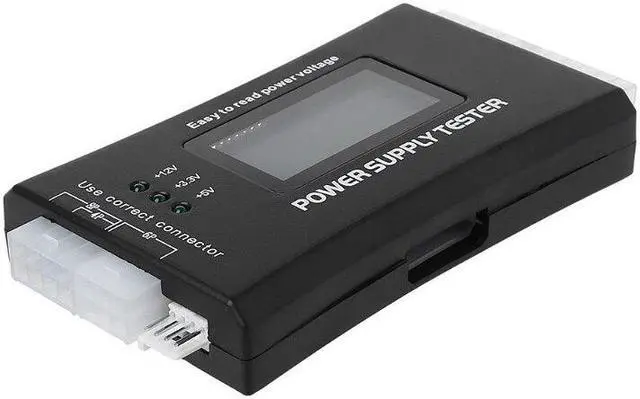

2020 New Digital LCD Power Supply Tester Multifunction Computer 20 24 Pin Sata LCD PSU HD ATX BTX Voltage Test Source

100% brand new and high quality

Color:Black

Voltage source : 20/24 pin ( ATX - connector )

Voltage test : +12V , -12V , +5V , -5V , +3.3V , +5V Stand by (SB) 12V power Good ( PG )

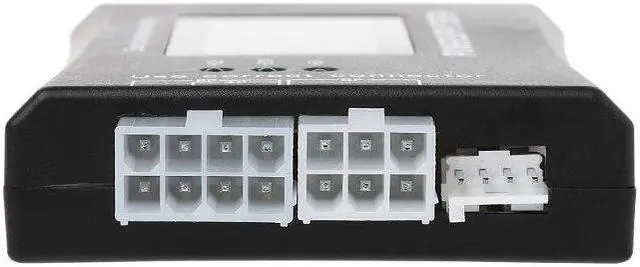

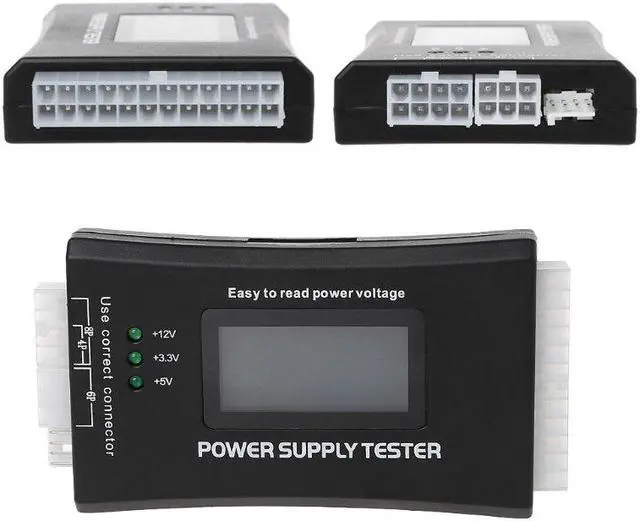

Connectors : Floppy, HDD , CDROM , SATA , 4pin ( P4 ) , 8pin ( Dual-CPU ) , 6pin ( PCI-Express ) Product Introduction:

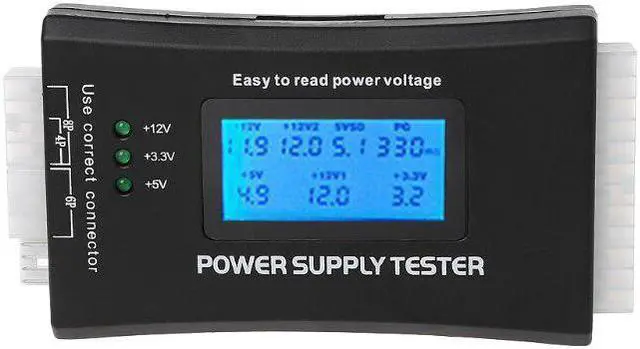

The power supply tester is a robust voltage, tester for PC-power supply, ATX . BTX and ITX compliant, power supplies can be tested. LCD`s indicate the status of voltage .The PC / SPS is suitable for the ambitious hobby user , as well as for a quick functional check in specialized trade. The methods of operation:

Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite.

Power on the supply of power, will hear "DuDu" ring , if no flicker then the power supply output voltage is normal.

If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a "DuDu" long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed.

Size:12cm x 6cm/4.72" x 2.36"

Quantity:1Pc

As different computers display colors differently, the color of the actual item may vary slightly from the above images, thanks for your understanding.
