Checktel VoIP - SIP Telephone Call Recorder, Line or Station Side, SIP Trunk or Cloud Telephony, 2 x 50 concurrent calls, 2 x 150 Stations. Metal 19 Inch - 1U Gateway Housing. Front Color: Silver

Wire line Telephony Call Recorder, VoIP, 2 x 50 concurrent Calls, 300 Stations/End points.
Line or Station side.
SIP Trunk or Cloud Telephony.
Company grade telephone call recording.

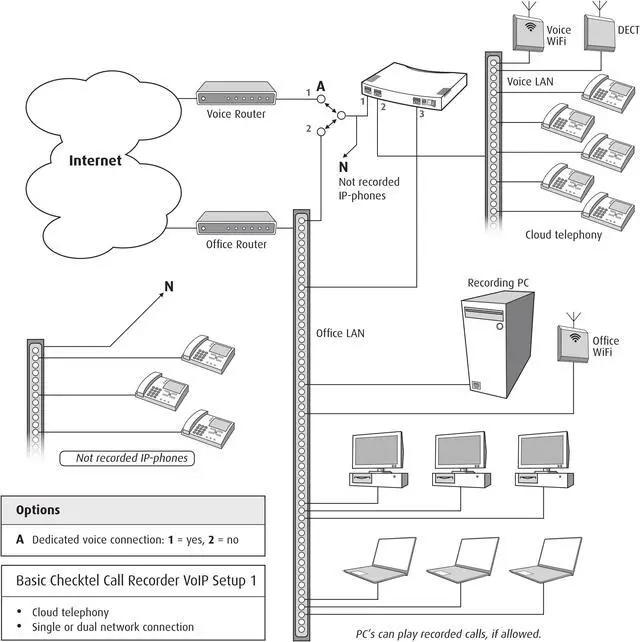

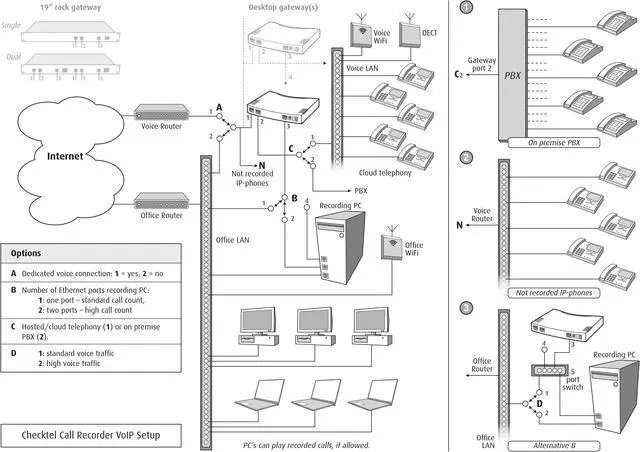

Checktel Call Recording solutions offers high quality and company wide automatic call recording. Implemented on the line side / network side at the customers premise, Checktel can be used with an onsite PBX or Hosted PBX
Mainly software based and therefore competitive priced.
Software application on Windows platform for both recording and playback.
Original sound quality with two sound channels.
No compression or merging of channels, therefore excellent sound quality at reproduction.
Recorded calls can be played back on all major platforms.
It offers
- automatic call recording both incoming and outgoing telephone calls
- line side based: can be used with all telephony providers and telephone systems
- records all installed phones: wired, softphones, DECT, WiFi (BYOD) etc.
- recording of original digital voice data, no compression
- two separate audio channels (stereo) for near and distant party
- easy to use multi user search and playback software
- recorded calls can be played on all platforms - calls can be exported to audio CD
- integrity check secures non manipulation.

Less Concurrent Calls? Look at the 50, 30 or 8 Concurrent Calls versions

Specifications

Technical details

Network type: SIP trunk and hosted voice
Connection type: Ethernet
Number of VoIP accounts: unlimited
Concurrent calls 2 x 50
Expandable yes
SIP version: 2.0
Supported codecs G. 711A, G. 711mu, G. 722, G. 729 Encryption: SRTP
Connection to recording system: Ethernet

Hardware

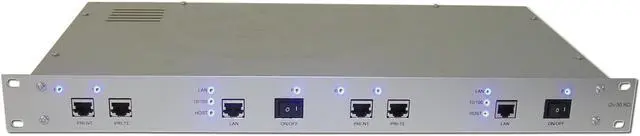

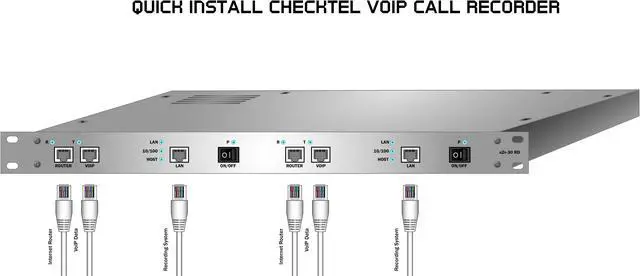

Checktel Gateway: 2 x 50 concurrent Calls
Ethernet ports 100 Mbits/s: 4
Ethernet LAN 100 Mbits/s: 2

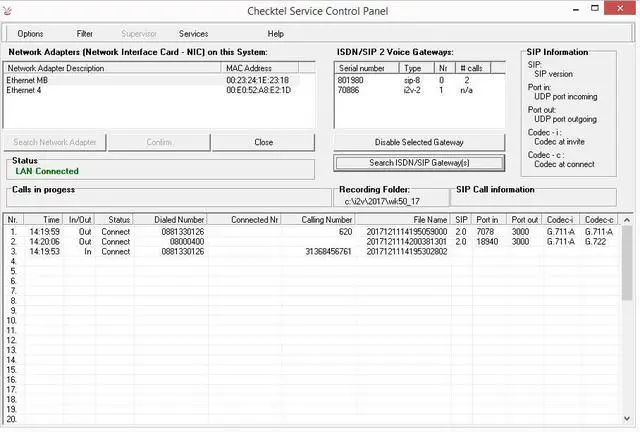

Recording software

Platform Windows desktop (8.1..11), Windows Server (2012..2019)
Recording format: open standards / Telephony Codec in WAV container, 2 Channels ('Stereo')

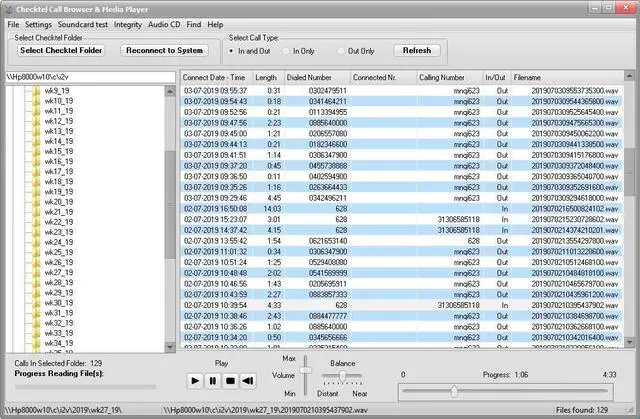

Playback software

Multi user: Yes, Max. Number: 10
Additional licences: not required
Platform Windows
Windows versions: Desktop 8.1..11, Server 2008..2019
Connection with server: LAN/Ethernet

Conditions

Conditions for use: user supplied Windows system and VoIP/SIP account

Packaging content

Checktel gateway: 19 inch, 1U (44/48 x23x4 cm) Mains connection: 90.. 260v-50/60Hz AC, IEC 60320 C14
Software package: Recording software, playback software

Packaging weight and dimensions:
width: 20.1" / 520 mm depth 12.6" / 320 mm height 4.7" / 120 mm
weight: 7.4" / 3.300 g
GTIN EAN: 7091179108959
Model: s2v-50-rds Order nr.: 2934640
