2.5GBase-T PCIe Network Adapter RTL8125B 2500/1000/100Mbps PCI Express Gigabit Ethernet Card RJ45 LAN Controller Support PXE for Windows/Linux/MAC with Low Profile

2.5GBase-T PCIe Network Adapter RTL8125B 2500/1000/100Mbps PCI Express Gigabit Ethernet Card RJ45 LAN Controller Support PXE for Windows/Linux/MAC with Low Profile



PCI Express RTL8125B 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet.



Product Feature

It offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.



Specification

Chipset:RTL8125B

Port number:1* RJ45

Standard:IEEE 802.3?IEEE 802.3u?IEEE 802.3ab?IEEE 802.3az?IEEE 802.3bz

Network media:10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP

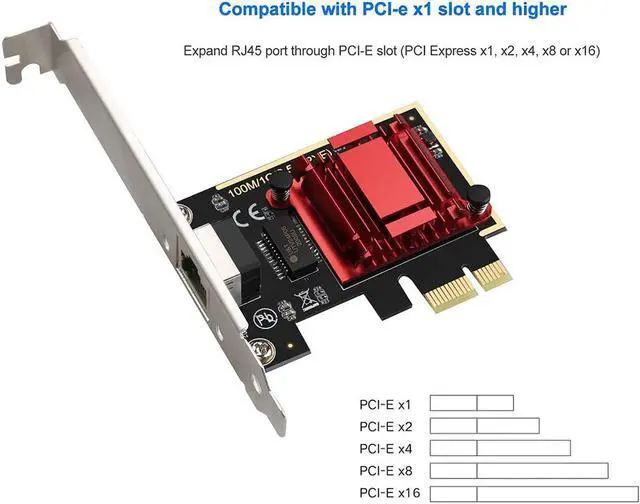

Data rate:PCI Express 1x slot

Auto MDIX:YES

Full Duplex Support:YES

LED Indicator:100M/1G/2.5G Link/Act

Dimension:71.5*50*1.6mm

Support OS:Windows10(32/64), Win7 (32/64), Win8,8.1 (32/64),Windows Server 2012,2008,Linux,Mac OS

Support PXE function.

Support Wake on LAN

Support 2.5G and 1G Lite mode

Compatible with NBASE-T Alliance PHY Specification

Supports PCI Express 2.1

Supports 1-Lane 2.5G/5Gbps PCI Express Bus

Compliant with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab

Supports IEEE 802.1P Layer 2 Priority Encoding

Supports IEEE 802.1Q VLAN tagging

Supports IEEE802.3az(Energy Efficient Ethernet)

Supports IEEE802.3bz(2.5GBASE-T)

Supports Full Duplex flow control(IEEE 802 .3x)



Packing list

1xPCIE 2.5G LAN Card

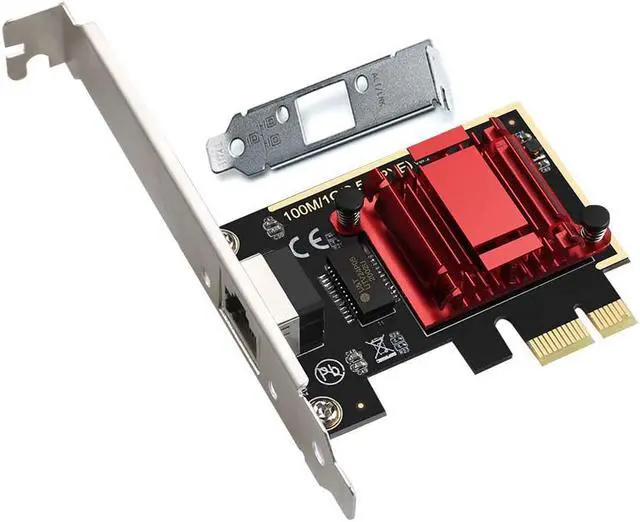

1x Low profile Bracket
