Name: GLOTRENDS LE8105 2.5Gbps PCIe Ethernet Network Card, RTL8125BG Chip, RJ45 LAN Port, PCIe X1 Installation
Brand: GLOTRENDS
SKU: 14U-0131-00002
Price: 23.99 CAD
Availability: InStock

GLOTRENDS LE8105 2.5Gbps PCIe Ethernet Network Card, RTL8125BG Chip, RJ45 LAN Port, PCIe X1 Installation

Ports: 1-port, 2.5Gbps

1-port, 1Gbps
1-port, 2.5Gbps
2-port, 1Gbps
2-port(1Gbps) + 2-port(2.5Gbps)
4-port, 2.5Gbps
4-port, 1Gbps

With the 2.5G Base-T Technology, GLOTRENDS LE8105 2.5Gbps network card can reach 2.5x faster than typical Gigabit adapters.
Chip: RTL8125BG
Play and Plug, no need extra driver. But if your PC does not recognize the network card or the speed does not reach the 2.5Gb level, please reinstall the driver.
Note: Please make sure that both connected ports support 2.5Gb and that the connected cable is at least CAT5E
Driver Download Link: https://drive.google.com/drive/folders/15UkeFpoDpkyQyv3zD8Z3MxaYZ_Es2Jxj?usp=sharing
Wake-On-LAN and RealWow Technology (remote wake-up): remotely power on/off your computer with WOL, good for centralized management
LED Indicators: Yellow for 100/1000Mbps signal, Green for 2.5Gbps
Heatsink for heat dissipation
8cm Low-Profile Bracket and 12cm Full-Height Bracket

Model: LE8105

Internal Interface	PCI-Express 2.0 X1
External Interface	2.5 Gigabit
Chip	RTL8125BG
LED Indicator	Yellow for 100/1000Mbps signal, Green for 2.5Gbps
OS Compatibility	Windows/Linux/MAC OS/DOS; Centos/RHEL/Ubuntu/Debian/DSM/OpenWrt/PFSense/OPNSerse/IKUAI; VMWare ESXi
Installation	Play and Plug, no need extra driver. But if your PC does not recognize the network card or the speed

2.5 Gigabit Ethernet Network Card

With the 2.5G Base-T Technology, GLOTRENDS LE8105 2.5Gbps network card can reach 2.5x faster than typical Gigabit adapters.

PCI Express 10/100/1000/2500M Ethernet on Motherboard, Notebook, or Embedded systems

Integrated 10M BASE-Te and 100/1000M/2.5G BASE-T 802.3 compatible transceiver
Supports 2.5G Lite (1G data rate) mode
Auto-Negotiation with Extended Next Page capability (XNP)
Compatible with NBASE-TTM Alliance PHY Specification
Supports PCI Express 2.1
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation Task-offload (Large send v1 and Large send v2) support
Supports jumbo frame to 16K bytes
Supports quad core Receive-Side Scaling (RSS)
Supports Protocol Offload (ARP & NS)

Internal 2.5Gb LAN Network for Instant File Sharing

Please make sure that both connected ports support 2.5Gb
The connected cable is at least CAT5E

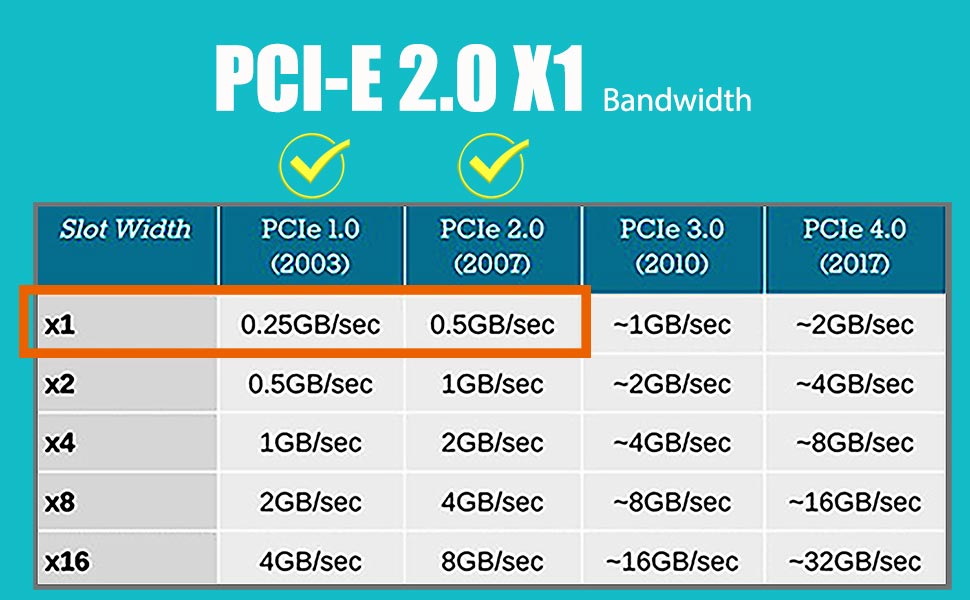

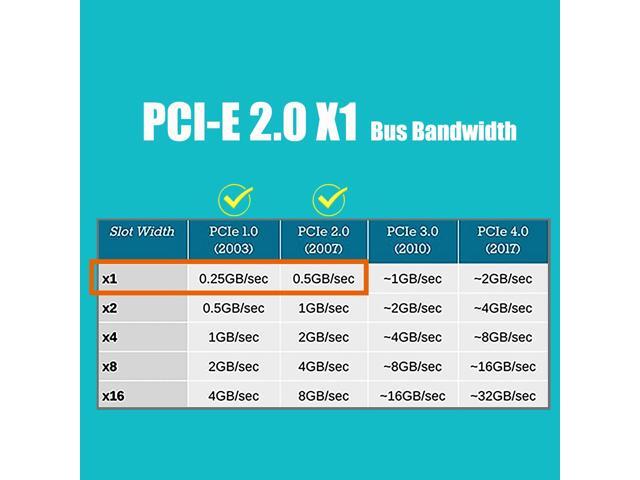

PCI-Express 2.0 X1 Speed

PCI-Express 2.0 X1 bus bandwidth offer 4Gbps speed at max
RTL8125BG converts PCI-Express 2.0 X1 to the Ethernet signal at full speed (10/100/1000Mbps/2.5Gbps)

Package Including

2.5Gbps PCI-E NIC Network Card
12cm Regular-profile bracket and 8cm Low-profile bracket

Products	LE8111H	LE8202	LE8204H	LE8105	LE8245F
Internal Interface	PCI-Express 1.0 X1	PCI-Express 1.0 X1	PCI-Express 2.0 X1	PCI-Express 2.0 X1	PCI-Express 2.0 X2
External Interface	100/1000Mbps Ethernet	2 x 100/1000Mbps Ethernet	4 x 100/1000Mbps Ethernet	2.5Gbps	2 x 100/1000Mbps + 2 x 2.5Gbps
