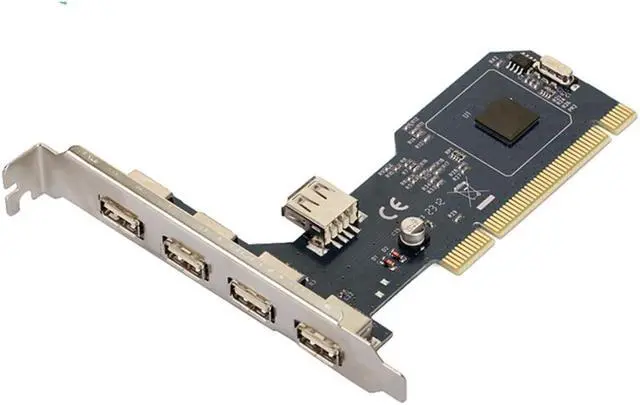

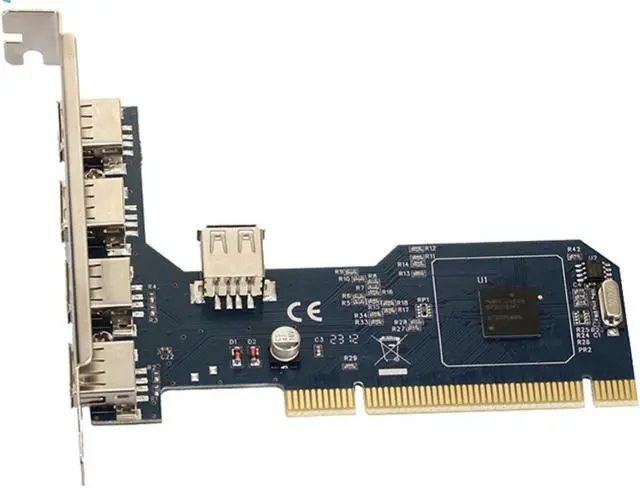

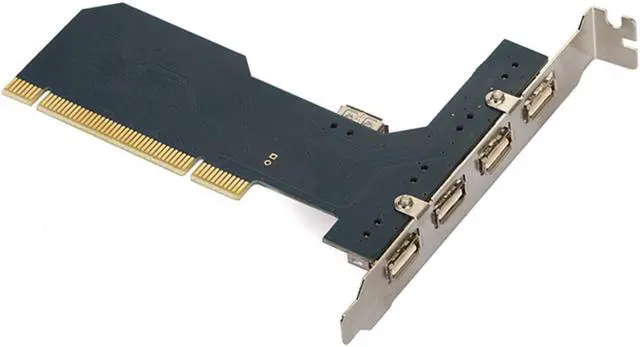

PCI to 5 port usb2.0 Riser adapter card USB Expansion card NEC for Vista Win ME XP 2000 98 Server 2008

Model number
TXB04S
Chipset
NEC/uPD720101
Port number
5* USB2.O
Interface
PCI slot
Dimension
11S*83.6*89mm
Support OS

Windows®10(32/64), 8/ 8.1 (32/64), 7 (32/64), Vista(32/64), XP(3254), 2000
Windows Server® 2012, 2008 R2, 2003(32/64)
Mac OS® 10.x (Intel based, tested up to 10.9)
Linux 2.4.x and later (Tested up to 3.5)
Environment
Operating Temperature:O ®C-50 %C
Relative Humidity: 10% .90%(non-condensing)
Storage Temperature: -0®C-80%C
Relative Humidity: 5%-90%(non-condensing)
Features
USB2.O Specification compliant, backward compatible with USB1.1
5 external USB2.0 ports
USB2.O data transfer rate up to 480Mbps

· Compliant with Universal Serial Bus Specification Revision 2.0 (Data rate 1.5/12/480 Mbps)
· Compliant with Open Host Controller Interface Specification forUSB Rev 1.Oa
· Compliant with Enhanced Host Controller Interface Specification for USB Rev 1.O
· PCI mult-function device consists of two OHCI host controller cores for ull-low-speed signaling and one EHCI host controller core for high-speed signaling.
. Root hub with 5 (max.) downstream facing ports which are shared by OHCI and EHCI host controller cores.
· All downstream facing ports can handle high-speed (480 Mbps), ullspeed (12 Mbps), and low-speed (1.5 Mbps) transaction.
· Configurable number of downstream facing ports (2 to 5)
· 32-bit 33 MHz host interface compliant to PCI Specification release 22
· Supports PCI Mobile Design Guide Revision 1.1
· Supports PCI-Bus Power Management Interface Specification release 1.1
. PCI bus bus-master access
· System clock is generated by 30 MHz X'tal or 48 MHz clock input.
System clock frequency should be set from system software (BIOS) or EEPROM. More detail, see pPD720101
User's Manual.
. Operational registers direct-mapped to PCI memory space
· Legacy support for all downstream facing ports. Legacy support features allow easy migration for motherboard implementation.
· 33V power supply, PCI signal pins have 5 V tolerant circuit.

Note
the main product (without affecting the normal use, the configuration has increased or decreased)
Compare the detail sizes with yours, please allow 1-3cm error, due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
