Name: GLOTRENDS SA3116J 16 Ports PCIe SATA 3.0 Expansion Card, Including SATA Cables and 1:5 SATA Splitter Power Cable, Compatible with Windows,Linux,Mac OS,NAS
Brand: GLOTRENDS
SKU: 17Z-00SW-00030
Price: 257.50 CAD
Availability: InStock
Rating: 4 (9 reviews)

GLOTRENDS SA3116J 16 Ports PCIe SATA 3.0 Expansion Card, Including SATA Cables and 1:5 SATA Splitter Power Cable, Compatible with Windows,Linux,Mac OS,NAS

Option: 16-Port, X1

20-Port, X1
16-Port, X1
6-Port, X2
4-Port, X1
24-port ,X8

16 Port PCIe X1 SATA Adapter Card: PCI-Express X1 extends 16 x SATA III 6Gbps ports, so PC can access 16 x SATA drivers at the same time. You can setup a storage pool with 16 x SATA disks, or configure Software RAID in windows/Mac OS/Linux. (Noted: Can not support Hardware RAID)
Based on 3 x JMB575+1 x ASM1064 chip, Upstream PCI-Express 3.0 X1 Speed: 16 x SATA III 6Gbps ports share PCI-Express 3.0 X1 bandwidth (8Gbps), so all 16 x SATA III drivers can not reach 6Gbps at the same time.
Advantages and Disadvantages: This SATA adapter can connect with 16 x SATA disks, but only PCI-Express 3.0 X1 Speed at max. It is an economical and practical mass storage solution.
OS Compatibility: Plug-and-play in Windows/Mac OS/Linux/NAS (Note: Not support Windows XP)
For Windows 7, please reinstall the driver according to the manual, download link: https://drive.google.com/drive/folders/16G_sGjexuniyPuJmluL2YRWH-z-NZOli?usp=sharing
Accessories: 16 x SATA III cable; 3 x 1:5 SATA Splitter Power Cable

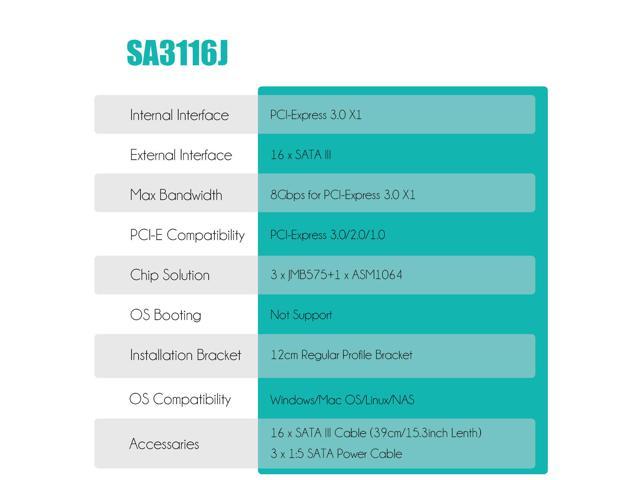

Model: SA3116J

Internal Interface	PCI-Express 3.0 X1
External Interface	16 x SATA III
Total Bandwidth	1GB/s
Chip Solution	3 x JMB575+1 x ASM1064
OS Boot	No
OS Compatibility	Windows/Mac OS/Linux/NAS (no support Windows XP)
SATA Controller Mode	AHCI
LED Indicator	Red color is working status, Red flashing is data reading/writing
Accessaries	16 x SATA III cable; 3 x 1:5 SATA Splitter Power Cable

16 Port PCIe 3.0 X1 SATA Adapter

PCI-Express X1 extends 16 x SATA III 6Gbps ports, so the Desktop PC/Server/NAS can access 16 x SATA drivers at the same time.
Set up a storage pool with 16 x SATA disks, and configure Software RAID in windows/Mac OS/Linux. (Note: Not support Hardware RAID)
Widely OS Compatibility: No need extra driver. Plug and play in Windows/Mac OS/Linux/NAS/UBUNTU/ESXI. (Note: Not support OS Booting)
Includes all accessories, ready for operation: 16 x SATA III cable; 3 x 1:5 SATA Splitter Power Cable

PCI-Express 3.0 X1 Speed

Most motherboards have a free PCI-Express X1 interface.
Use this PCI-Express X1 interface to connect a 16-port SATA hard drive storage pool
This is a high-capacity storage solution with the advantage of occupying only one PCI-Express X1 interface
PCI-Express 3.0 X1 (8Gbps) is fast enough for most needs

Bandwidth Allocation

SATA1-SATA15: ~41.5MB/s
SATA16: ~207.5MB/s

All cables are provided

3 x 1:5 SATA Splitter Power Cable (170mm:800mm:800mm:800mm)
16 x SATA III cable (350mm)

Package Including

16 port PCIe SATA Adapter
16 x SATA III cable
3 x 1:5 SATA Splitter Power Cable

Products	SA3034A	SA3026	SA3112J	SA3116J	SA3120J	SA3824A
Internal Interface	PCI-Express 3.0 X1	PCI-Express 3.0 X2	PCI-Express 3.0 X1	PCI-Express 3.0 X1	PCI-Express 3.0 X1	PCI-Express 3.0 X8
External Interface	4 x SATA III	6 x SATA III	12 x SATA III	16 x SATA III	20 x SATA III	24 x SATA III
Total Bandwidth	1GB/s	2GB/s	1GB/s	1GB/s	1GB/s	8GB/s
OS Boot	Yes	No	No	No	No	No
