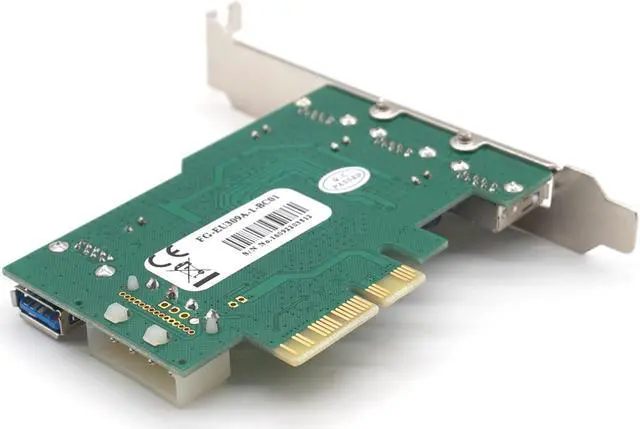

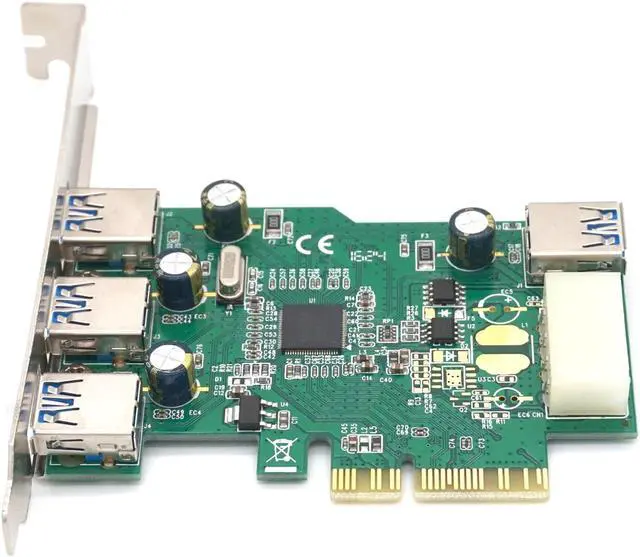

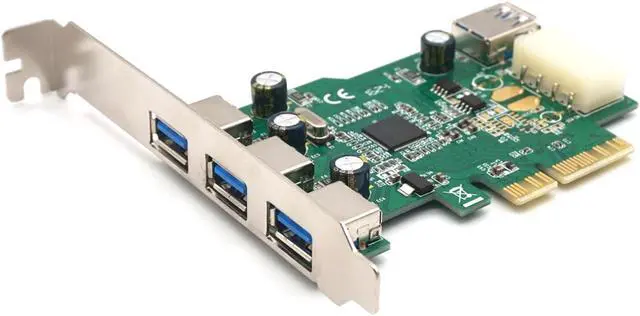

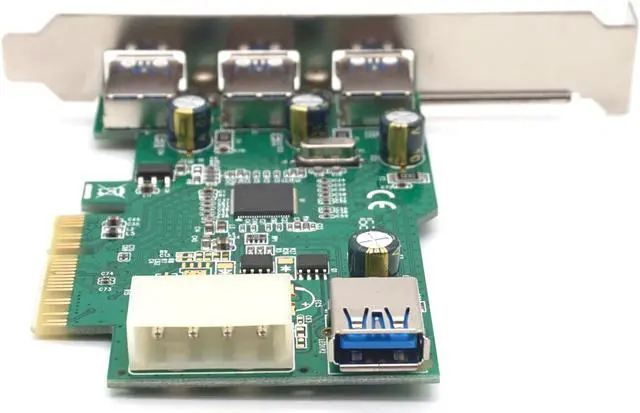

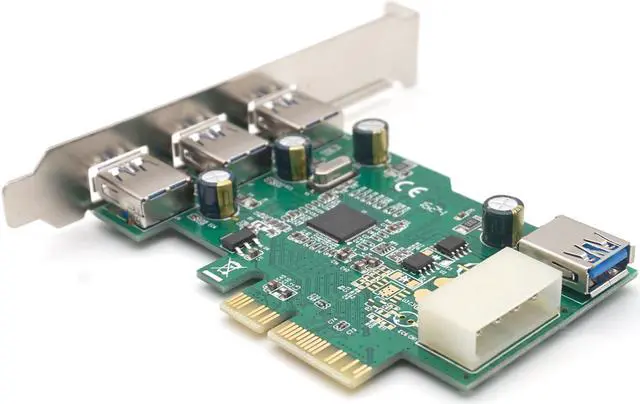

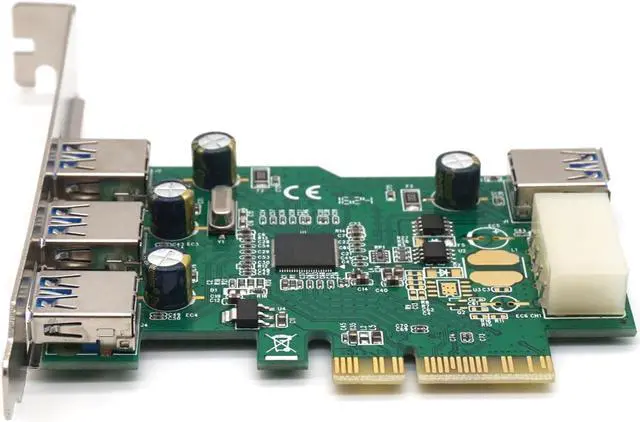

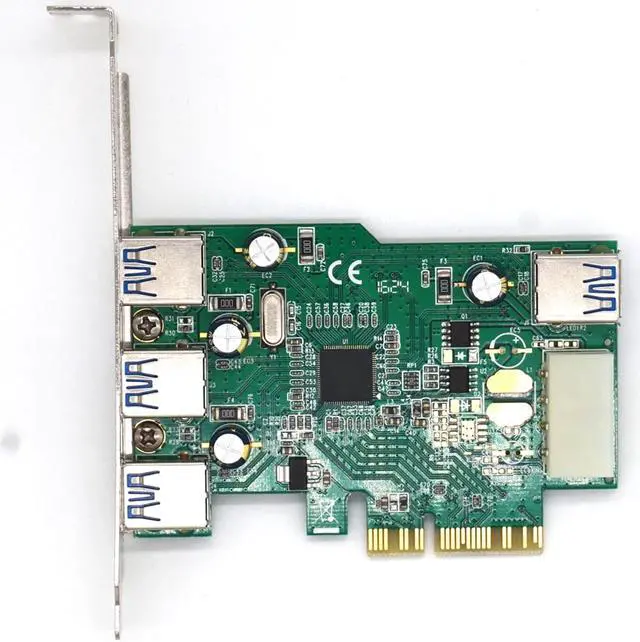

Weastlinks EU309A 4 Port USB3.0 5Gb Super Speed PCI Express Controller Card Chipset for Eton EJ198
- Supports 3 External and 1 Internal USB ports Max. 5V/900mA power output to each USB 3.0 Port(with PSU connected).
- Complies with PCI Express Base Specification Revision 2.0,Supports PCI Express x2 Lane interface with throughput up to 10 Gbps.
+
+
Overview
Specs
Reviews
About Description:
100% Brand New And High quality.
Chipset for Eton EJ198 (FG-EU309A)
Features:
10 times faster than High-Speed USB 2.0
Supports PCI Express x2 Lane interface
Low profile computer casing supported
Specification
Complies with PCI Express Base Specification Revision 2.0
Supports PCI Express x2 Lane interface with throughput up to 10 Gbps
Complies with Universal Serial Bus 3.0 specification Revision 1.0
Backward compatible to USB 2.0 and PCI-Express 1.0
Supports the following data transfer rate:
- USB 2.0 mode up to 480 Mbps*
- USB 3.0 mode up to 5 Gbps*
Supports 3 External and 1 Internal USB ports Max. 5V/900mA power output to each USB 3.0 Port (with PSU connected).
Supports Windows 10 / 8. x / 7 / Vista / XP, Server 2008 R2 32/64-bit, Linux Kernel 2.6. 31, MAC OS 10.7 and Linux Kernel 2.6. 31 or later
Dimensions: 120mm (H) x 96mm (W) x 21.6 mm (T) (approx. )
Weight: 52 gram(approx. )
Working temperature: 0-70°C
This term does not represent actual data rate of 480Mbps, 5Gbps & 3Gbps and simply indicates compliance with USB 2.0, USB 3.0 & SATA II standards. Actual maximum data rate depends on PC configurations, cable conditions as well as connected devices.
Package includes:
1 x 4 Ports USB 3.0 PCI-Express Card
100% Brand New And High quality.
Chipset for Eton EJ198 (FG-EU309A)
Features:
10 times faster than High-Speed USB 2.0
Supports PCI Express x2 Lane interface
Low profile computer casing supported
Specification
Complies with PCI Express Base Specification Revision 2.0
Supports PCI Express x2 Lane interface with throughput up to 10 Gbps
Complies with Universal Serial Bus 3.0 specification Revision 1.0
Backward compatible to USB 2.0 and PCI-Express 1.0
Supports the following data transfer rate:
- USB 2.0 mode up to 480 Mbps*
- USB 3.0 mode up to 5 Gbps*
Supports 3 External and 1 Internal USB ports Max. 5V/900mA power output to each USB 3.0 Port (with PSU connected).
Supports Windows 10 / 8. x / 7 / Vista / XP, Server 2008 R2 32/64-bit, Linux Kernel 2.6. 31, MAC OS 10.7 and Linux Kernel 2.6. 31 or later
Dimensions: 120mm (H) x 96mm (W) x 21.6 mm (T) (approx. )
Weight: 52 gram(approx. )
Working temperature: 0-70°C
This term does not represent actual data rate of 480Mbps, 5Gbps & 3Gbps and simply indicates compliance with USB 2.0, USB 3.0 & SATA II standards. Actual maximum data rate depends on PC configurations, cable conditions as well as connected devices.
Package includes:
1 x 4 Ports USB 3.0 PCI-Express Card
