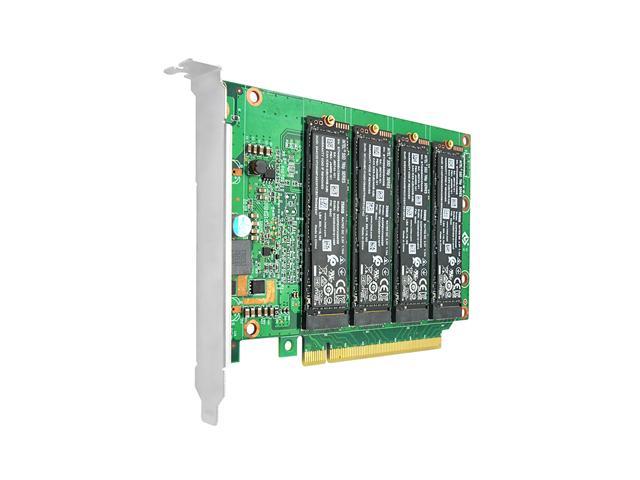

Linkreal 4 Port PCIe 4.0 x16 to M.2 NVMe Adapter PCIe Bifurcation with Heatsink for PC Gaming Support M.2 NVMe SSD in Size 2230, 2242, 2260 and 2280 (SSD not included)
- Need SPLIT PCIe BIOS
- PCIe M.2 NVME Adapter with Heat Sink
- Supports PCIe M.2 NVMe SSDs
- Only for M key M.2 PCIe NVMe SSD
- Equipped with a full-profile bracket and includes a half-height for installation in small form-factor computers
+
+
Overview
Specs
Reviews (2)
Description:
LRNV95NF is a series cards for PCIe 4.0 to M. 2 M key connector. It connects to M. 2 NVMe SSD. which can make full use of the low delay characteristic of PCIE to improve the speed of SSD and increase the number of M. 2 interfaces of host. This card requires SPLIT PCIe on the motherboard to support two M. 2 NVMe hard drives, and BIOS supports PCIe Slot bifurcation.
Parameter:
Product Model: LRNV95NF
Product Name: Quad PCIe 4.0 x16 to M. 2 NVMe Adapter with Heatsink
Interface Type: 4*M.2 Connectors
Support Equipment: 4*M. 2 NVMe SSD for 2230, 2242, 2260 and 2280mm
Host Bus Type: PCIe 4.0 x16
Compatible Drive Types: M. 2 (PCIe, AHCI, M-Key, NGFF)
Drive Connectors: 4* M. 2 (PCIe, AHCI, M-Key, NGFF)
Host Connectors: PCI Express 4.0 x16
Humidity: 15% ~ 90%
Operating Temperature: 5°C to 50°C (41°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Dimension: 106mm*150mm
Heatsink Dimension: 134mm*94mm
Product Weight: 260g
Warranty: 2 Years
WHAT'S IN THE BOX
1 - PCI M. 2 PCIe SSD Adapter
1 - full-profile bracket (installed)
4 - screws&nuts for ssd
4 - screws for heatsink
1 - Heatsink (Black)
1 -Warranty Card
After-Sale Service: Supported by a Linkreal 2-year warranty, this M. 2 PCIe SSD adapter has free lifetime technical support
