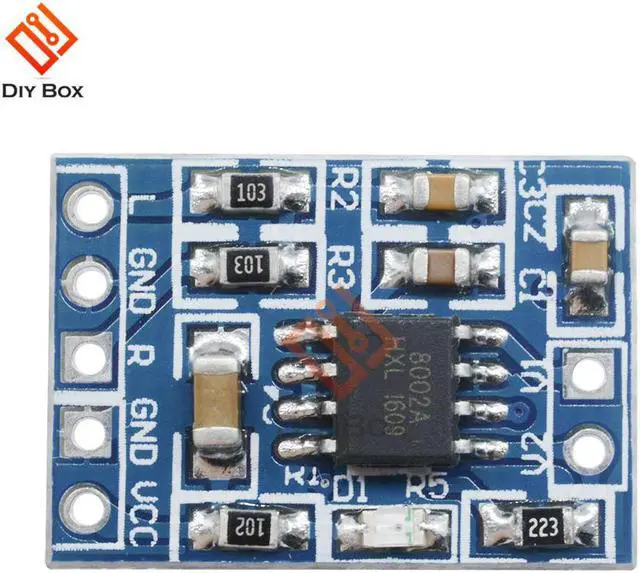

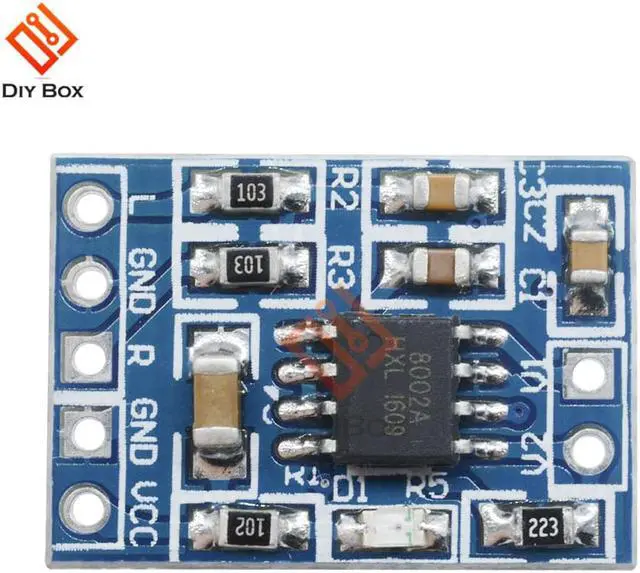

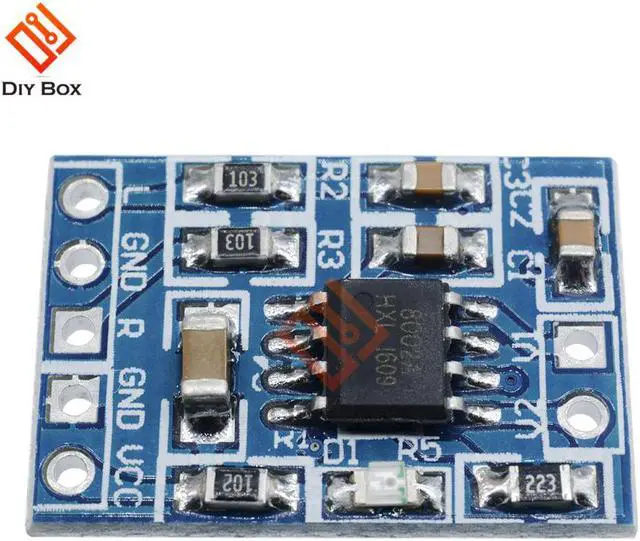

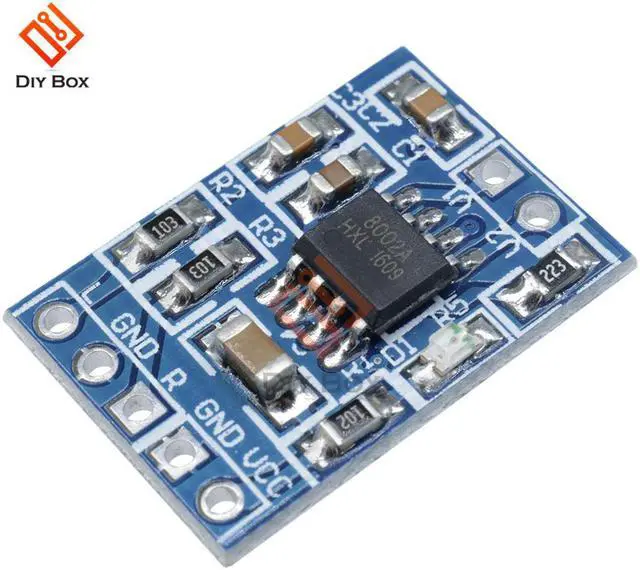

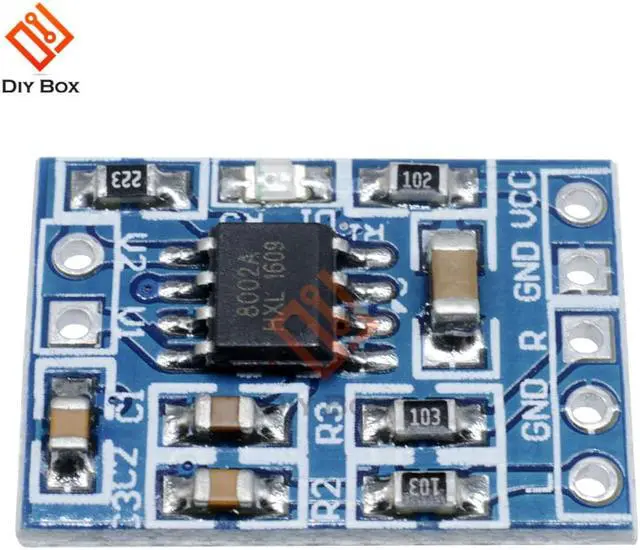

Mini HXJ8002 Mono Amplifier Board module BTL Audio Power Sound Voice AMP Board 2.0-5.5V amplifier for speakers volume control

Certification:NONE
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Speakers
Model Number:HXJ8002 Audio Amplifier Module
Dimensions (WxHxD)):20*14*3mm
Weight:12g
Package:Yes

Mini HXJ8002 Mono Amplifier Board module BTL Audio Power Sound Voice AMP Board 2.0-5.5V amplifier for speakers volume control
This module is ideally suited to adding a bit of amplification to your audio outputs. Connecting your audio inputs and a separate power 2 - 5.5V supply allows you to amplify an audio line in preparation to be connected up to a speaker. This module is ideal for situations where a device is unable to drive with sufficient volume or in instances where an audio signal has been split across multiple outputs, such as using a splitter.
Onboard HXJ8002 single channel 3W, BTL bridge connected audio power amplifier chip.
Operating voltage: 2.0-5.5V.
Standby Current: 0.6uA (typ).
The input signal frequency is 1kHz, 8Ohm load, the average output power under 1W maximum distortion is 0.5%.
In THD + D Less than 10%, input 1KHZ frequency, different load conditions of output power (typical value): 3W (load 3Ohm); 2.5W (load 4Ohm); 1.5W (load 8Ohm).
Model: HXJ8002.
Size: 20*14*3mm(L*W*H).
Weight: 1.1g.
colour: Photo Color
Material: metal
VCC: 2 - 5.5V
GND: 0V
L: Left channel input
GND: 0V Input
R: Right channel input
V1: Speaker connection
V2: Speaker connection
Package Contents:
1pc * Audio amplifier module
