DC5V ESP8266 ESP-01/01S WIFI Relay Module Independent Backplane Relay Module IoT Smart Home Remote Control Relay Module

Certification:NONE
Origin:CN(Origin)
State of Assembly:Almost Ready
Model Number:ESP8266 ESP-01/01S DC5V WIFI relay module separate base plate
Compatibility:Others
Camera Equipped:No

Product selling points
1: Widely used
2: No configuration required, ready to use
3: Low level control
4: Can be used for DIY smart home
5: With relay indicator and reset button

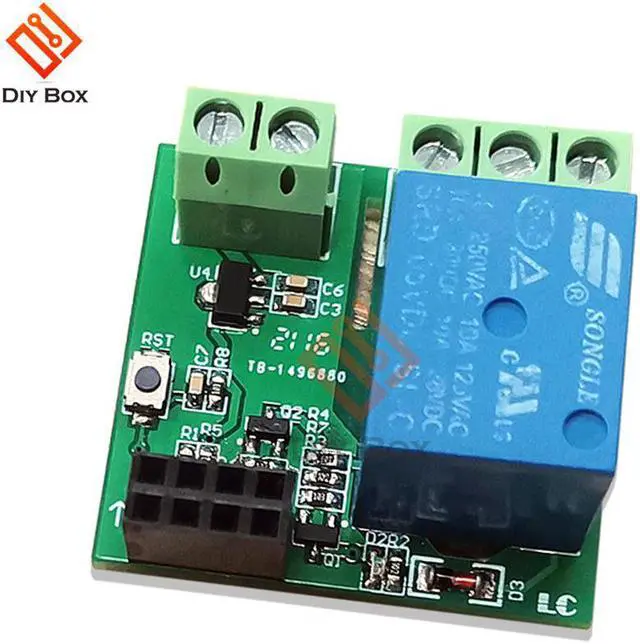

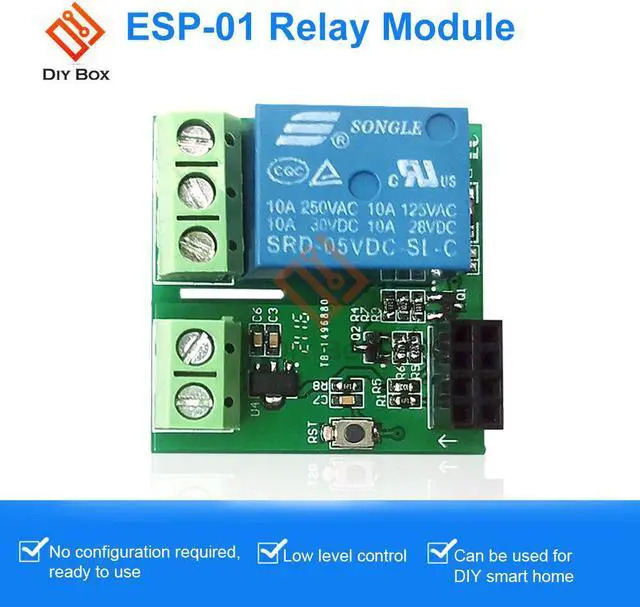

This module takes esp-01 / esp-01s as WiFi module control, which is controlled by mobile phone. It can be used in DIY smart home. It needs no configuration, is ready to use, and is simple and convenient to use.
Functional features
:
1. Module working voltage: DC5V
2. Low level control

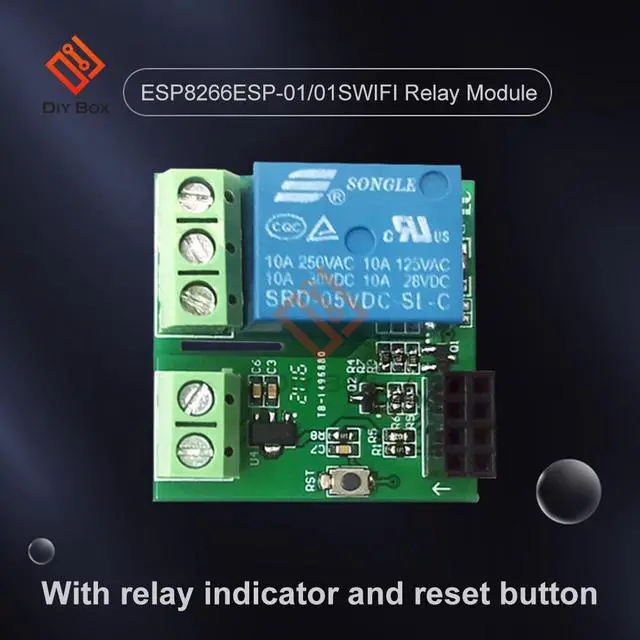

3. It has relay indicator and reset button
4. On board 5V, 10a / 250V AC, 10a / 30V DC relay, which can be pulled in for 100000 times continuously
5. In an open environment, when the mobile phone is mounted on the WiFi module, the maximum stable transmission distance is 100m

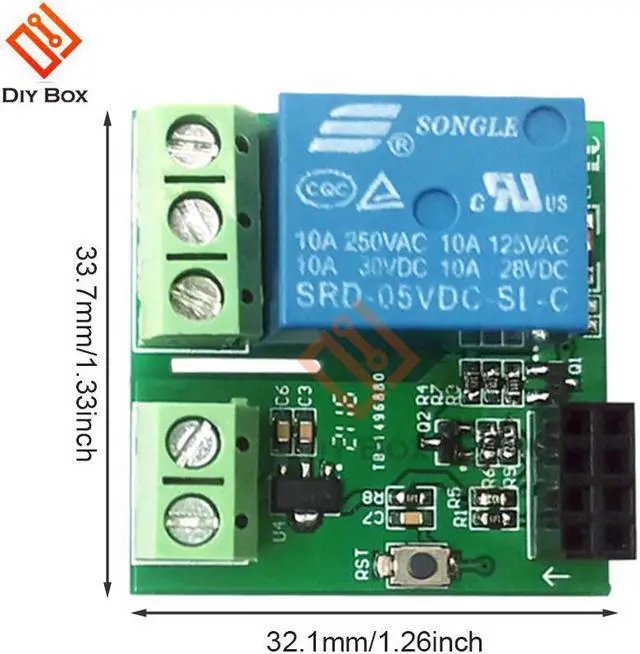

6. Board size: 32.1 * 33.7mm weight: 18g
Package Include:
1 * separate backplane of relay module
