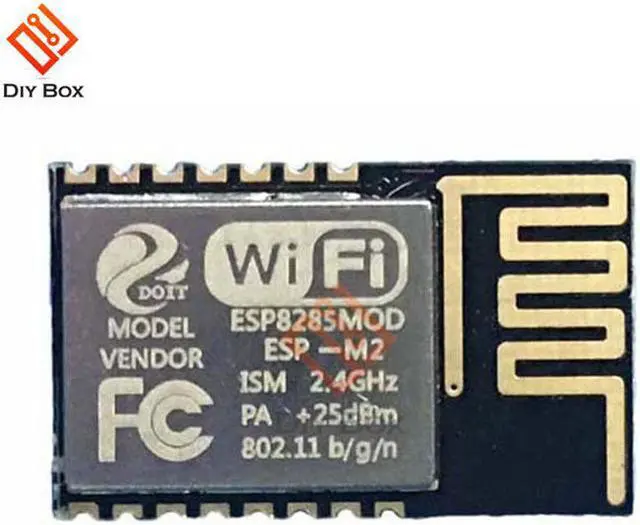

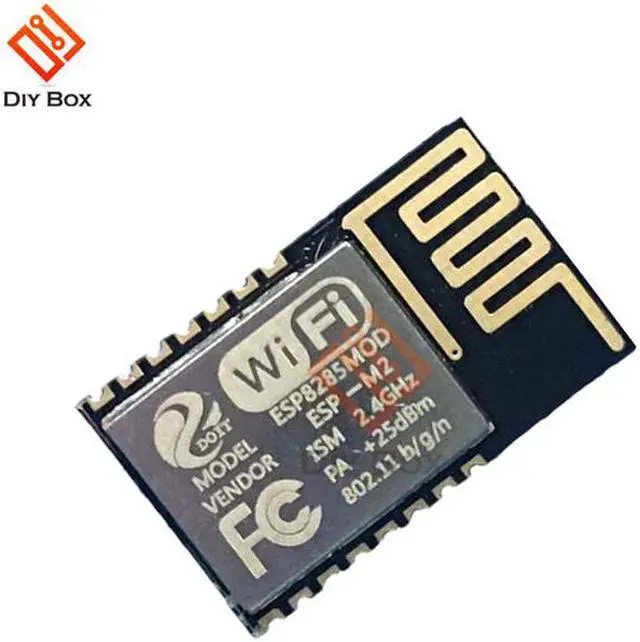

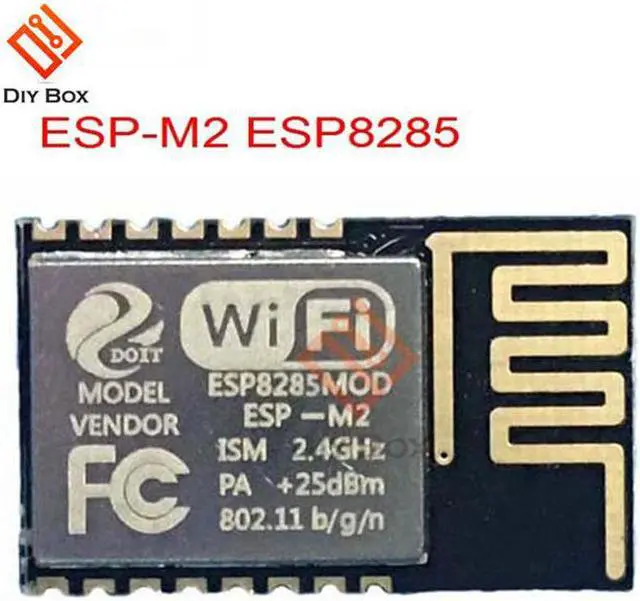

ESP-M2 ESP8285 Serial Port Wireless WiFi Transmission Module DC 3.3V For ESP8266

Demo Board Type:FPGA
Certification:NONE
Origin:CN(Origin)
Model Number:ESP-M2 ESP8285
Intergrated Feature:WiFi 802.11b/g/n

ESP-M2 is encapsulated by the high performance chip ESP8285, which is equal to ESP8266 chip plus 1M Flash. The chip ESP825 is encapsulated a advanced Tensilica's L106 32-bit CPU, together with SRAM. ESP825 has the full and complete WiFi fuction, which can used independently and alsoused as a slaver with other Hoster MCU, which can start directly from the out-built Flash. In addition, the built-in high-speed buffer is benefit for the system performance. Especially, ESP8285 can be used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it is applied to the other MCU design.
Features
Ultra-small size;
Support serial to WiFi;
Wireless transparent transmission;
Long distance transmission with ultra-low power;
Support outboard antenna;
Bearing high temperature to 125 °, compared to the 85° for ESP8266.
Description:
ESP8285=ESP8266+1M Flash, chip feature
1) size is ultra-small
2) serial to WiFi
3) wireless transmission
4) long-range ultra-low power consumption
5) high temperature, up to 125 °
6) fully compatible with ESP8266, the esp8266 source code can be used for esp8285
SOC Features
Built-in Tensilica L106 ultra-low power 32-bit microprocessor, clocked at 80MHz and 160MHz support RTOS
Built-in TCP / IP protocol stack
Built-in 1 channel 10 bit precision ADC
Peripheral Interface HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO
The deep sleep hold current is 10uA and the shutdown current is less than 5uA
Wake up within 2 ms, connect and pass the packet
Standby power consumption less than 1.0mW (DTIM3)
Wi-Fi features
Supports 802.11 b / g / n / e / i
Support Station, SoftAP, SoftAP + STA mode
Support for Wi-Fi Direct (P2P)
Supports CCMP (CBC-MAC, counter mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC hardware acceleration
P2P discovery, P2P GO mode / GC mode and P2P power management
WPA / PA2 PSK and WPS
802.11 i security features: pre-authentication and TSN
Supports 802.11n (2.4 GHz)
802.1h / RFC1042 frame encapsulation
Seamless roaming support
Support AT remote upgrade and cloud OTA upgrade
Support for Smart Config features (including Android and iOS devices)
Module peripherals
2xUART
1xADC
1xEn
1x wakeup pin
1xHSPI
1xI2C
1xI2S
Up to 11xGPIOs
4M bytes of SPI Flash
Operating temperature range: -40 ° -85 °

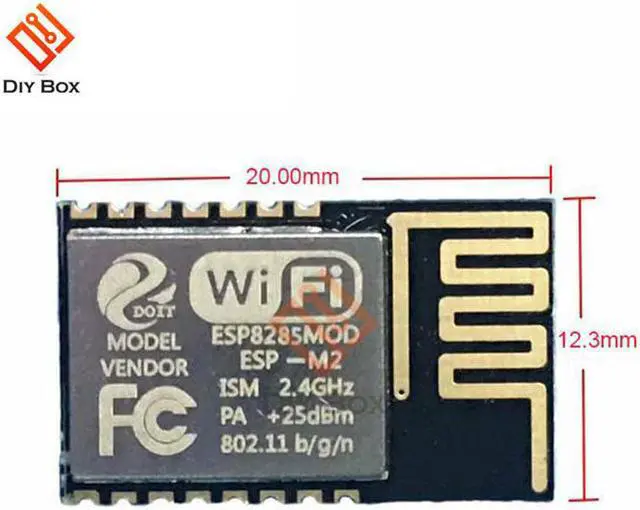

Module size: 12.3mm×20mm
Note:
Power supply oltage is DC 3.3V
IO max output current is 12mA
NRST pin active low, EN enable pin active high RXD to MCU's TXD, TXD to MCU'S RXD
Application
Household appliances
Smart socket, intelligent light
Baby monitor
Sensor Networks
Security ID tag
Wireless positioning system beacon
Home automation
Mesh network
IP camera
Can wear electronic products
Wireless location awareness
Industrial Wireless Control
Package Included:
1 X ESP-M2 ESP8285 Wifi Module
