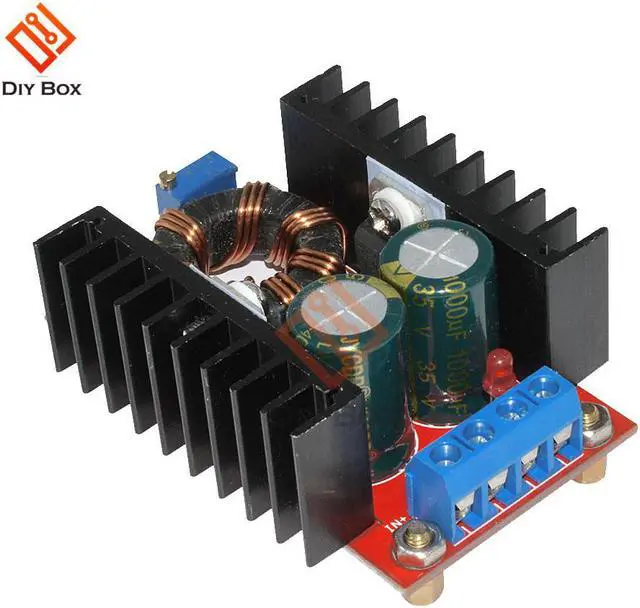

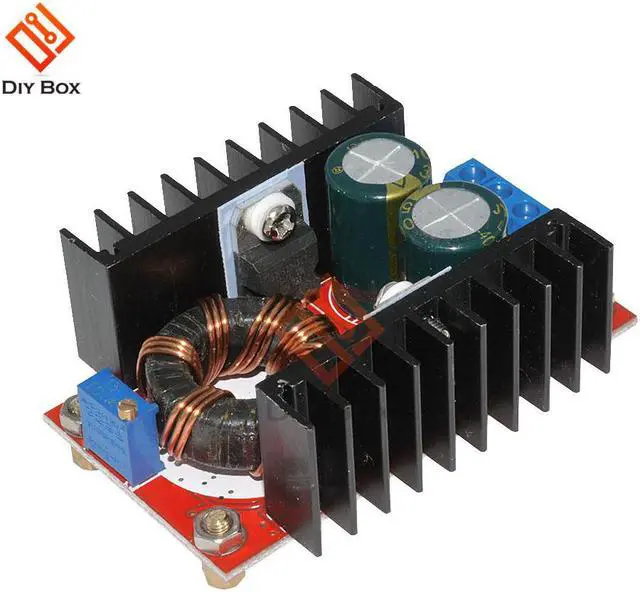

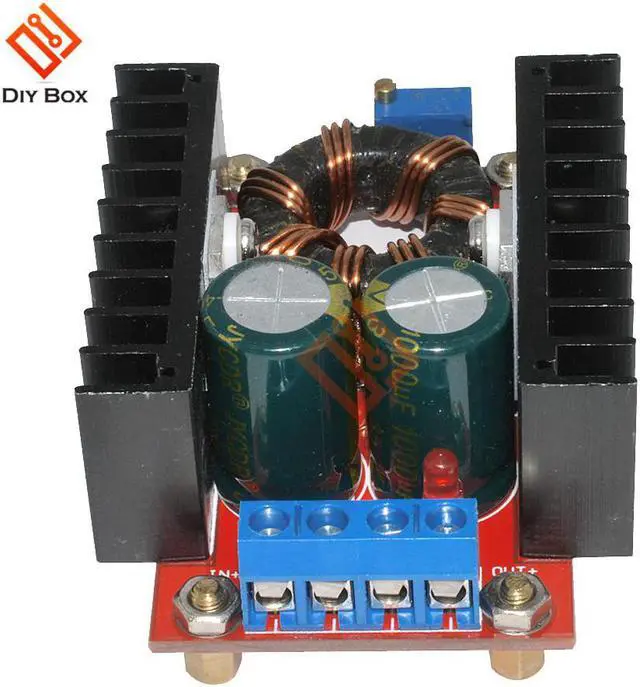

150W DC-DC Boost Converter Step Up Power Transformer Supply Module 10-32V to 12-35V 10A Voltage Charge Board for Arduino Laptop

Origin:CN(Origin)
Usage:Monitors
Output voltage:12-35V
Output Type:DC
model:Step Up Power Converter
use:for Laptop

150W DC-DC Boost Converter Step Up Power Transformer Supply Module 10-32V to 12-35V 10A Voltage Charge Board for Arduino Laptop
Specifications:
Input voltage :10-32V
Output voltage: 12-35V (adjustable)
Output Current: 10A (MAX)
Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V drive 19V 3.42A notebook, the module temperature about 45°c
Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45°c
No-load current: 25mA typical
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Applications:
DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable ly), However, the output voltage can not be less than the input voltage.
Instruction:
Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
Boost charger. You can use the 12V power supply to charge more than 12V, for example, 24V
Package Included:
1 x 150W Step Up Power Coverter for Laptop
