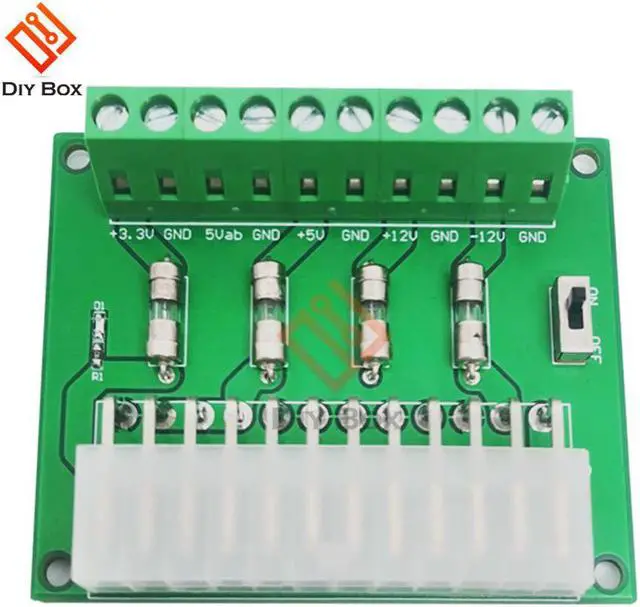

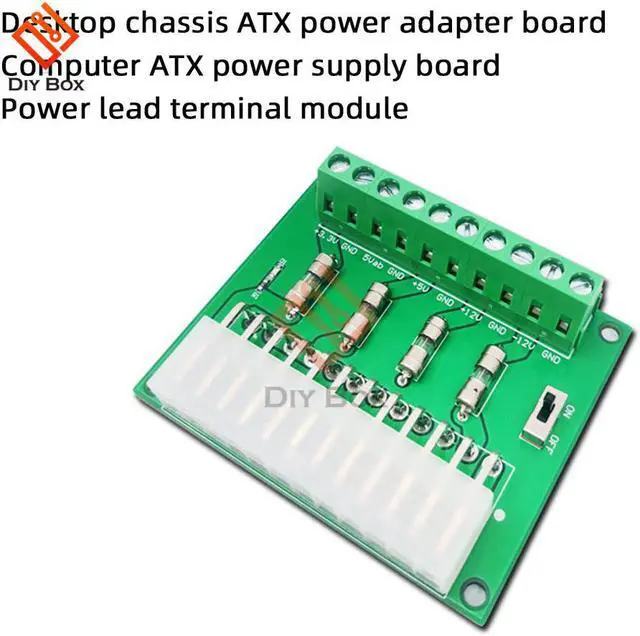

Desktop Chassis ATX Power Adapter Board Computer ATX Power Take Power Board Power Outlet Wiring Module

Origin:CN(Origin)
Model Number:Desktop chassis ATX power adapter board

Features:
1: Widely used
2: The output is controlled by the DIP switch
3: Small size
4: Easy to use
5: Output voltage: +3.3V, 5Vab, +5V, +12V, -12V

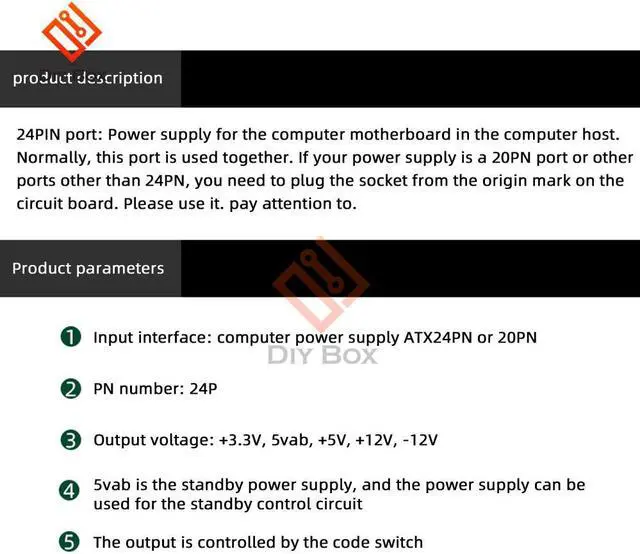

Product description:
24PIN port: Power supply for the computer motherboard in the host computer. Normally, this port is used together. If your power supply is a 20PIN port or other ports other than 24PIN, the socket needs to be plugged from the origin mark on the circuit board. Please use it. pay attention to.
Product parameter
1: Input interface: computer power supply ATX24PIN or 20PIN
2: PIN number: 24P;
3: Output voltage: +3.3V, 5Vab, +5V, +12V, -12V:
4: 5Vab is the standby power supply, which is available when the power is powered on, and can be used for the standby control circuit
5: The output is controlled by the DIP switch

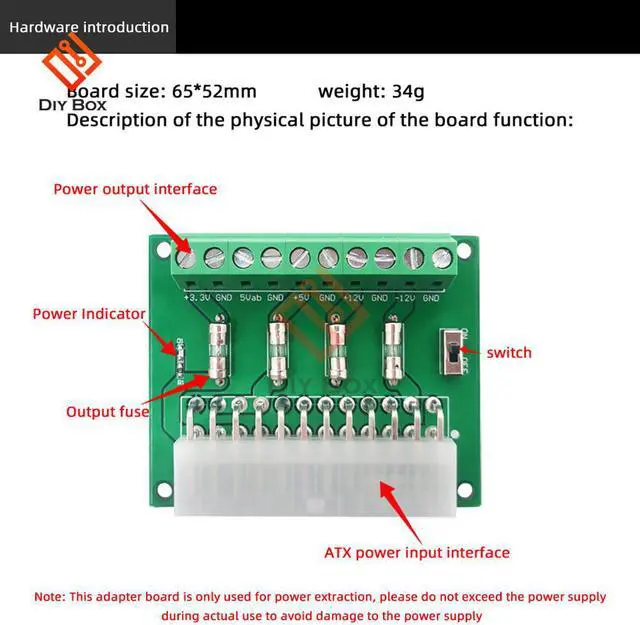

6: Board size: 65*52mm weight: 34g
Package Included:
1* ATX power adapter board
