Switching Power Supply Module DC-DC Non-isolated PCB Input 12-24V Output 12V1A 5V0.1A 100mA 500mA
- Switching Power Supply Module DC-DC Non-isolated PCB Input 12-24V Output 12V1A 5V0.1A 100mA 500mA
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Model Number:DC-DC 12V 24V 12V1A 5V0.1A Switching power supply
Features:
1. Wide voltage input
2. Dual output
3. Industrial grade power supply
4. Pad connection
5. Exquisite and compact appearance
Introduction:

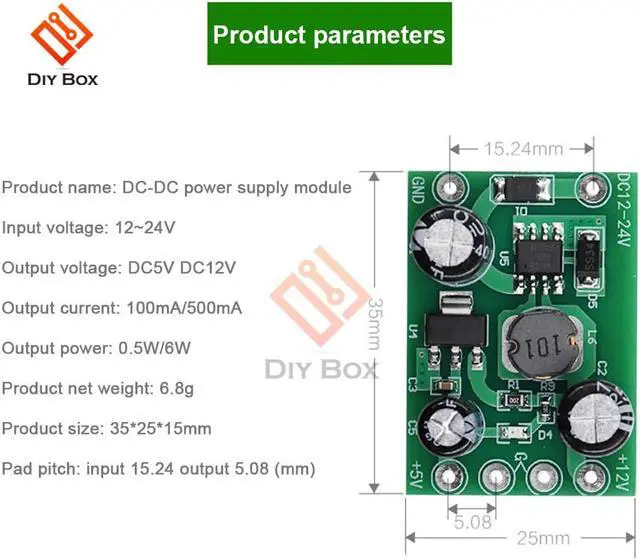

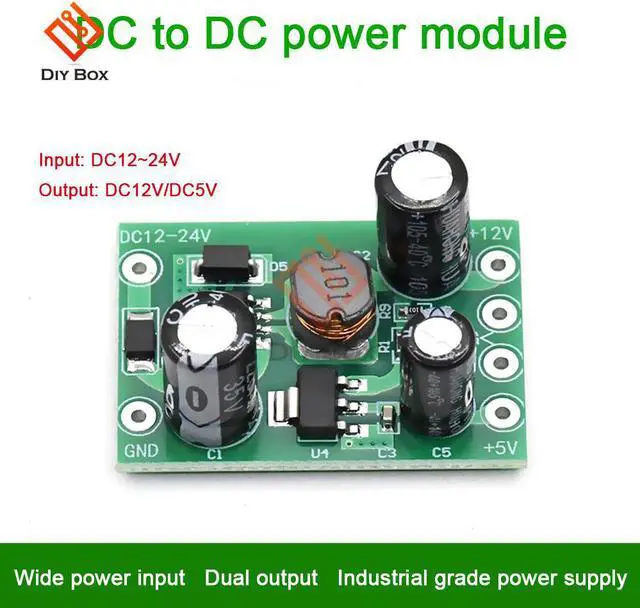

This product is a DC to DC power module with wide power input, dual output and other characteristics; input voltage is DC12~24V, dual output is DC5V and DC12V, maximum output current is 100mA/500mA, maximum power is 0.5W and 6W ; The input and output are connected by pad type and can be used directly, and can also be used with pin headers for welding with other circuit boards.
Instruction:
1. Connect the DC12-24V power supply to the power input terminal, and pay attention to distinguish the positive and negative poles of the power supply.
2. Dual output, 5V and 12V, can be connected to the load matching the output voltage at the same time, pay attention to distinguish the positive and negative poles of the power supply. (As shown below)
Package Included:
1* Power module
Model Number:DC-DC 12V 24V 12V1A 5V0.1A Switching power supply
Features:
1. Wide voltage input
2. Dual output
3. Industrial grade power supply
4. Pad connection
5. Exquisite and compact appearance
Introduction:
This product is a DC to DC power module with wide power input, dual output and other characteristics; input voltage is DC12~24V, dual output is DC5V and DC12V, maximum output current is 100mA/500mA, maximum power is 0.5W and 6W ; The input and output are connected by pad type and can be used directly, and can also be used with pin headers for welding with other circuit boards.
Instruction:
1. Connect the DC12-24V power supply to the power input terminal, and pay attention to distinguish the positive and negative poles of the power supply.
2. Dual output, 5V and 12V, can be connected to the load matching the output voltage at the same time, pay attention to distinguish the positive and negative poles of the power supply. (As shown below)
Package Included:
1* Power module
