Type-C USB Mini Humidifier Driver Circuit Board Atomizer Electronic DIY Kits Fogger Film Mini Oscillating Smart Automation Home

Certification:NONE
Origin:CN(Origin)
State of Assembly:Almost Ready
Model Number:Type-C USB Mini Humidifier DIY Kit
Compatibility:Others
Camera Equipped:No

Features:
1: Widely used
2: Electronic DIY, self-made
3: Household atomizer/humidifier
4:: Simple wiring, easy to understand and understand
5: High safety performance
Description:

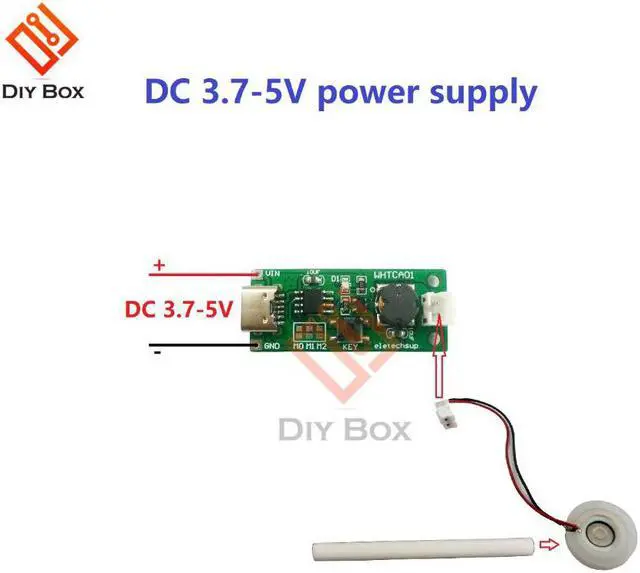

Working voltage: DC 3.7-5.5V (5V recommended)
Working current: 330mA
Standing current: 21uA
Power supply interface: Type-C USB
Humidifier interface: pH2.0 terminal
Frequency: 108kHz
Multiple function modes: uninterrupted work/intermittent work/timed work
Dimensions: 40 x 16.5 x 9 mm
Weight: 4.5 grams
Application:
Smart home, home automation
Household atomizer/humidifier
Electronic DIY
Small USB device

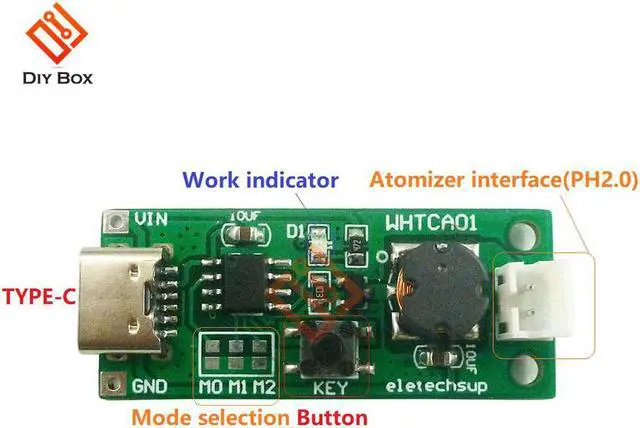

Select different function modes by welding the M2, M1, and M0 ports

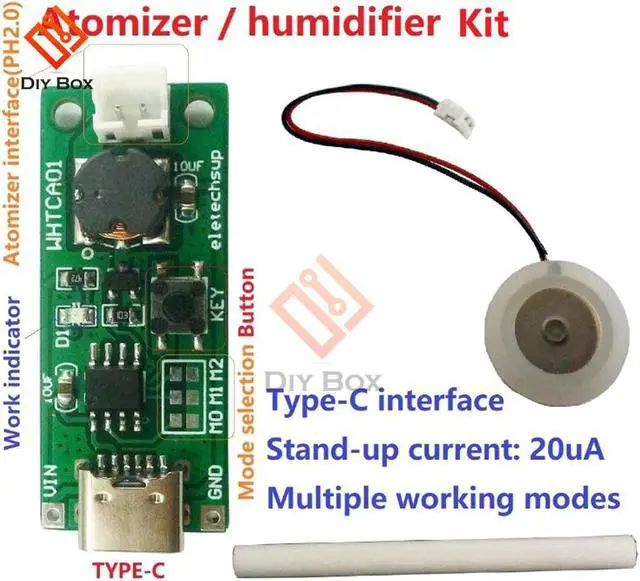

Package Included:
1* TYPE-C atomizer/humidifier controller
1* atomizing film
1* humidifier cotton swab
