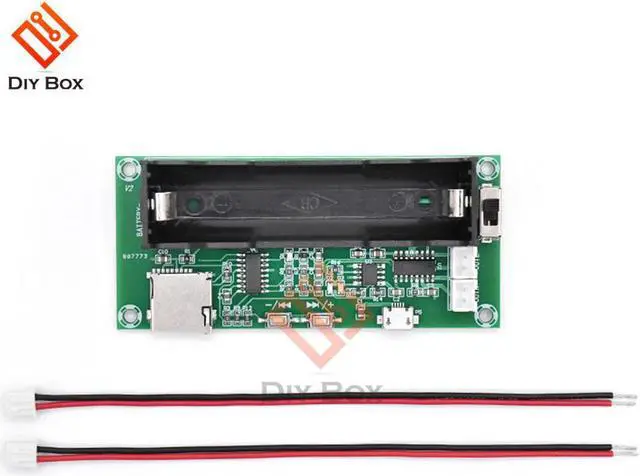

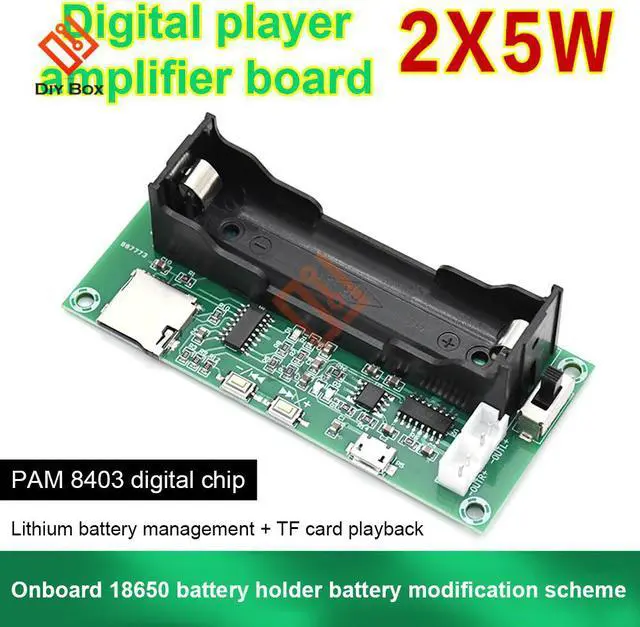

Mini PAM8403 Amplifier Board 5W+5W 2.0 Channel Stereo Audio AMP with 18650 Holder Support TF Card XH-A152 For Speaker
- Mini PAM8403 Amplifier Board 5W+5W 2.0 Channel Stereo Audio AMP with 18650 Holder Support TF Card XH-A152 For Speaker
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Digital-to-Analog Converter (DAC)
Certification:NONE
Type:AUDIO
Package:Yes
Bundle:Bundle 1
Dimensions (WxHxD)):9.30cm*4.20cm*2.50cm
Weight:0.028kg
Model Number:XH-A152 low power TF card decode board PAM8403 power amplifier

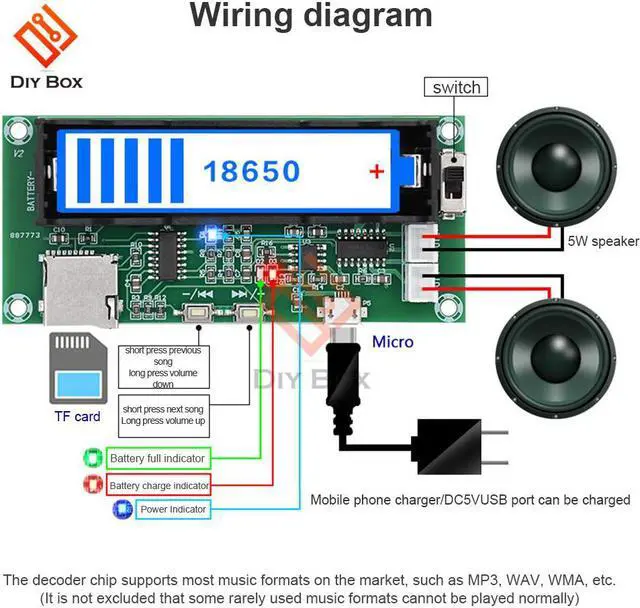

Product selling point:
1. The decoder chip supports most music formats on the market, such as MP3, WAV, WMA, etc.
2. Mobile phone charger/DC5VUSB port can be charged
3. HD digital power amplifier 2X5W
4. Working status display: full indicator, charging indicator, power indicator
5. Can be powered directly or by 18650
Parameter:
Product name: TF card digital player
Chip Type: Class D
Chip model: PAM8403
Supply voltage: DC5V 2A
Standby current: 8~16mA
Output channel: two-channel stereo
Output power: 2*5W (4)
Signal to noise ratio: 80%
Product size: 93*42*25mm
Installation size: 86*35.5mm
Installation aperture: 4mm
Weight: 28g
Package list:
Digital amplifier X1
Compatible Audio & Video Equipment Style:Digital-to-Analog Converter (DAC)
Certification:NONE
Type:AUDIO
Package:Yes
Bundle:Bundle 1
Dimensions (WxHxD)):9.30cm*4.20cm*2.50cm
Weight:0.028kg
Model Number:XH-A152 low power TF card decode board PAM8403 power amplifier
Product selling point:
1. The decoder chip supports most music formats on the market, such as MP3, WAV, WMA, etc.
2. Mobile phone charger/DC5VUSB port can be charged
3. HD digital power amplifier 2X5W
4. Working status display: full indicator, charging indicator, power indicator
5. Can be powered directly or by 18650
Parameter:
Product name: TF card digital player
Chip Type: Class D
Chip model: PAM8403
Supply voltage: DC5V 2A
Standby current: 8~16mA
Output channel: two-channel stereo
Output power: 2*5W (4)
Signal to noise ratio: 80%
Product size: 93*42*25mm
Installation size: 86*35.5mm
Installation aperture: 4mm
Weight: 28g
Package list:
Digital amplifier X1
