Origin:CN(Origin)
Certification:NONE
Usage:Switching
Output voltage:DC-DC 12-24V to 5V 3A
Connection:HW-613
feature:DC-DC 12-24V to 5V 3A Step Down Module

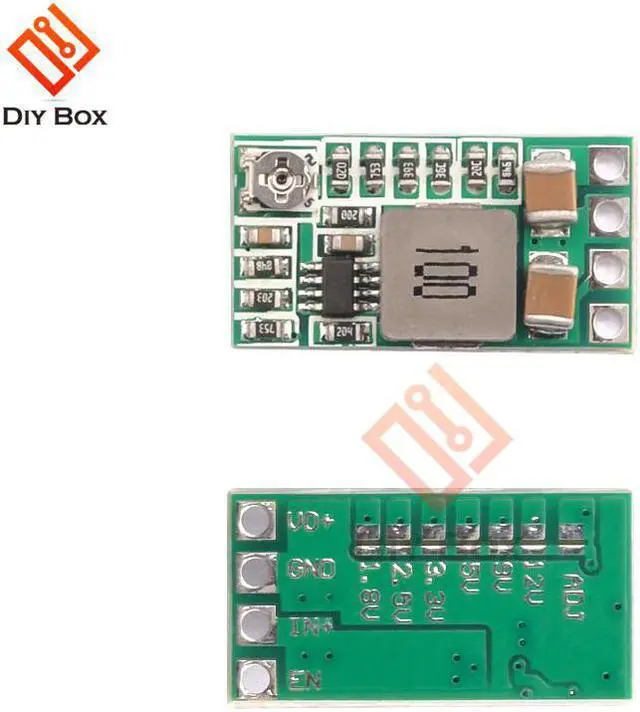

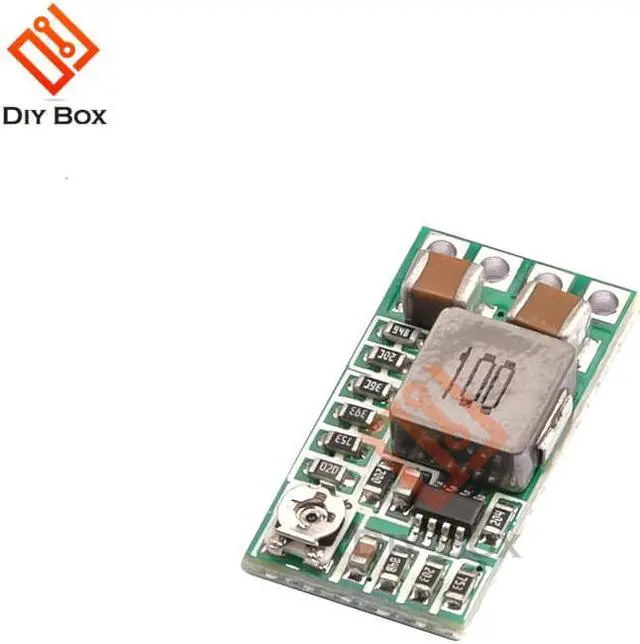

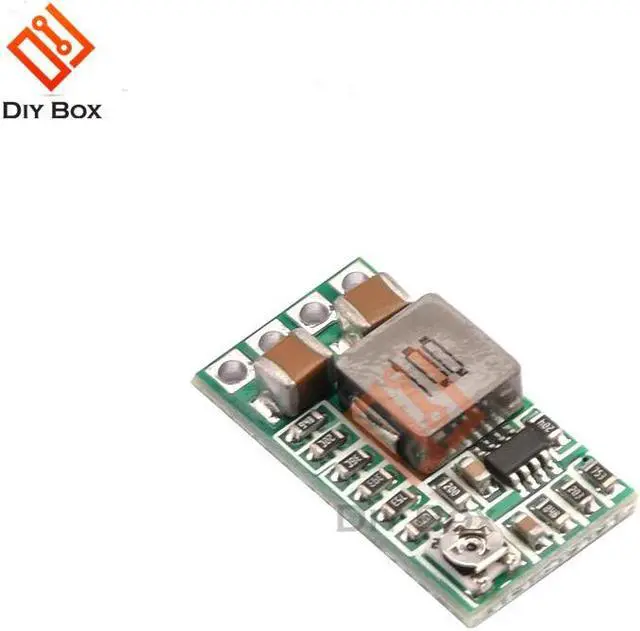

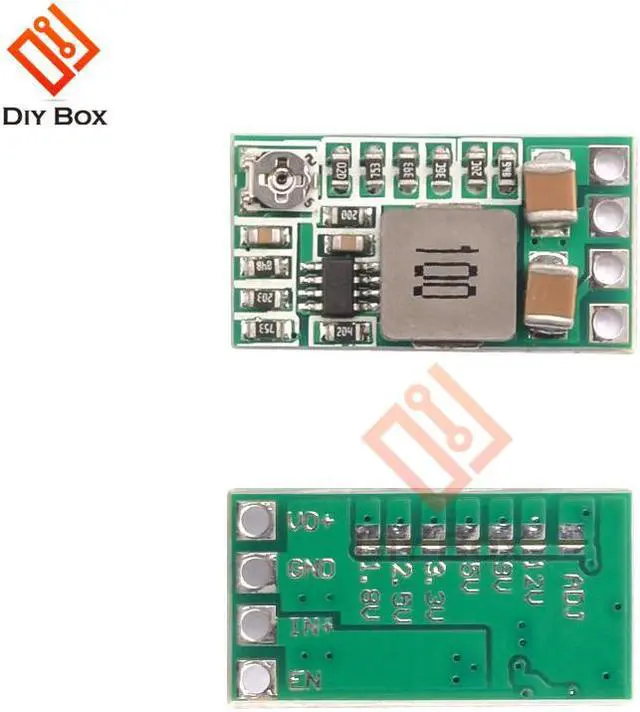

Mini DC-DC 12-24V To 5V 3A Step Down Power Supply Module Voltage Buck Converter Adjustable Efficiency 97.5%
Feature:
Input Voltage: DC 4.5-24V

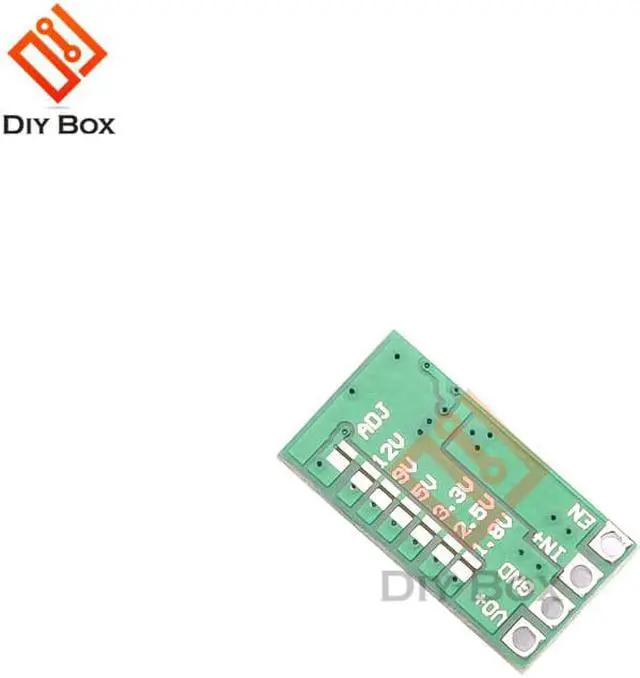

Output Voltage: integration adjustable and fixed output,back side can choose fiexd output voltage
Adjustable Range: 0.8-17V,fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
Output Current: 3A (max),actual testing input 12V output 1.5A
Transform Efficiency: 97.5%(max) (6.5 to 5V 0.7A)
Switch Frequency: 500KHz
Output Ripple Wave: 20mV (12V to 5V 3A) 20m band width
Operating Voltage: -40 Celsius-85 Celsius
Output Overvoltage Protection: no
Static Current: 0.85MA
Load Adjust Rate: plusmn1%
Voltage Adjust Rate: plusmn0.5%
Dynamic Response Speed: 5% 200uS
Output Short Circuit Protection: yes
Input Transposition Protection: no
Enable Control: yes
Connecting Type: soldering
Input Way: soldering
Output Way: soldering/pin
Soldering Hole Space: 2.54mm
Package Included:
5 * Mini DC-DC 12-24V To 5V 3A Adjustable Step Down Power Module Buck Converter
