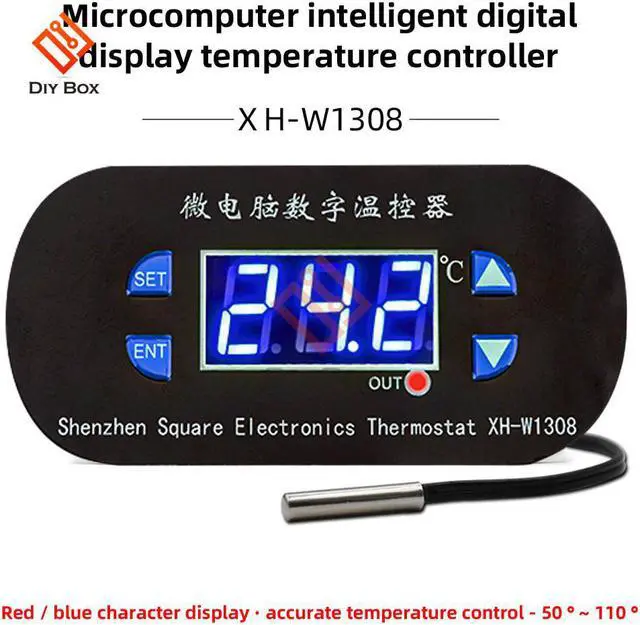

XH-W1308 W1308 Adjustable Digital Cool Heat Sensor Blue Display Temperature Controller Thermostat Switch AC110-220V NTC

Certification:NONE
Origin:CN(Origin)
State of Assembly:Ready-to-Go
Model Number:XH-W1308 W1308 digital display intelligent temperature controller temp
Compatibility:Others
Camera Equipped:No

Features:

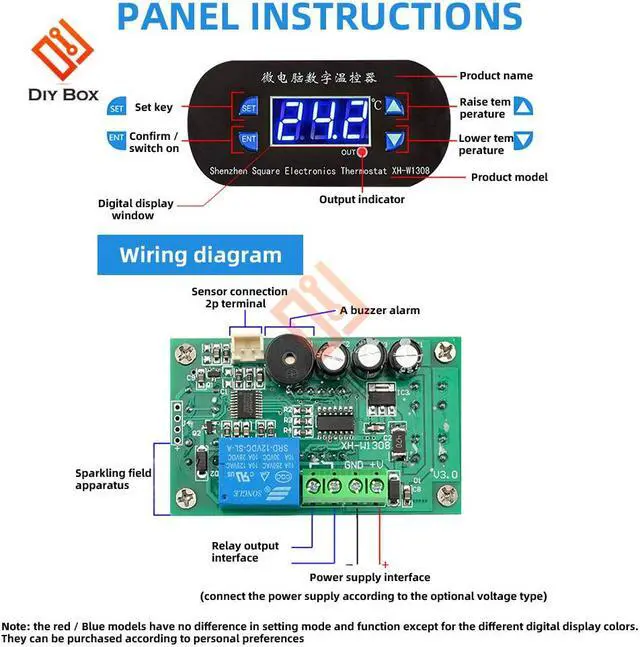

1. Simple panel: the four button button setting is easy to understand and the operation is simple
2. Wide range temperature control: the temperature control range is - 55 - 110 , and the application field is wider
3. Highlight nixie tube: clear and intuitive setting experience
4. Multi voltage selection: multiple voltages can be selected according to the purpose
5. Temperature control alarm: buzzer high temperature alarm is more practical
6. Data lock: set parameter lock function to prevent others from changing at will

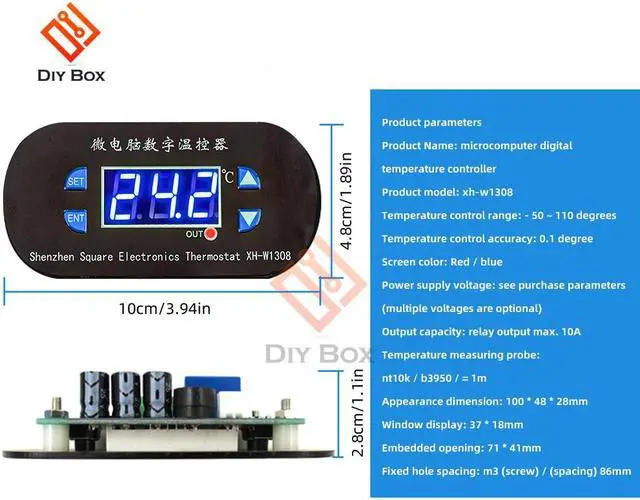

Main parameters:
Product Name: microcomputer digital temperature controller
Product model: xh-w1308
Temperature control range: - 50 ~ 110 degrees
Temperature control accuracy: 0.1 degree
Screen color: Red / Blue optional
Output capacity: relay output max. 10A
Temperature measuring probe: ntc10k / b3950 / L = 1m
Appearance dimension: 100 * 48 * 28mm
Window display: 37 * 18mm
Embedded opening: 71 * 41mm
Fixed hole spacing: m3 (screw) / (spacing) 86mm
Application fields:
Refrigerator zer / display cabinet temperature control / greenhouse / incubator / medical equipment pet room / planting and breeding industry / electric cabinet heat dissipation / container ventilation / climbing pet insulation / EPS incubator / Sauna Room / PC chassis / civil equipment and industrial equipment, etc
Widely used in the field of temperature control, the biggest advantage is exquisite appearance, high performance, high cost performance, universal embedded installation

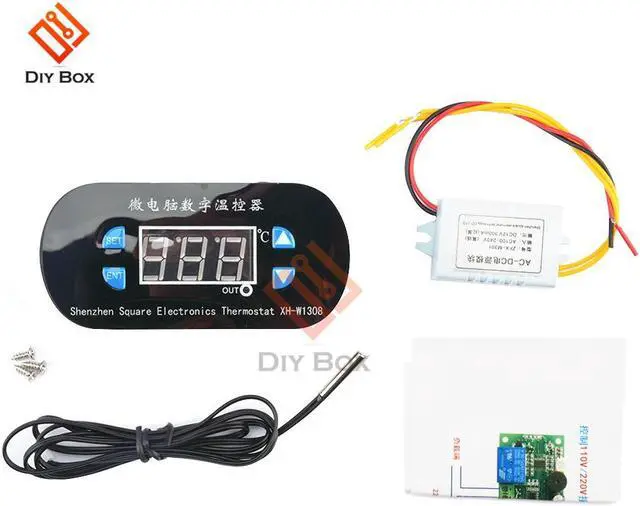

Package Include:
Thermostat * 1
Panel die * 1
Screw package * 1
Power module * 1
Instructions * 1
