DC 5V 5.8G 5.8GHz Microwave Radar Sensor Switch Module ISM Waveband Sensing 12m HFS-DC06 No Interference Board 30mA
- DC 5V 5.8G 5.8GHz Microwave Radar Sensor Switch Module ISM Waveband Sensing 12m HFS-DC06 No Interference Board 30mA
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Certification:NONE
Model Number:DC5V hfs-dc06 microwave radar sensor module
Product Introduction:
1.Model:HFS-DC06
2.Frequency:5.8G
3.Waveband:ISM band
4.Size:39*22*11mm
5.Input Voltage:DC 5V
6.Minimum Input Current:30mA
7.Output Type:High level signal

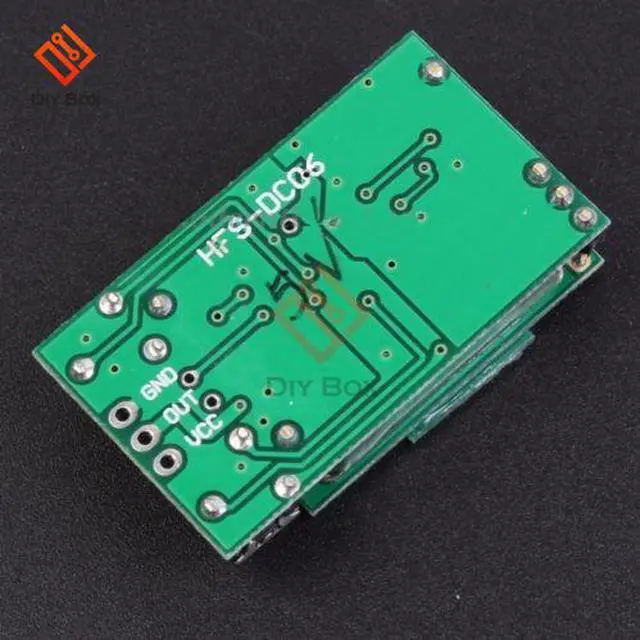

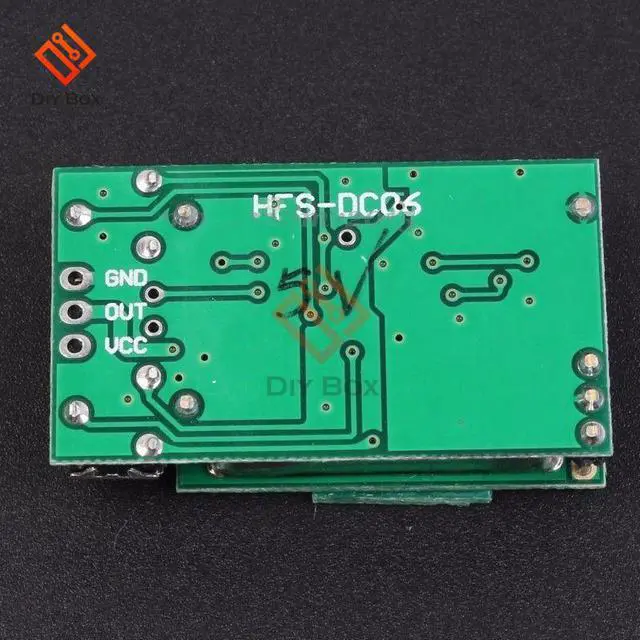

8.Connection Type:VCC connects with power positive,GND connects with negative;GND and OUT connect with level signal outptut
9.Installation Height:2-6m
10.Sensing Distance:right forward 12m
11.Sensing Angle:right forward cone 360 degree
12.Sensing Time:2s
Notice:
1.Please use more than 30mA current power supply to drive this module,and voltage should be stable
2.It is not advisable to install this module by the side of large scale metal,and please don't put it to completely close metal shell,or its performance will be destroyed
Certification:NONE
Model Number:DC5V hfs-dc06 microwave radar sensor module
Product Introduction:
1.Model:HFS-DC06
2.Frequency:5.8G
3.Waveband:ISM band
4.Size:39*22*11mm
5.Input Voltage:DC 5V
6.Minimum Input Current:30mA
7.Output Type:High level signal
8.Connection Type:VCC connects with power positive,GND connects with negative;GND and OUT connect with level signal outptut
9.Installation Height:2-6m
10.Sensing Distance:right forward 12m
11.Sensing Angle:right forward cone 360 degree
12.Sensing Time:2s
Notice:
1.Please use more than 30mA current power supply to drive this module,and voltage should be stable
2.It is not advisable to install this module by the side of large scale metal,and please don't put it to completely close metal shell,or its performance will be destroyed
