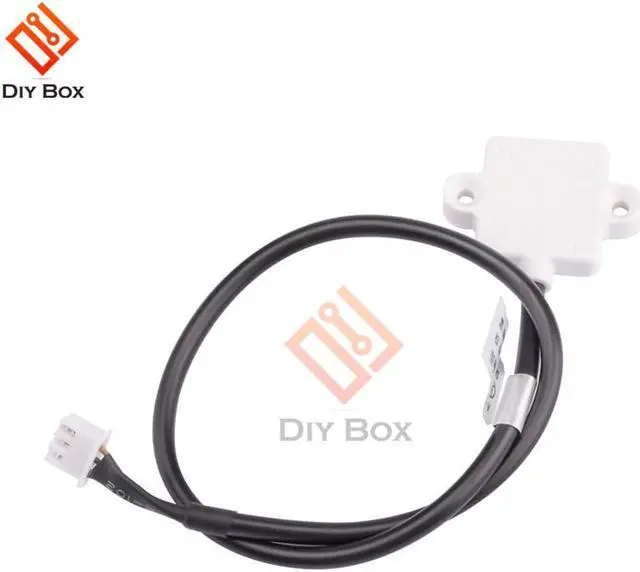

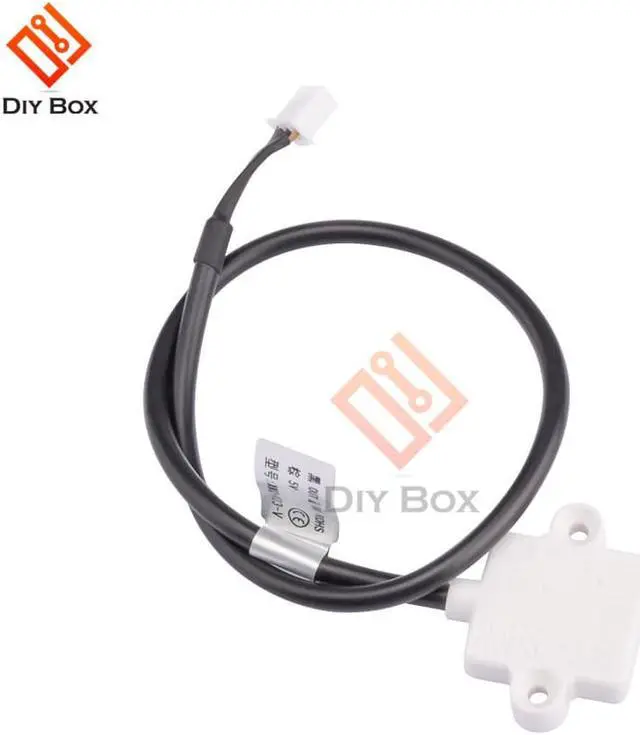

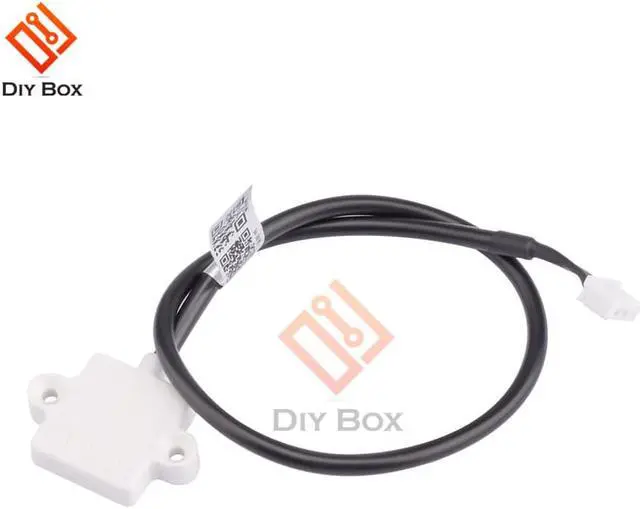

5V Smart Sheung Shui Capacitor Liquid Level Sensor Switch Induction Non-contact Liquid Level Detection

Smart home platform:NONE
Certification:NONE
Origin:CN(Origin)

Features:
1: Widely used
2: High sensitivity
3: Simple installation
4: Small size non-contact liquid level sensor
5: Strong anti-interference ability, from external electromagnetic interference
Product features:
The non-contact liquid level sensor is suitable for the outer wall of non-metallic containers that are not in direct contact with liquid. It will not be corroded by corrosive liquids such as strong acid and alkali, nor will it be affected by scale or other sundries.
The detection is accurate and stable, and the boiling water level can be detected.
Pure electronic circuit structure, non mechanical working mode, stable performance and durability.
High stability, high sensitivity, strong anti-interference ability, from external electromagnetic interference, special treatment for power frequency interference and common mode interference, compatible with 5V power adapter on the market.
Strong compatibility, penetrating all kinds of non-metallic containers, such as plastic, glass, ceramics and other containers, and the sensing distance can reach 5mm;
High and low level output mode, suitable for connecting various circuits and product applications.
Product parameters:
Power supply voltage (VIN): DC5V
Ripple and noise voltage:
Current: 5mA ± 2mA
Output current: 100mA
Response time: 500ms
Operating temperature: - 20 ~ 85
Sensing thickness (sensitivity) range: 15mm
Liquid level accuracy: ± 3mm
Humidity: 100%
Material: pc-v0 fireproof material
Waterproof performance: IP65
Safety standard certification: Ce
Environmental protection certification: rohs-2.0
Conditions:
(1) Input voltage requirements
The input voltage of the non-contact liquid level sensor of this product is DC 5V, and the ripple and noise voltage of the input voltage are required to be less than 100mvp-p. Ripple and noise voltage are the sum of peak voltage of fingerprint wave and peak value of noise} sound. When using this product, the user should first confirm the stability of the power supply voltage, and the ripple and noise voltage are less than 100mvp-p. Unstable power supply voltage or excessive ripple and noise voltage may affect the unstable operation of the sensor.
(2) Sensitivity
The factory setting standard of xkc-y23-npn non-contact liquid level sensor is: measure the water level of 5mm thick acrylic water tank with the sensor at room temperature, the sensor is close to the outer wall of the water tank, the water level line just rises to the position where the horizontal line is aligned with ± 3mm of the center line of the two screw holes of the sensor, and the liquid level of the sensor signal line jumps.
The capacitive liquid level sensor has different water level sensitivity to containers of different materials and thicknesses. The user shall contact the manufacturer before bulk purchase, and the manufacturer can set the factory sensitivity parameters according to the user's different use conditions.
Installation method
Screw fixing installation method
The pasting installation method is shown in the figure, which can be directly pasted on the outer wall of the plastic container.
The pasting materials can be glass adhesive, 704 silica gel, waterproof 3M double-sided tape, etc.
Note:
1. Double sided tape made of foam shall not be used.
2. The material of the container must be insulating material.
3. Try to use uniform materials without interlayer, bubble, water absorption and difficult change of dielectric constant as containers.
Package Include:
1 * liquid level sensor
