Origin:CN(Origin)
Model Number:200W DC-DC high voltage power supply synchronous step-down module
200W DC-DC high voltage power synchronous buck module
8-60V wide voltage input, 1-36V stepless adjustable output
The maximum peak output current 15A
Perfect ultra-efficient circuit design up to 94% Low Ripple
Parameter:
Name: 200W adjustable synchronous buck module
Type: Non-isolated step-down module (BUCK)

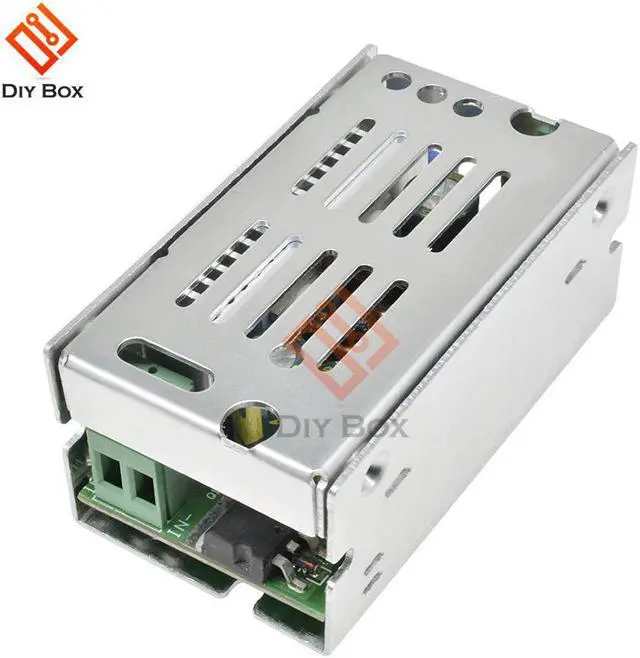

Aluminum housing Size: 70 x 38 x 31mm / 27.5"x15" x12"
Input voltage: 8-60V (limit 60V, please leave allowance)
Output voltage: 1-36V continuously adjustable (the default output 12V)
Output Current: Normal 10A , MAX15A
Output power: natural cooling ventilated long-term power 100W
To enhance heat dissipation up to 200W
Such as long working hours, please note left margin and make the heat rise
Operating temperature: -10 to +85 degrees
Operating frequency: 180KHz
Conversion efficiency: up to 94%
Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)
Reverse polarity protection: (reverse does not burn)

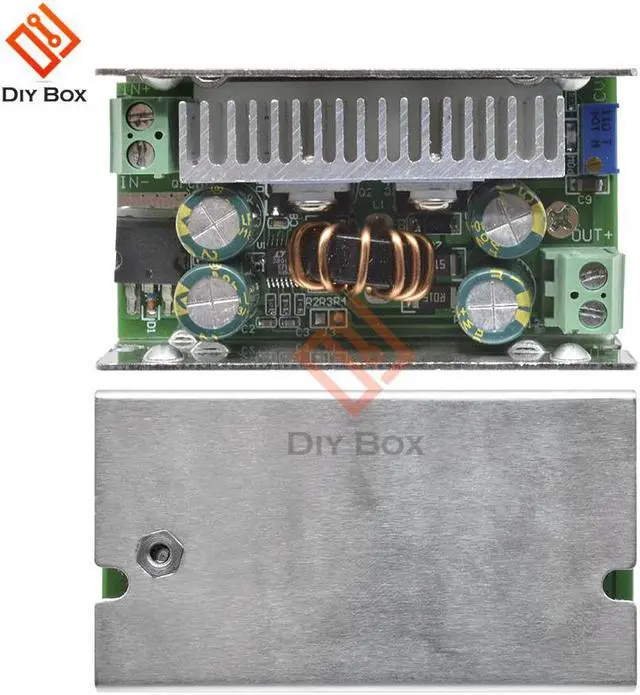

Wiring: high current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative
Package:
1 x Step Down Power Supply Module
