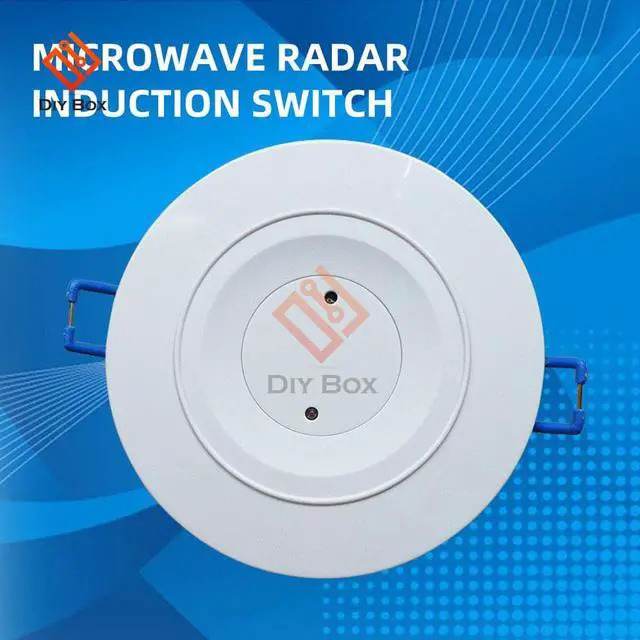

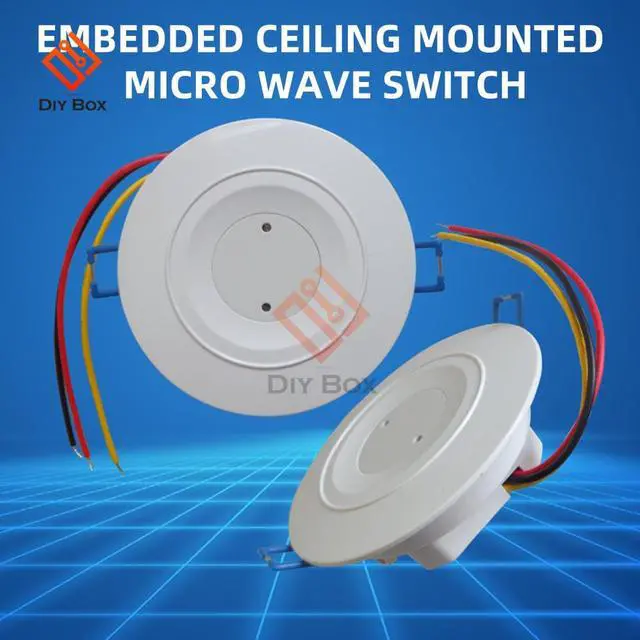

AC 110V-240V 3.7G Embedded Ceiling Microwave Radar Sensor Switch PIR Microwave Radar Body Motion Sensor Module

Origin:CN(Origin)
Smart home platform:NONE
Certification:NONE
Model Number:3.7G embedded ceiling microwave radar sensor switch

Product selling point
1: Wide range of applications
2: good stability
3: Strong anti-interference
4: Wide sensing range
5: High sensitivity
Microwave sensors are active sensors, HF sensors emit high-frequency electromagnetic waves (3.7GHz) and receive their echoes. This sensor detects changes in the echoes and even small movements within its detection range. The microprocessor then triggers a "light on" command. Signals can be detected through doors, glass panes and thin walls.
Good detection when a person or object is moving towards the light!
The high-frequency output of this sensor is less than 10mW, which is only 1% of the transmitting power of mobile phones and microwave ovens.
Description:
This product is a mobile module using 3.7GHz microwave induction, which can effectively detect moving objects. The module has a main control chip with a built-in high-precision algorithm unit, which can effectively filter out environmental interference.
Features:

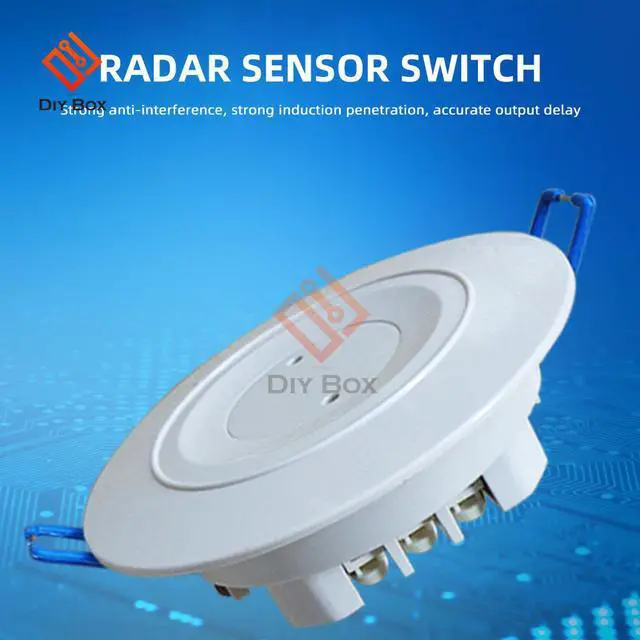

1. Good stability, strong anti-interference, wide sensing range and high sensitivity.
2. The control signal output delay time is adjustable and precise.
3. External photodiode, does not work during the day (adjustable to work during the day).
4. Induction penetration is strong, can penetrate wood, glass, walls, etc., (metal can not penetrate)
5. The light is on when people come, and the light is off when people leave after the delay time.
Parameters:
Product name: microwave sensor
Working voltage: AC 110V ~ 240V (50 ~ 60HZ)
Quiescent current: 30uA
Load power: 10A
Load capacity: control incandescent lamps 1000W, energy-saving lamps / fluorescent lamps 400W, LED lamps 200W
Microwave frequency: 3.7GHz
Sensing angle: 360 degrees
Delay time: 1 second to 330 seconds (adjustable)
Light control range: 7500 LUX (adjustable)
Sensing distance: 15 meters
Operating temperature: -20 °C ~ +50 °C
Scope of application:
It is suitable for automatic lighting of corridors, corridors, toilets, basements, warehouses, garages and other places, automatic ventilation of exhaust fans and automatic control of other electrical appliances.
Installation steps

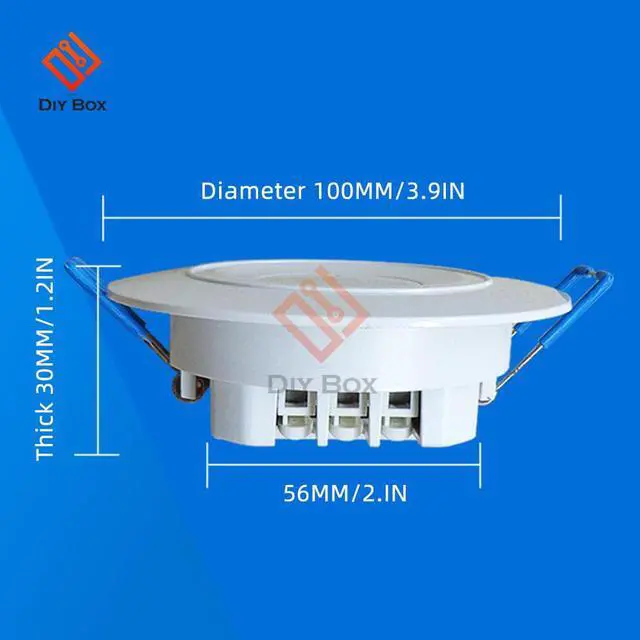

1. Open the hole, use the tool to open the object according to the opening size of the corresponding switch. Please be sure to open the hole according to the opening size. The opening size of this product is 80~85mm2. Correctly follow the connection method of the wiring diagram in the product instructions to connect the switch and Do not handle the wires of the lamp with electricity during installation.
3. Put the spring buckles on both sides vertically, and install the object into the hole to confirm whether the size of the switch and the hole meet the requirements.
4. After confirming the size of the opening and the correct wiring, put down the spring buckles on both sides of the switch, and confirm whether the installation is stable after putting it down.
Package Include:
1*Microwave radar sensor switch
