60W DC-DC Automatic Buck-Boost Vehicle-mounted Voltage Regulator Adjustable Voltage Regulator Power Module

Origin:CN(Origin)
Model Number:DC-DC Automatic Buck-Boost

Product selling point:
1: Wide range of applications
2: Synchronous rectification, automatic buck-boost, 96% high efficiency
3: Overcurrent Protection
4: Short circuit protection
5: Over temperature protection
60W automatic buck-boost module, 5-32V wide input voltage, 1.2-20V adjustable wide output voltage, maximum 5A output current.
Module parameters:
Module name: 5A automatic buck-boost module
Module nature: non-isolated synchronous rectification automatic buck-boost module
Input voltage: 5-32V
Input current: 8A (MAX) within 6A for long-term work
Static working current: 3mA (there will be errors when the working voltage is different)
Output voltage: 1.25-20V continuously adjustable (default output 12V,)
1.25-20V fixed output (for bulk customers)
Default shipment is adjustable output
Output current: 5A (MAX) (within 3A of natural heat dissipation for a long time) If a larger output current is required, two modules can be used in parallel. For example, if the output is 6A, two modules can be used in parallel, and the current of each module can be adjusted to 3.5 A is enough.
Working temperature: -40~+85 degrees
Working frequency: 150KHz
Conversion efficiency: up to 96% (efficiency is related to input, output voltage, current, and voltage difference)
Overcurrent Protection: Yes
Short circuit protection: Yes (input 10A fuse) double short circuit protection, safer to use.
Over-temperature protection: yes (automatically reduce the output voltage after over-temperature)
Input reverse connection protection: no, (if necessary, please connect a diode in series with the input)
Installation method: 4pcs 3mm screw
Wiring method: welding output, (V-IN is input, V-OUT is output)

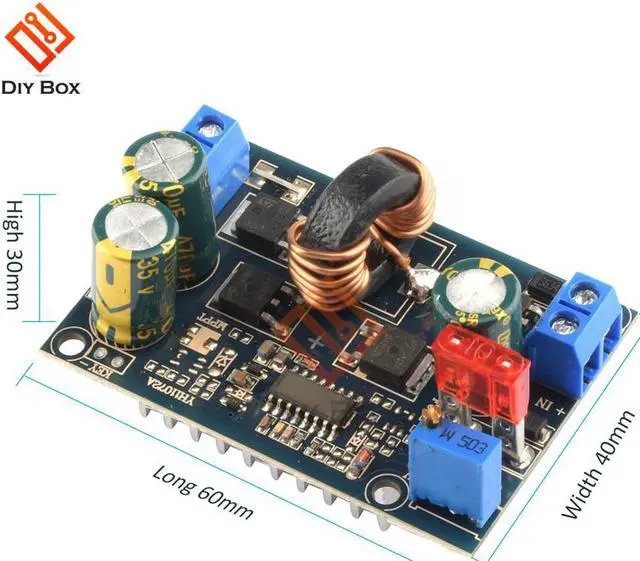

Module size: length 60mm width 40mm height 30mm
Application range:
This module can be used in the fields where the input voltage floats relatively large and the output requirements are relatively stable. Such as:
1. The 12V 10-14V floating voltage is stabilized to 12V output.
2. Provide stable working voltage for your electronic system in a wide voltage input range.
3. The floating voltage output by the solar panel is stably output to the to charge to prevent the from being overcharged.
4. DIY a regulated power supply, the input is 12V, and the output can be adjusted from 12-20V

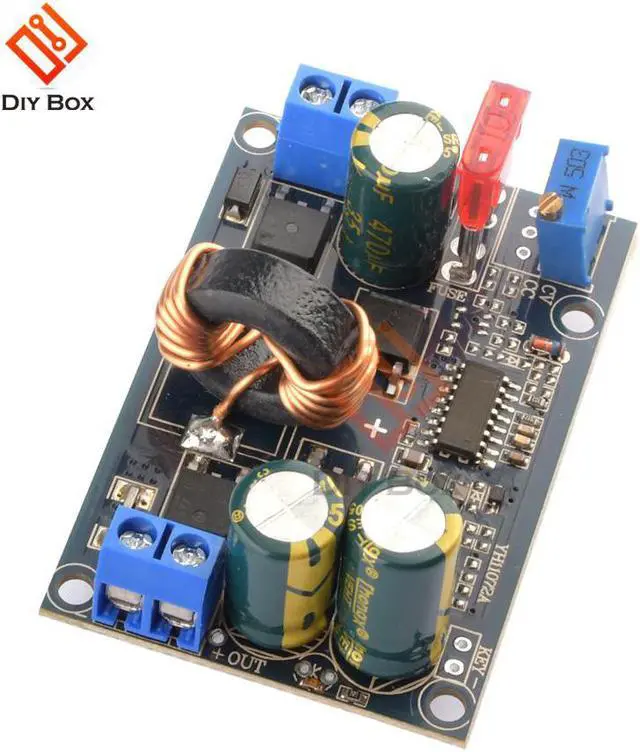

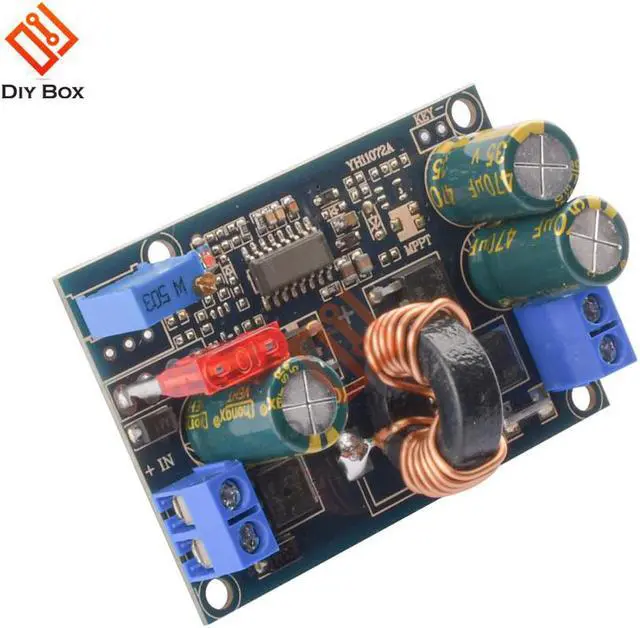

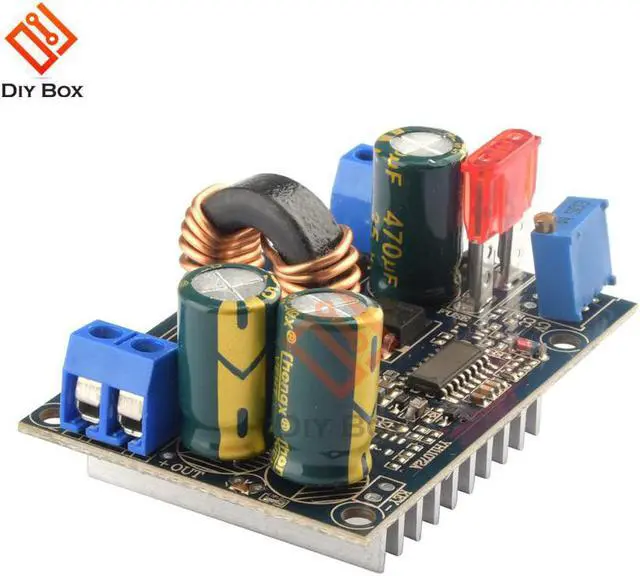

Imported synchronous rectifier chip, high-current low-resistance MOS tube, imported iron-silicon-aluminum magnetic ring, and thickened all-copper enameled wire, make the whole module lower heat, input 470uF/35V high-frequency low-resistance electrolytic capacitor, and output two 470uF/5V Low resistance electrolysis, and lower output ripple. Replaceable fuse, double protection is more reliable.
Package Included:
1* buck-boost power supply module
