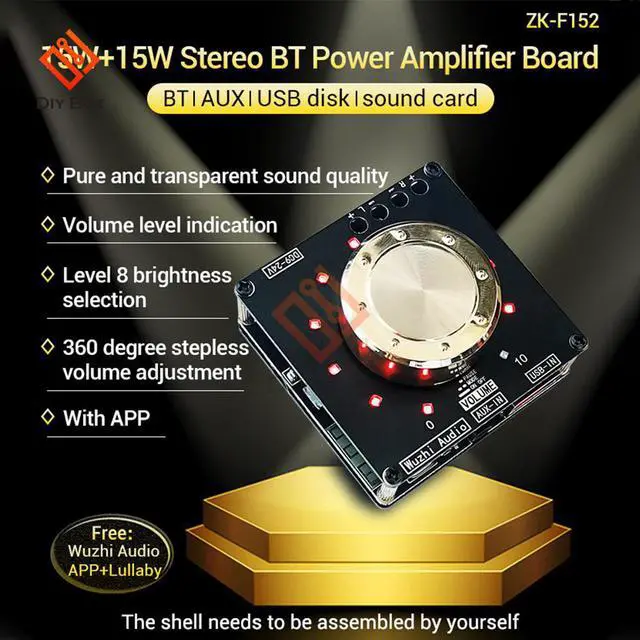

ZK-F152 Cool Volume Indicator Bluetooth Audio Amplifier Board Module 2.0 Dual Channel 15W+15W

Origin:CN(Origin)
Compatible Audio & Video Equipment Style:Amplifier
Bundle:Bundle 1
Dimensions (WxHxD)):5.00cm*5.00cm*3.00cm
Certification:NONE
Model Number:ZK-F152 amplifier board module 2.0 dual channel 15W+15W
Weight:0.072kg
Package:Yes

Product selling point:
1: Support any adjustment of custom 10-segment sound effects to make up for the deficiencies, so that different speakers can achieve better sound effects.
2: 360-degree stepless tuning
3: Exquisite appearance, small size
4: Protection mechanism: overcurrent, short circuit, anti-static protection
5: Support Wuzhi Audio APP. Modify and change the bluetooth name, password setting, volume adjustment of prompt sound, on/off prompt sound, sleep aid, sound effect selection + custom sound effect, U disk playlist.
Model: ZK-F152
Name: 2.0 Channel 15WX2 Stereo Bluetooth Audio Power Amplifier
Bluetooth version: 5.1
Audio input: Bluetooth+AUX+U disk+USB sound card
Audio output: left channel 15W + right channel 15W
Adapter power supply: 9-24V, 2A (can not be connected to AC)
Adapter speaker: 5-30w, 4-8

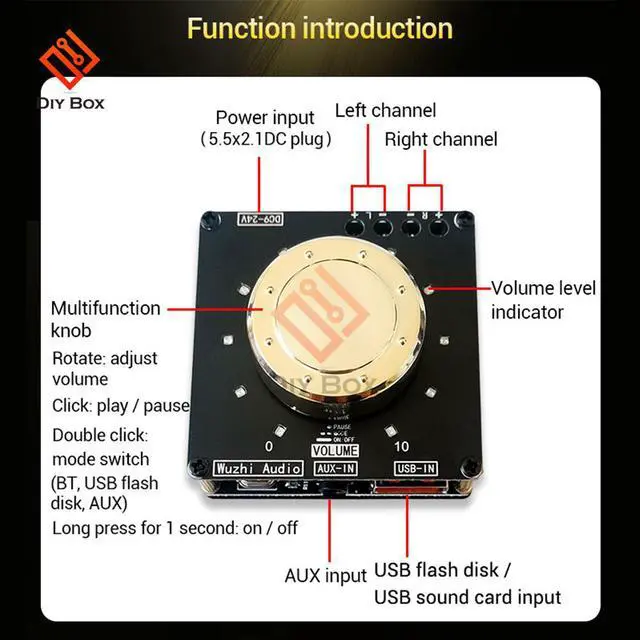

Volume adjustment: multi-function knob, 360-degree stepless tuning, with volume level indication.

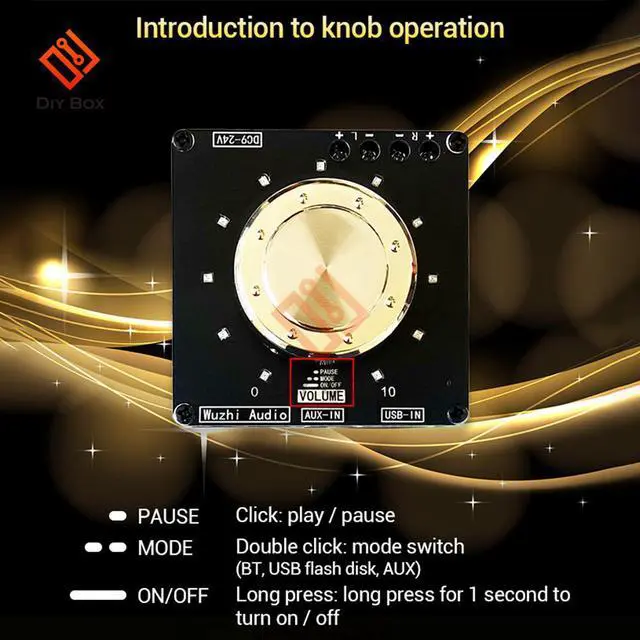

Single click: play/pause Double click: mode switch (Bluetooth/U disk/AUX) long press for 1 second: power on/off Rotation: adjust volume
Protection mechanism: over current, short circuit, anti-static protection
Features: Support Wuzhi Audio APP. Modify and change the bluetooth name, password settings, mention
Sound volume adjustment, on/off prompt sound, sleep aid, sound effect selection + custom sound effect, U disk playlist.
Product size: 50x50x30mm
Product weight: net weight 37g, including packaging 72g
Note: It is recommended to use an 8 speaker and power supply of 9-24VDC without overvoltage.
If driving a 4 speaker, the power supply cannot exceed 12V.
The package includes:
1*ZK-F152 Cool volume indicator Bluetooth audio amplifier board module 2.0 dual channel 15W+15W
